Illumination Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): Illumination Circuit
- Illumination Circuit

DESCRIPTION

Power is supplied to the display and navigation module display and steering pad switch assembly illumination when the light control switch is in the tail or head position.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
The vehicle is equipped with an Supplemental Restraint System (SRS). Before servicing (including removal or installation of parts), be sure to read the precaution notice for Supplemental Restraint System Service Precautions.

PROCEDURE

1. CHECK ILLUMINATION

(a) Check if the illumination for the display and navigation module display, steering pad switch assembly, glove box or others (hazard switch, etc.) comes on when the light control switch is turned to the head or tail position.

Result:





B -- CHECK HARNESS AND CONNECTOR (BATTERY - DISPLAY AND NAVIGATION MODULE DISPLAY)

C -- CHECK HARNESS AND CONNECTOR (BATTERY - RADIO RECEIVER ASSEMBLY)

D -- CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - COMBINATION METER ASSEMBLY)

E -- GO TO LIGHTING SYSTEM How To Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (BATTERY - SPIRAL CABLE SUB-ASSEMBLY)

(a) Disconnect the spiral cable sub-assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT SPIRAL CABLE SUB-ASSEMBLY

(a) Disconnect the steering pad switch assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NOTICE:

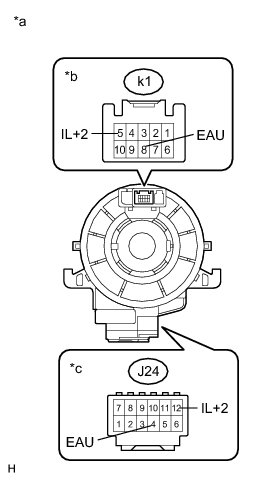

The spiral cable is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Refer to the pages shown in the brackets.

HINT
* Removal Removal
* Installation Installation

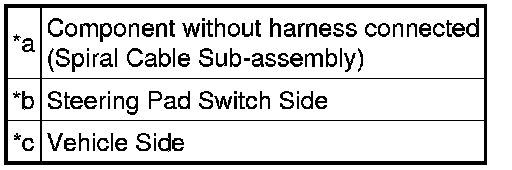

Text in Illustration





NG -- REPLACE SPIRAL CABLE SUB-ASSEMBLY Removal
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE - DISPLAY AND NAVIGATION MODULE DISPLAY)

(a) Disconnect the display and navigation module display connector.

(b) Disconnect the spiral cable sub-assembly connector.

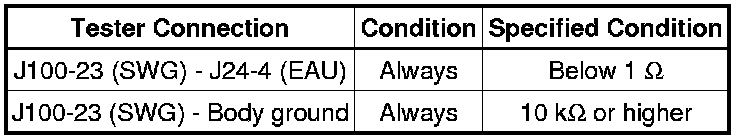

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. INSPECT STEERING PAD SWITCH ASSEMBLY

(a) Disconnect the steering pad switch assembly connector.

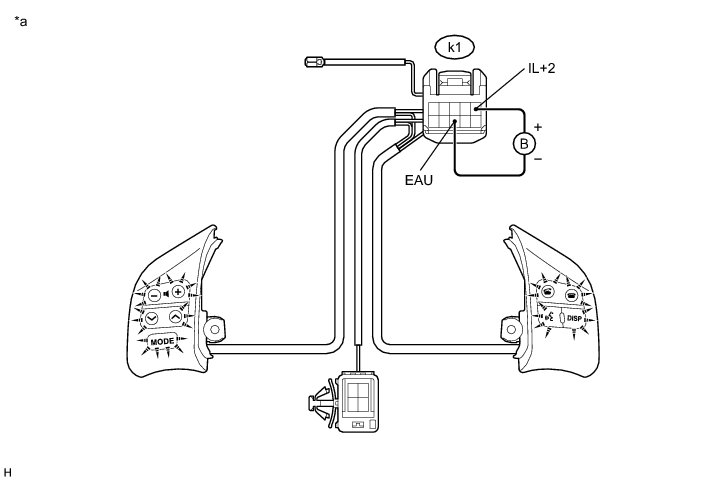

(b) Connect a positive (+) lead from the battery to terminal IL+2 and a negative (-) lead from the battery to terminal EAU of the steering pad switch assembly connector.





(c) Check if the illumination for the steering pad switch assembly comes on.

OK:

Illumination for the steering pad switch assembly comes on.

Text in Illustration





NG -- REPLACE STEERING PAD SWITCH ASSEMBLY Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

6. CHECK HARNESS AND CONNECTOR (BATTERY - DISPLAY AND NAVIGATION MODULE DISPLAY)

(a) Disconnect the display and navigation module display connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

7. CHECK HARNESS AND CONNECTOR (BATTERY - RADIO RECEIVER ASSEMBLY)

(a) Disconnect the radio receiver assembly connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

(a) Disconnect the radio receiver assembly connector.

(b) Disconnect the combination meter assembly connector.

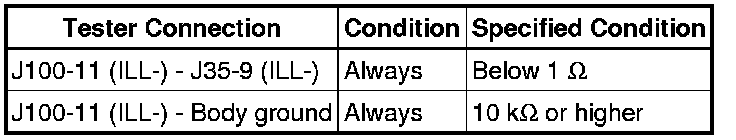

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE RADIO RECEIVER ASSEMBLY Removal

9. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - COMBINATION METER ASSEMBLY)

(a) Disconnect the display and navigation module display connector.

(b) Disconnect the combination meter assembly connector.

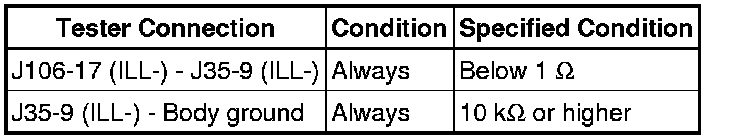

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
