Rear Side Speaker

AUDIO / VISUAL: REAR SIDE SPEAKER: ON-VEHICLE INSPECTION

1. INSPECT REAR SPEAKER

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.

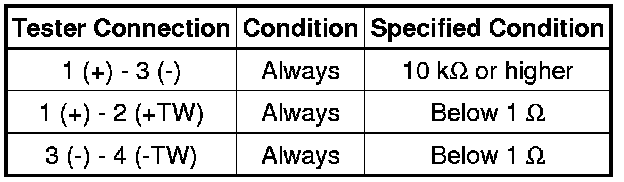

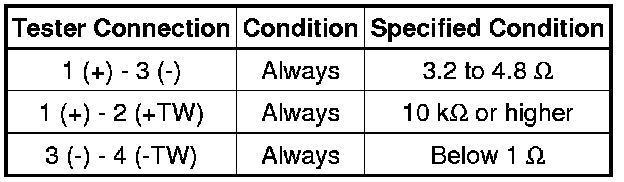

Standard Resistance:

w/o Front Center Speaker:





w/ Front Center Speaker::





If the result is not as specified, replace the speaker.

Text in Illustration





2. INSPECT REAR NO. 2 SPEAKER (w/o Front Center Speaker)

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.





Standard Resistance:





If the result is not as specified, replace the speaker.

Text in Illustration





3. INSPECT REAR NO. 2 SPEAKER (w/ Front Center Speaker)

(a) Measure the resistance of the speaker.





Standard Resistance:





If the result is not as specified, replace the speaker.

Text in Illustration





4. INSPECT REAR NO. 3 SPEAKER (w/o Front Center Speaker)

(a) Measure the resistance of the speaker.





Standard Resistance:





If the result is not as specified, replace the speaker.

Text in Illustration
