Front Side Speaker

AUDIO / VISUAL: FRONT SIDE SPEAKER: ON-VEHICLE INSPECTION

1. INSPECT FRONT NO. 1 SPEAKER

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.





Standard Resistance:

w/o Front Center Speaker:





w/ Front Center Speaker:





If the result is not as specified, replace the speaker.

Text in Illustration





2. INSPECT FRONT NO. 2 SPEAKER

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.





Standard Resistance:

w/o Front Center Speaker:





w/ Front Center Speaker:





If the result is not as specified, replace the speaker.

Text in Illustration





(d) When there is a possibility that either the right or left speaker is malfunctioning, interchange the speakers and perform an inspection. If the malfunction disappears after interchanging the speakers, replace the malfunctioning speaker.

HINT
Connect all connectors to the speakers when performing an inspection. If the result is not as specified, replace the speaker.

3. INSPECT FRONT NO. 3 SPEAKER (w/o Front Center Speaker)

(a) Measure the resistance of the speaker.

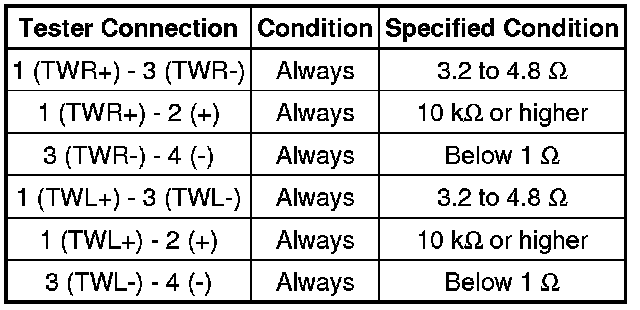

Standard Resistance:





If the result is not as specified, replace the speaker.

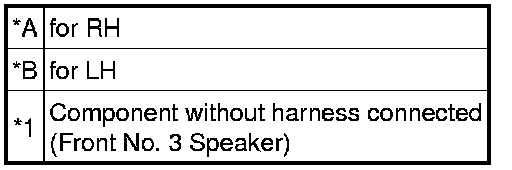

Text in Illustration





(b) When there is a possibility that either the right or left speaker is malfunctioning, interchange the speakers and perform an inspection. If the malfunction disappears after interchanging the speakers, replace the malfunctioning speaker.

HINT
Connect all connectors to the speakers when performing an inspection. If the result is not as specified, replace the speaker.

4. INSPECT FRONT NO. 3 SPEAKER (w/ Front Center Speaker)

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker's cone part or other abnormalities.

(c) Measure the resistance of the speaker.

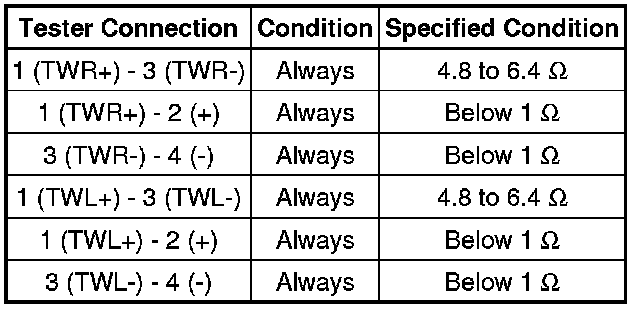

Standard Resistance:





If the result is not as specified, replace the speaker.

Text in Illustration
