Removal

AUDIO / VISUAL: REAR SIDE SPEAKER: REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG Disassembly

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY Disassembly

3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP Disassembly

5. REMOVE REAR SPEAKER ASSEMBLY

(a) Disconnect the connector.





(b) Remove the 3 bolts and the rear speaker assembly.

NOTICE:
Do not touch the cone part of the speaker.

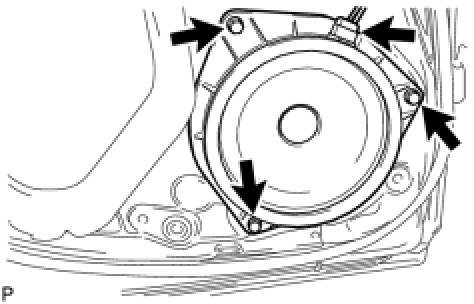

6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

(a) Disengage the speaker connector clamp.





(b) Disengage the 3 claws and remove the rear No. 2 speaker assembly.

NOTICE:
Do not touch the cone part of the speaker.

7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)

(a) Disconnect the connector.





(b) Remove the 2 bolts and the rear No. 3 speaker assembly.

NOTICE:
Do not touch the cone part of the speaker.
