Installation

AUDIO / VISUAL: REAR SIDE SPEAKER: INSTALLATION

1. INSTALL REAR SPEAKER ASSEMBLY

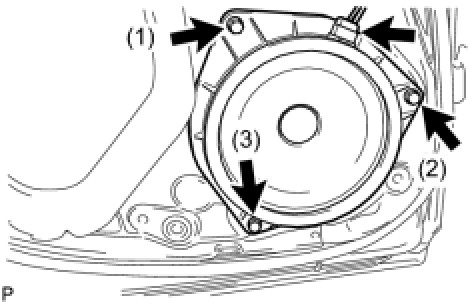

(a) Engage the 2 claws as shown in the illustration to temporarily install the rear speaker assembly.





(b) Install the rear speaker assembly with the 3 bolts.





HINT
Install the bolts in the order shown in the illustration.

(c) Connect the connector.

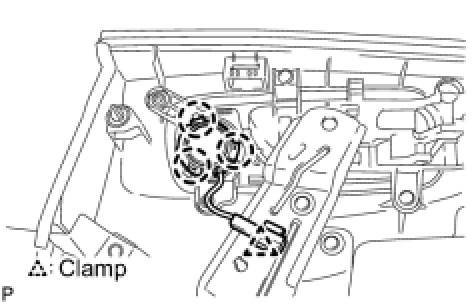

2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY

(a) Engage the 3 claws and install the rear No. 2 speaker assembly.





(b) Engage the speaker connector clamp.

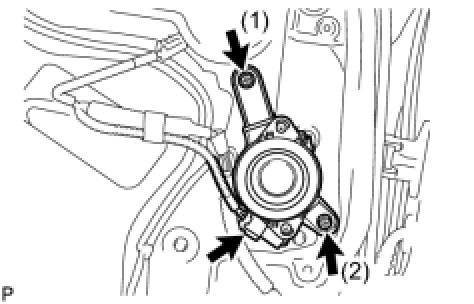

3. INSTALL REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)

(a) Install the rear No. 3 speaker assembly with the 2 bolts.





HINT
Install the bolts in the order shown in the illustration.

(b) Connect the connector.

4. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP Reassembly

5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY Reassembly

7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG Reassembly
