Installation

AUDIO / VISUAL: FRONT SIDE SPEAKER: INSTALLATION

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

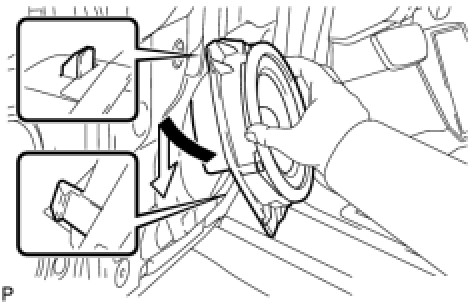

(a) Engage the 2 claws as shown in the illustration to temporarily install the front No. 1 speaker assembly.





(b) Install the front No. 1 speaker assembly with the 3 bolts.





HINT
Install the bolts in the order shown in the illustration.

(c) Connect the connector.

2. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

(a) Install the front No. 2 speaker assembly to the cover.

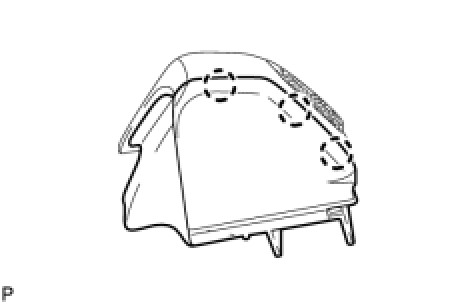

(b) Engage the 3 claws and install the cover.

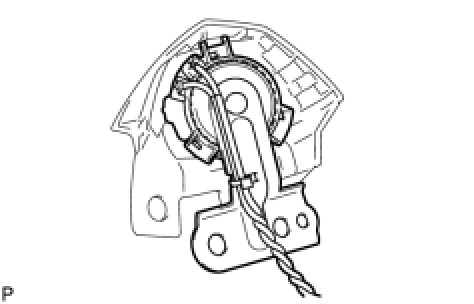

(c) Install the front No. 2 speaker assembly w/ cover with the 3 screws.





(d) Engage the 2 clamps.

3. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

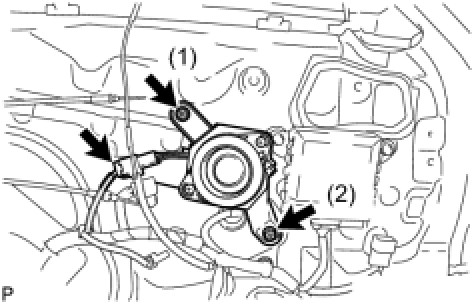

(a) Install the front No. 3 speaker assembly with the 2 bolts.





HINT
Install the bolts in the order shown in the illustration.

(b) Connect the connector.

4. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP Reassembly

5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

6. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly

7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly
