Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Audio and Visual System (W/O Navigation System Without Multi-Display)

Audio and Visual System (W/O Navigation System Without Multi-Display)

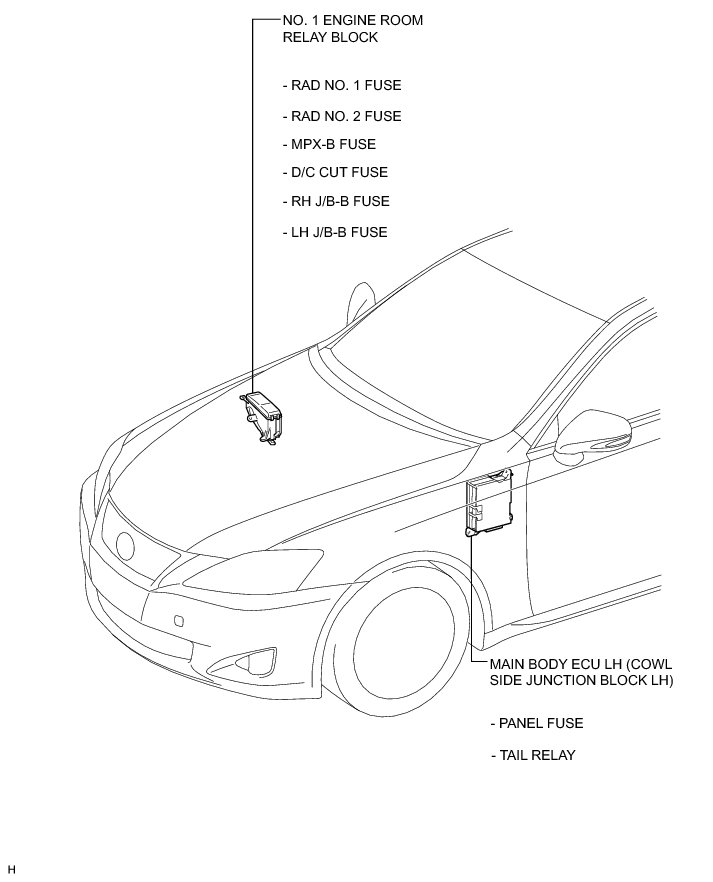

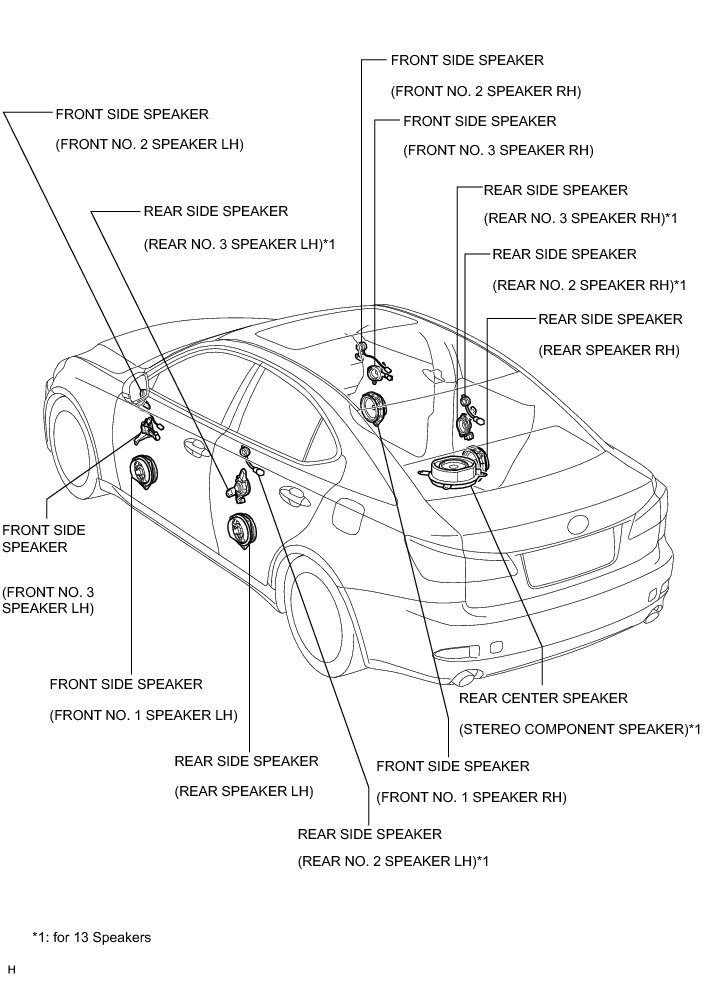

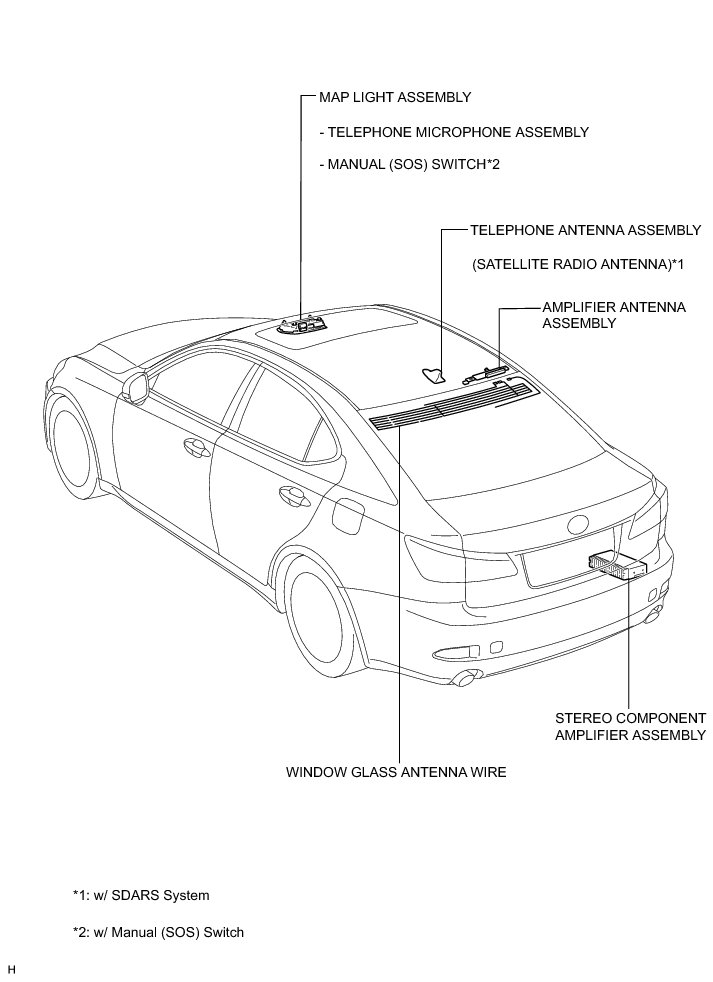

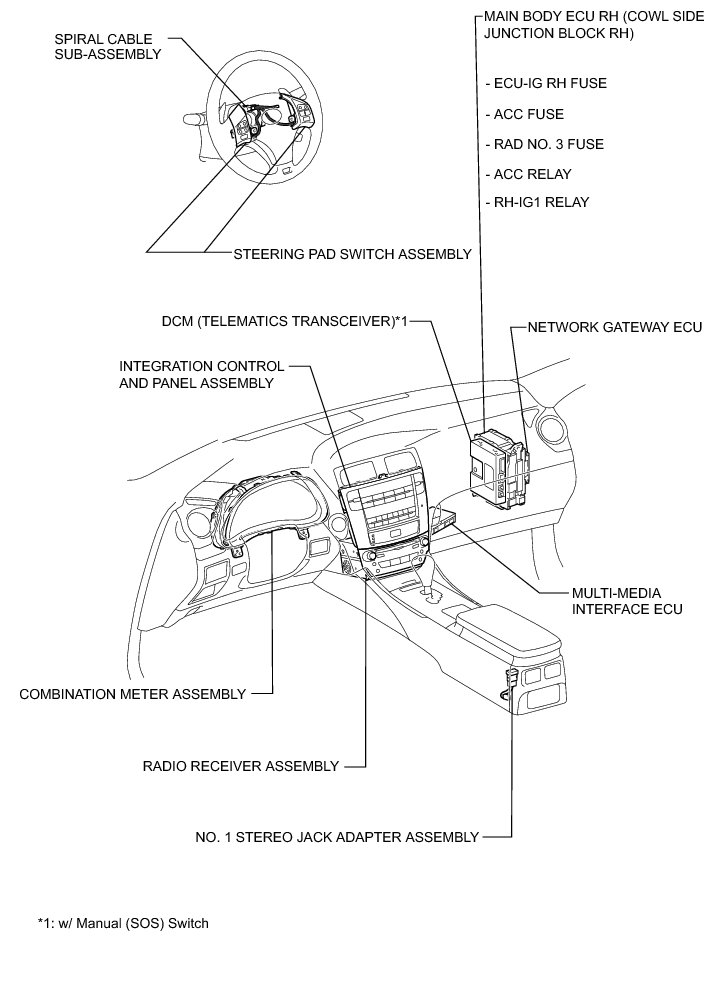

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): PARTS LOCATION
