Audio and Visual System (W/O Navigation System With Multi-Display)

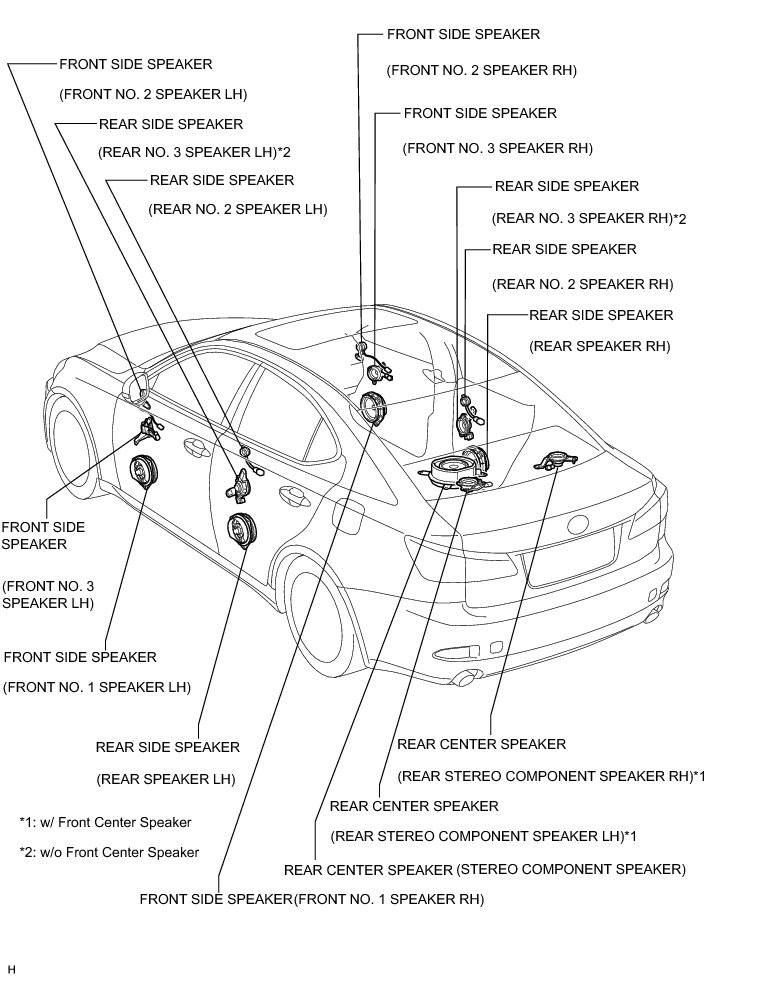

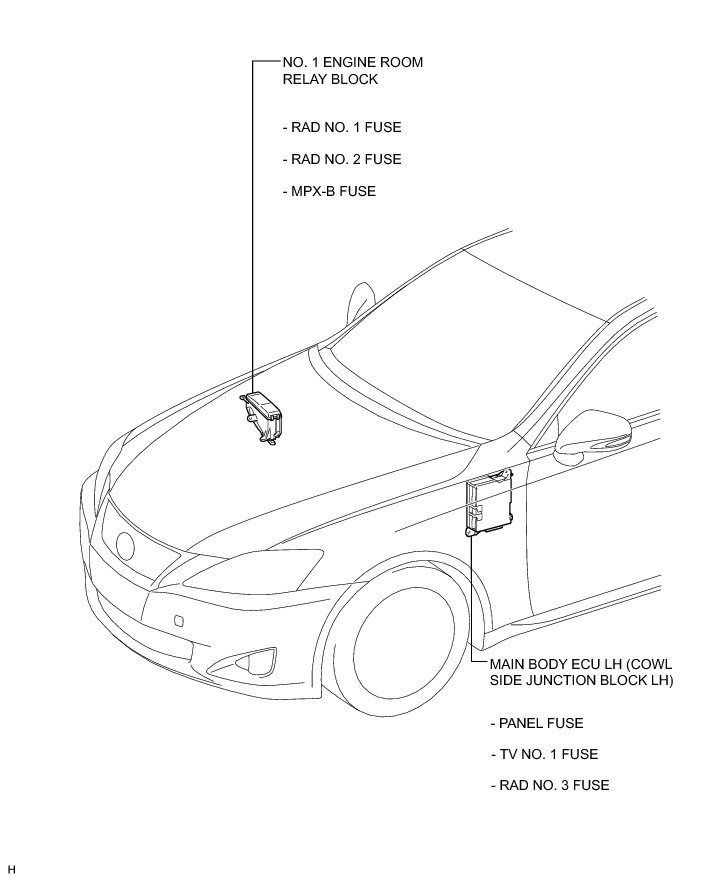

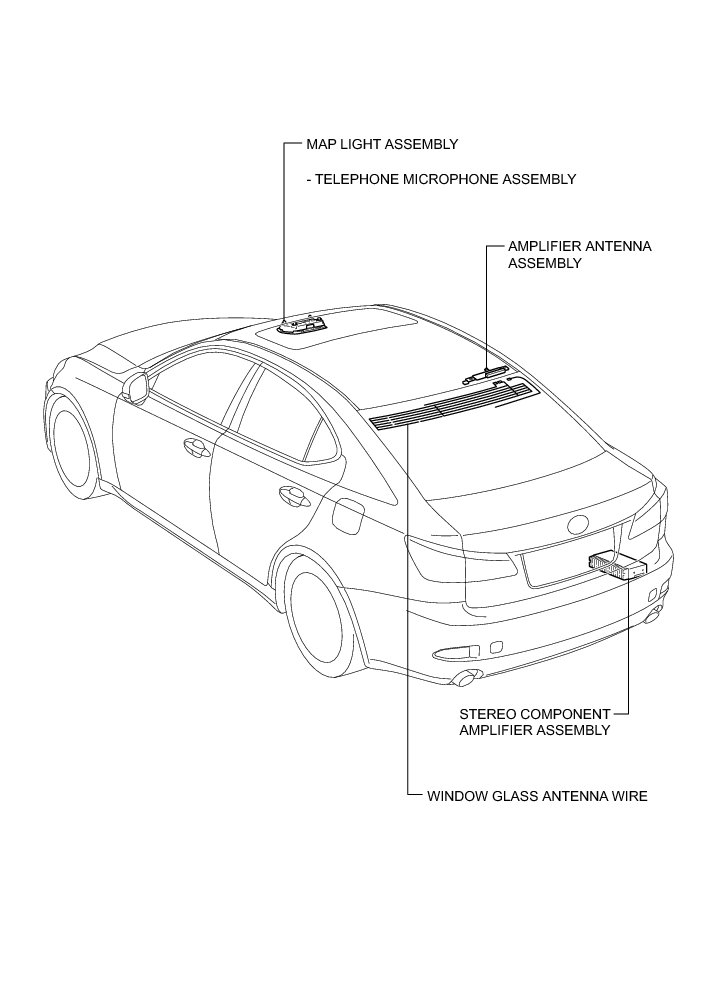

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): PARTS LOCATION
