Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Description and Operation >> Audio And Visual System (w/o Navigation System without Multi-display) >> System Diagram

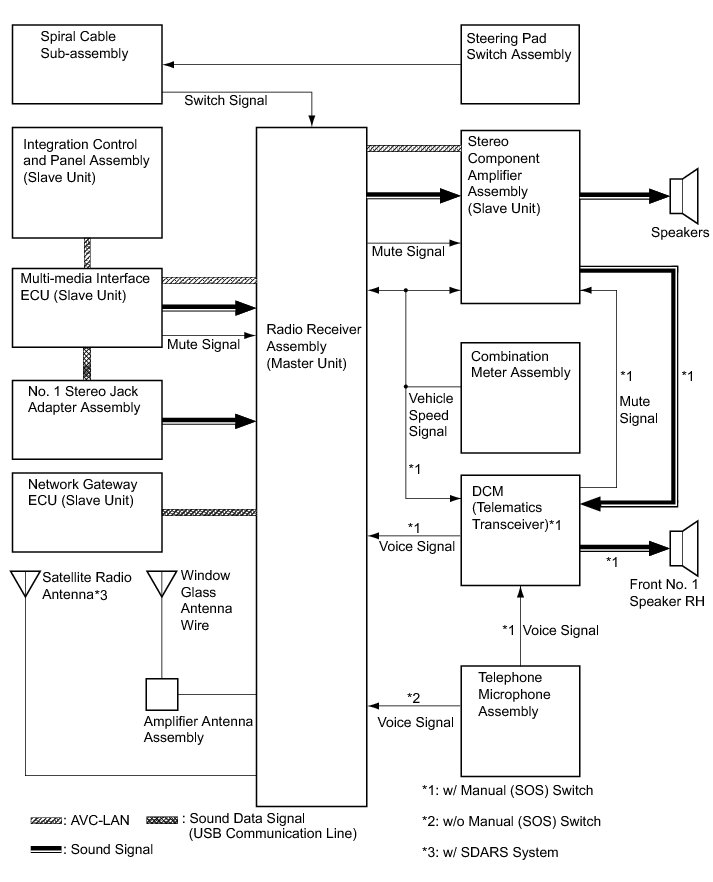

System Diagram





AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): SYSTEM DIAGRAM
