System Diagram





AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): SYSTEM DIAGRAM

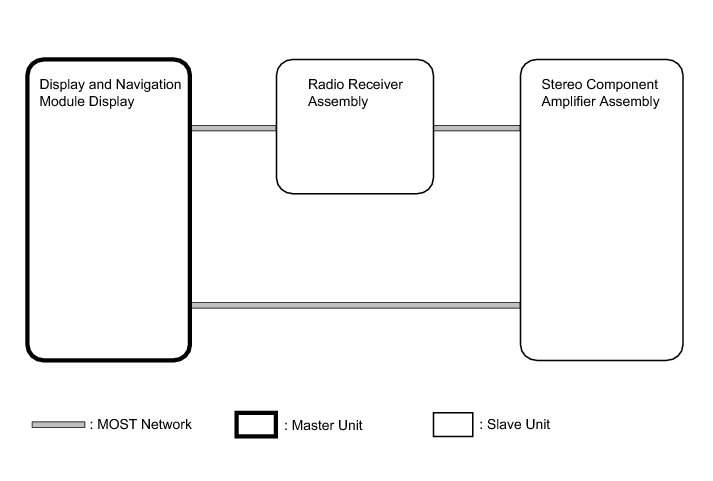

1. MOST Communication Line

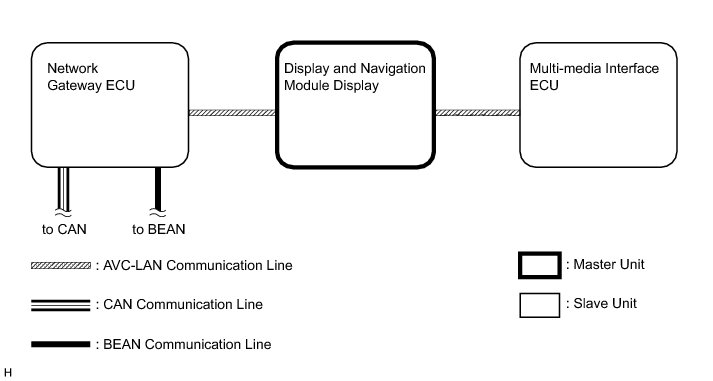

2. AVC-LAN Communication Line

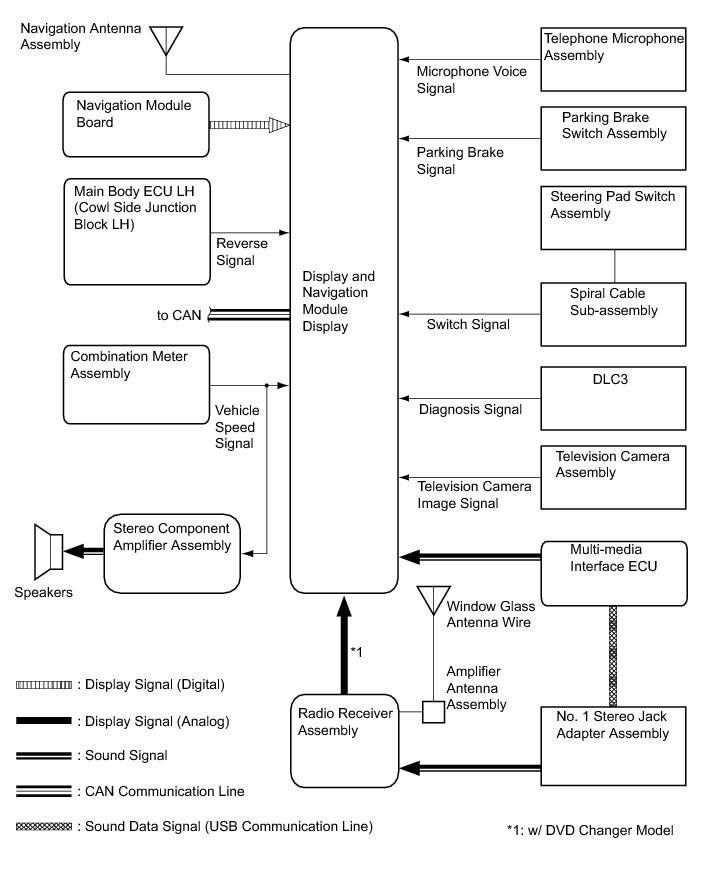

3. Others
