Map Disc Cannot be Inserted

NAVIGATION: NAVIGATION SYSTEM (for DVD): Map Disc cannot be Inserted
- Map Disc cannot be Inserted

INSPECTION PROCEDURE

PROCEDURE

1. CHECK NAVIGATION MODULE BOARD

(a) Enter the map data information screen.

(b) Check if a disc is inserted into the map disc slot.





(1) Check if the map data version is displayed.

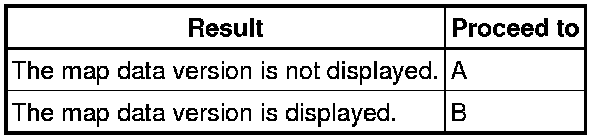

Result:





B -- EJECT MAP DISC
A -- Continue to next step.

2. CHECK MAP DISC





(a) Check that the map disc is not deformed or cracked.

OK:

No deformations or cracks on the map disc

NG -- REPLACE MAP DISC

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
