System Diagram





NAVIGATION: NAVIGATION SYSTEM (for HDD): SYSTEM DIAGRAM

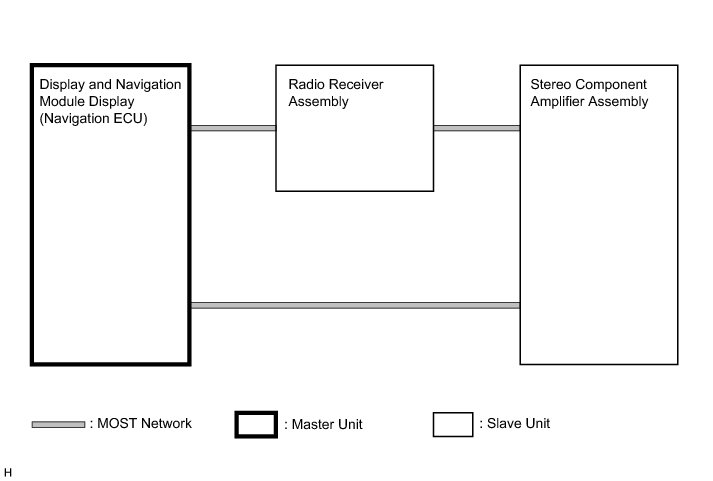

1. MOST NETWORK COMMUNICATION LINE

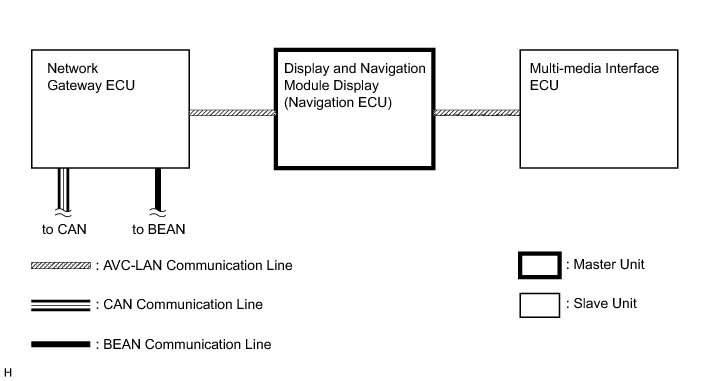

2. AVC-LAN COMMUNICATION LINE

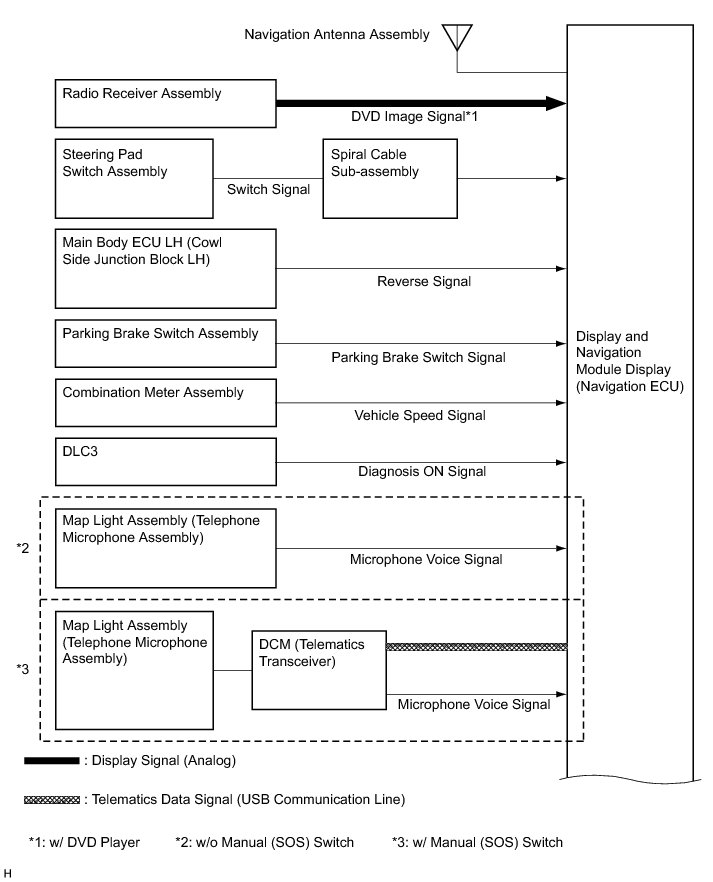

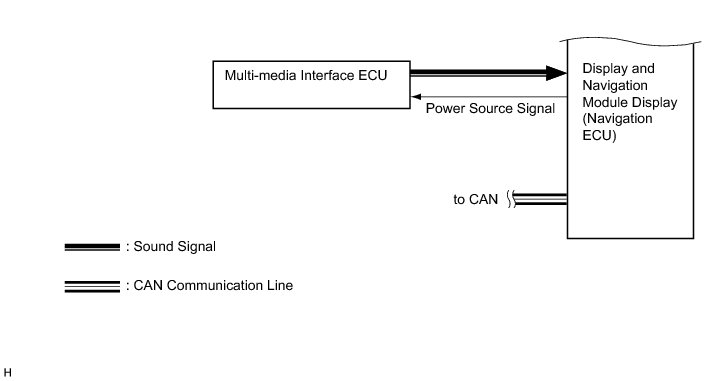

3. OTHER
