System Diagram





NAVIGATION: NAVIGATION SYSTEM (for DVD): SYSTEM DIAGRAM

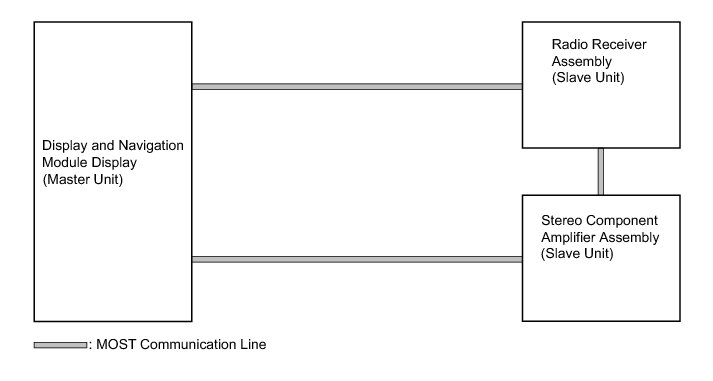

1. MOST Communication Line

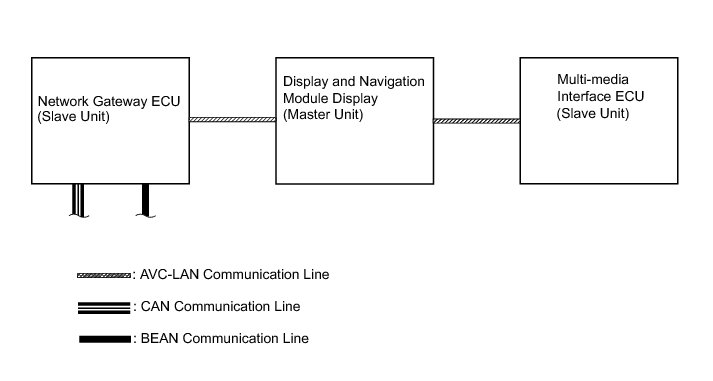

2. AVC-LAN Communication Line

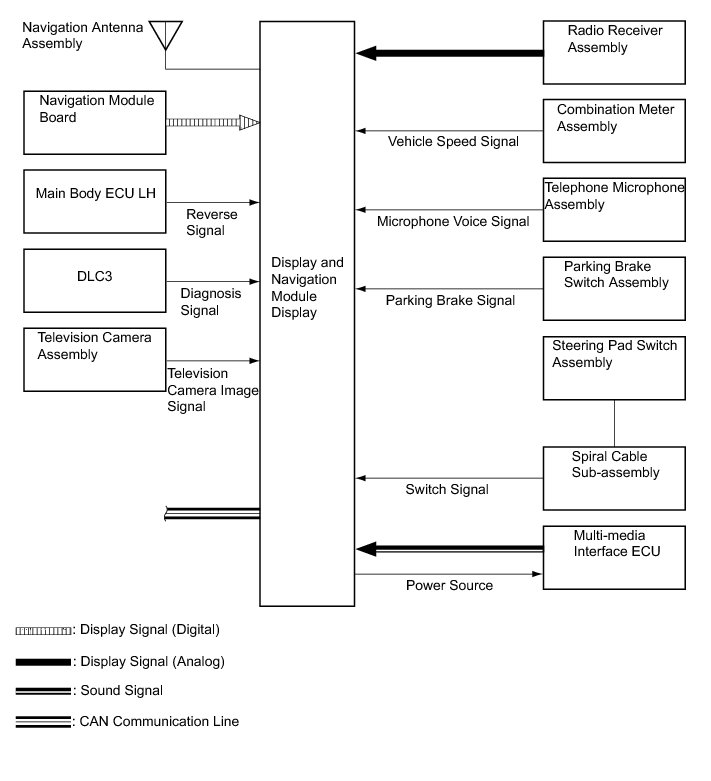

3. Others
