Memory Positioning Switch: Testing and Inspection

SEAT: SEAT MEMORY SWITCH: INSPECTION

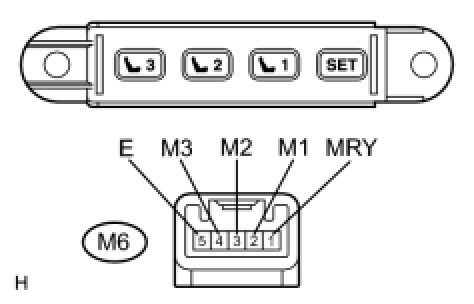

1. INSPECT SEAT MEMORY SWITCH LH

(a) Measure the resistance according to the value(s) in the table below.

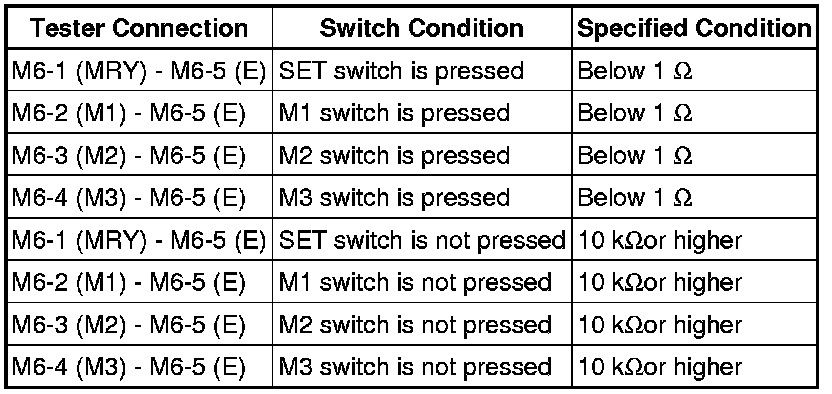

Standard resistance:





If the result is not as specified, replace the switch.
