Component Tests and General Diagnostics

GARAGE DOOR OPENER: GARAGE DOOR OPENER SYSTEM: INSPECTION

1. INSPECT GARAGE DOOR OPENER

(a) To inspect the garage door opener system, press each switch and check that each red LED turn on. If one or more of the switches do not turn on the LED, confirm that the fuse and the wiring to the garage door opener system unit are normal. If the fuse and wiring are normal, and the LED does not work, replace the garage door opener system unit located in the roof console box assembly.





2. INSPECT GARAGE DOOR OPENER REGISTRATION AND TRANSMITTING

HINT
Use the KENT-MOORE "Home Link" tester, and the KENT-MOORE handheld transmitter for this test. First clear the customer's transmitter codes, and then register the tester's handheld transmitter code to the garage door opener system.

(a) Check if the tester's handheld transmitter code was successfully registered.





HINT
If the handheld transmitter code cannot be registered, replace the garage door opener system unit.

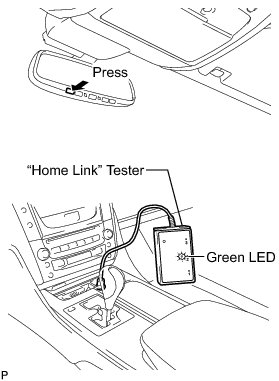

(b) Press the garage door opener switch that was used to copy the signal from the handheld transmitter. Check if the "Home Link" tester's green LED illuminates.





HINT
If the green LED does not illuminate, replace the garage door opener system unit that is located in the inner rear view mirror.

(c) When the inspection is complete, re-register the customer's handheld transmitter codes.
