Removal

METER: SATELLITE SWITCH: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal

2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal

3. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

4. REMOVE SIDE INSTRUMENT PANEL LH Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

6. REMOVE SATELLITE SWITCH SET

(a) Remove the 3 screws and the finish panel No. 2 retainer with switch.

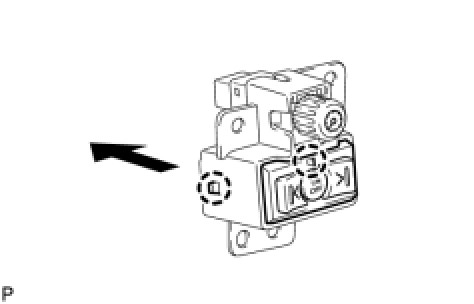

(b) Disengage the 2 claws and remove the satellite switch set from the finish panel No. 2 retainer with switch.
