Rear View Monitor System (w/o Navigation System)

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: TERMINALS OF ECU

1. REAR TELEVISION CAMERA ASSEMBLY

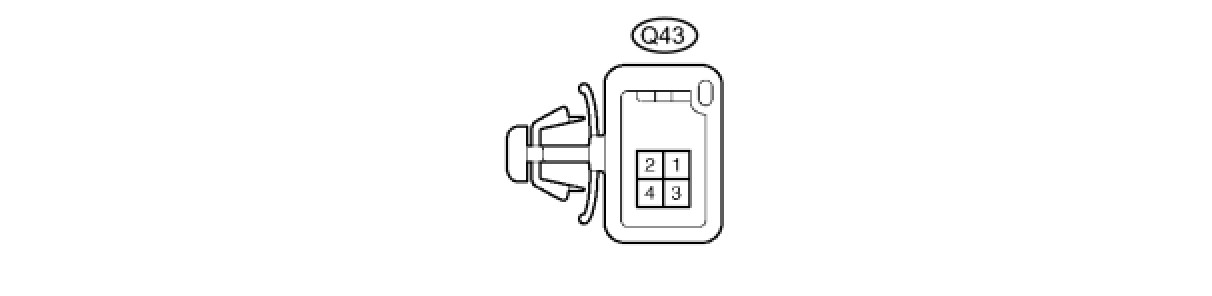

(a) Disconnect the Q43 connector from the rear television camera assembly.

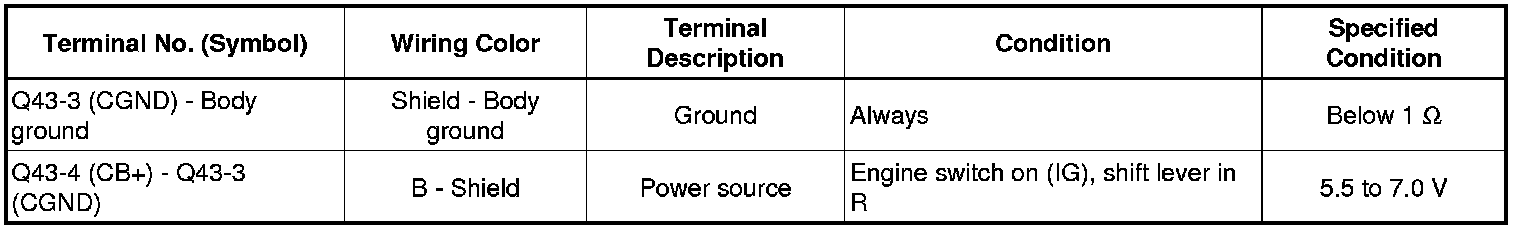

(b) Measure the voltage and resistance between each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the Q43 connector to the rear television camera assembly.

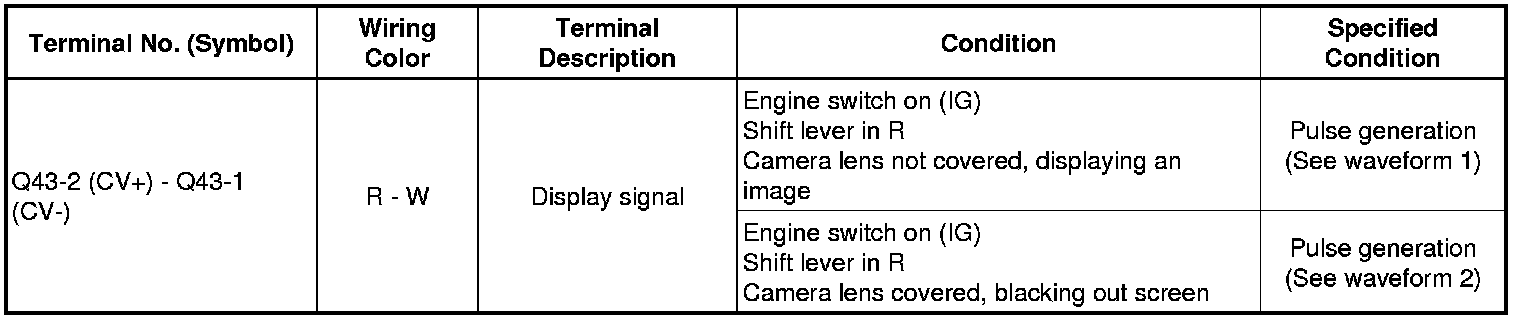

(d) Check for pulses between each terminal of the connector.





If the result is not as specified, the camera may have a malfunction.

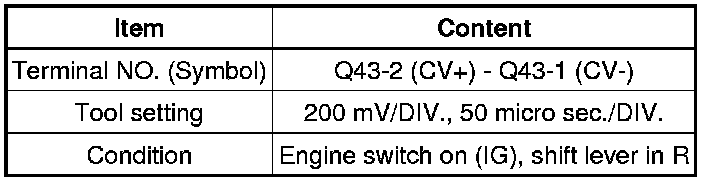

(e) Reference (Oscilloscope waveform):





(1) Waveform 1 (camera lens is not covered, displaying an image)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

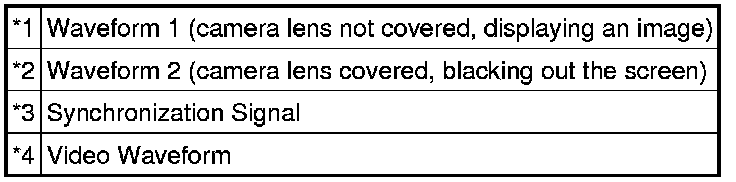

Text in Illustration





2. DISPLAY AND NAVIGATION MODULE DISPLAY (for DVD) Navigation System (for DVD)

3. DISPLAY AND NAVIGATION MODULE DISPLAY (for HDD) Navigation System (for HDD)
