Intuitive Parking Assist System

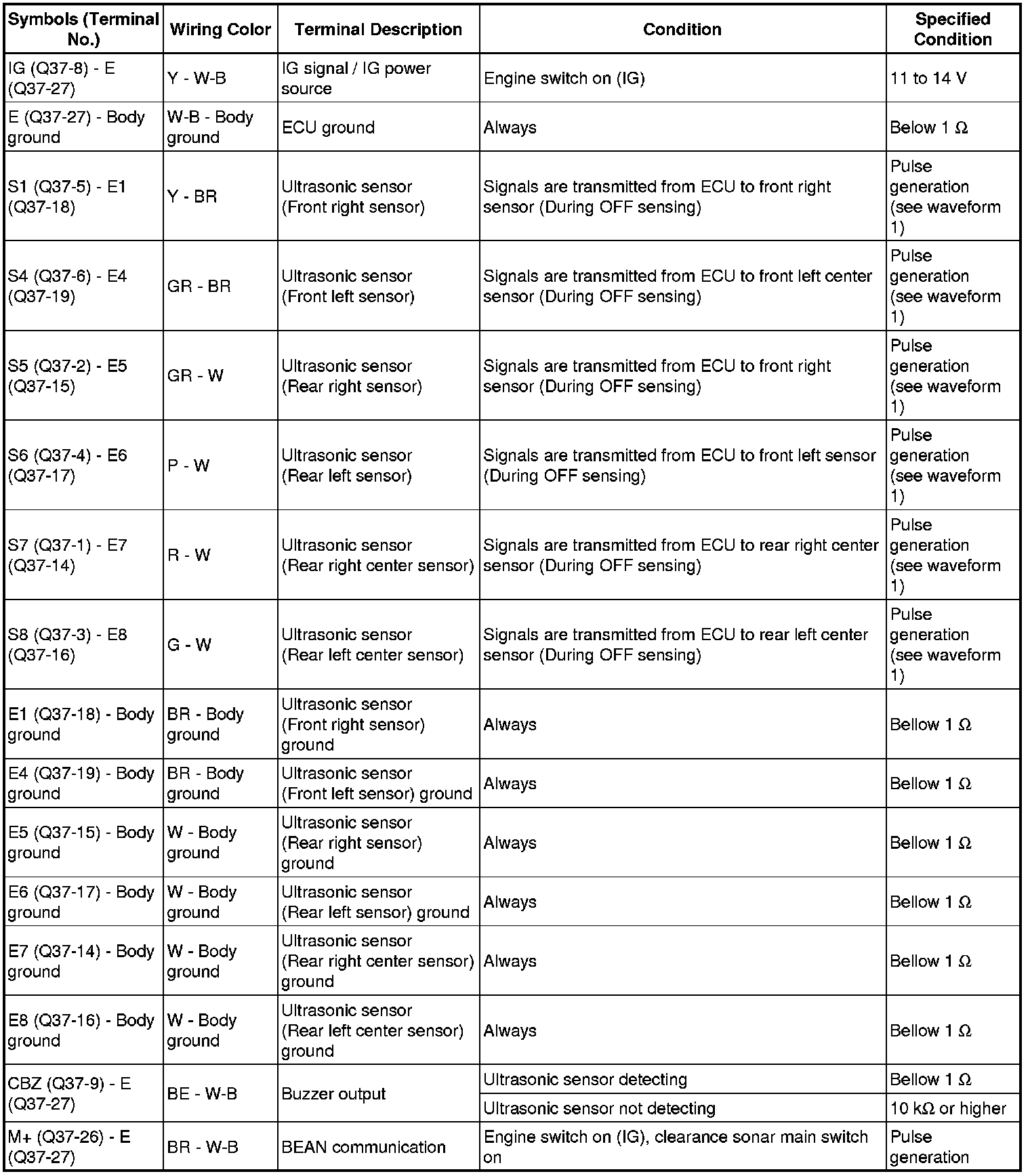

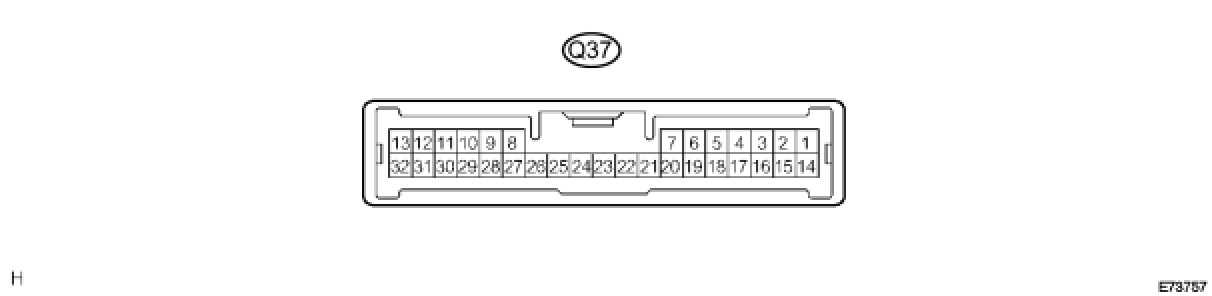

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

1. CHECK CLEARANCE WARNING ECU









(a) Reference:

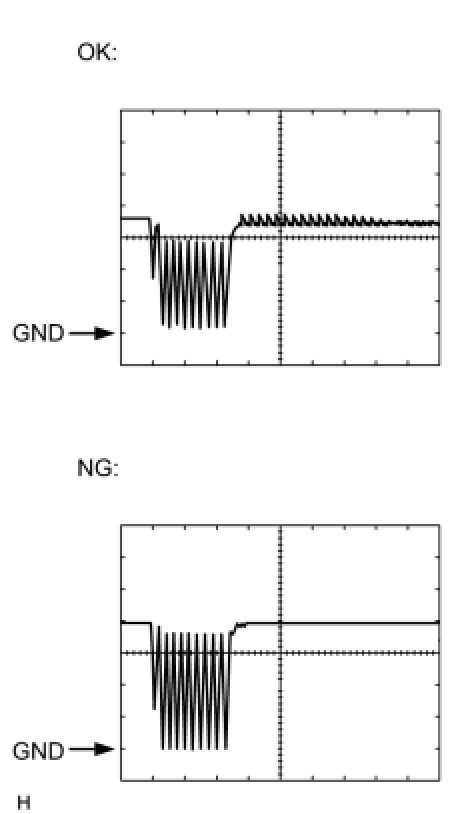

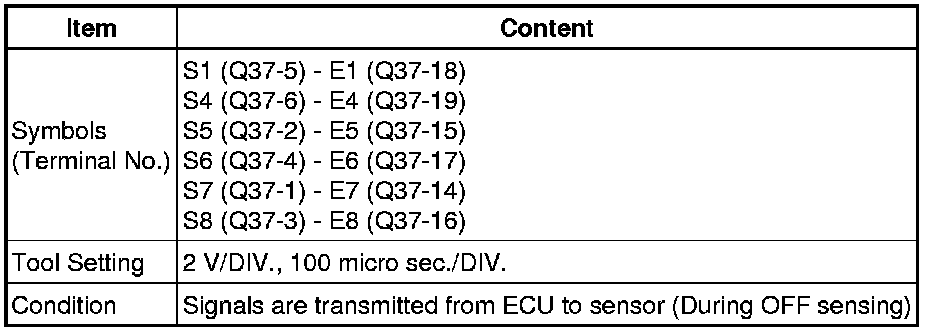

(1) Waveform 1
