Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. PROBLEM SYMPTOM CONFIRMATION

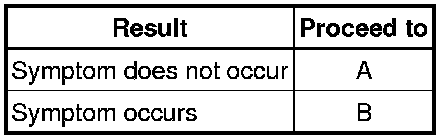

Result:





B -- Go to step 5
A -- Continue to next step.

4. SYMPTOM SIMULATION

NEXT -- Continue to next step.

5. CHECK FOR DTC

(a) Refer to DTC Check / Clear in Navigation System.

HINT
* Navigation system (for DVD) Navigation System (for DVD)
* Navigation system (for HDD) Navigation System (for HDD)

Result:





B -- Go to step 9
A -- Continue to next step.

6. CHECK IF SAME SYMPTOM OCCURS IN NAVIGATION SYSTEM

(a) Refer to Navigation System.

HINT
* Navigation system (for DVD) Problem Symptoms Table
* Navigation system (for HDD) Problem Symptoms Table

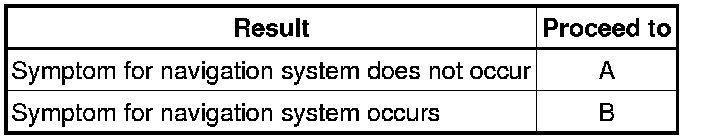

Result:





B -- GO TO NAVIGATION SYSTEM (FOLLOW NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

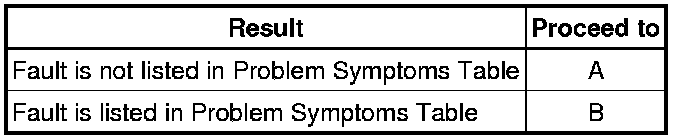

Result:





B -- Go to step 9
A -- Continue to next step.

8. OVERALL ANALYSIS AND TROUBLESHOOTING

(a) Refer to Terminals of ECU Rear View Monitor System (w/o Navigation System).

NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

10. CONFIRMATION TEST

NEXT -- END
