Removal

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: REMOVAL

1. PRECAUTION (w/ Navigation System for HDD)

NOTICE:
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
* A hard disk drive (HDD) is built into the display and navigation module display to store map data etc. which will be used for the navigation system. Therefore, make sure to read all of the precautions thoroughly before handling the display and navigation module display.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Navigation System for HDD)

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Removal

5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

6. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

7. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal

8. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

9. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

10. REMOVE INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray) Removal

11. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray) Removal

12. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

13. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Removal

14. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) Removal

15. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display) Removal

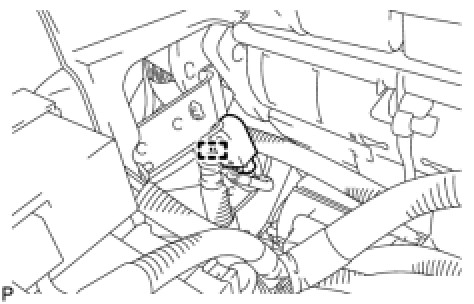

16. REMOVE CLEARANCE WARNING BUZZER

(a) Disconnect the connector.

(b) Disengage the clamp and remove the clearance warning buzzer.
