Smart Access System With Push-Button Start

DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using the Techstream's Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List relay in trouble shooting is one way to save time.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Read the Data List according to the display on the tester.

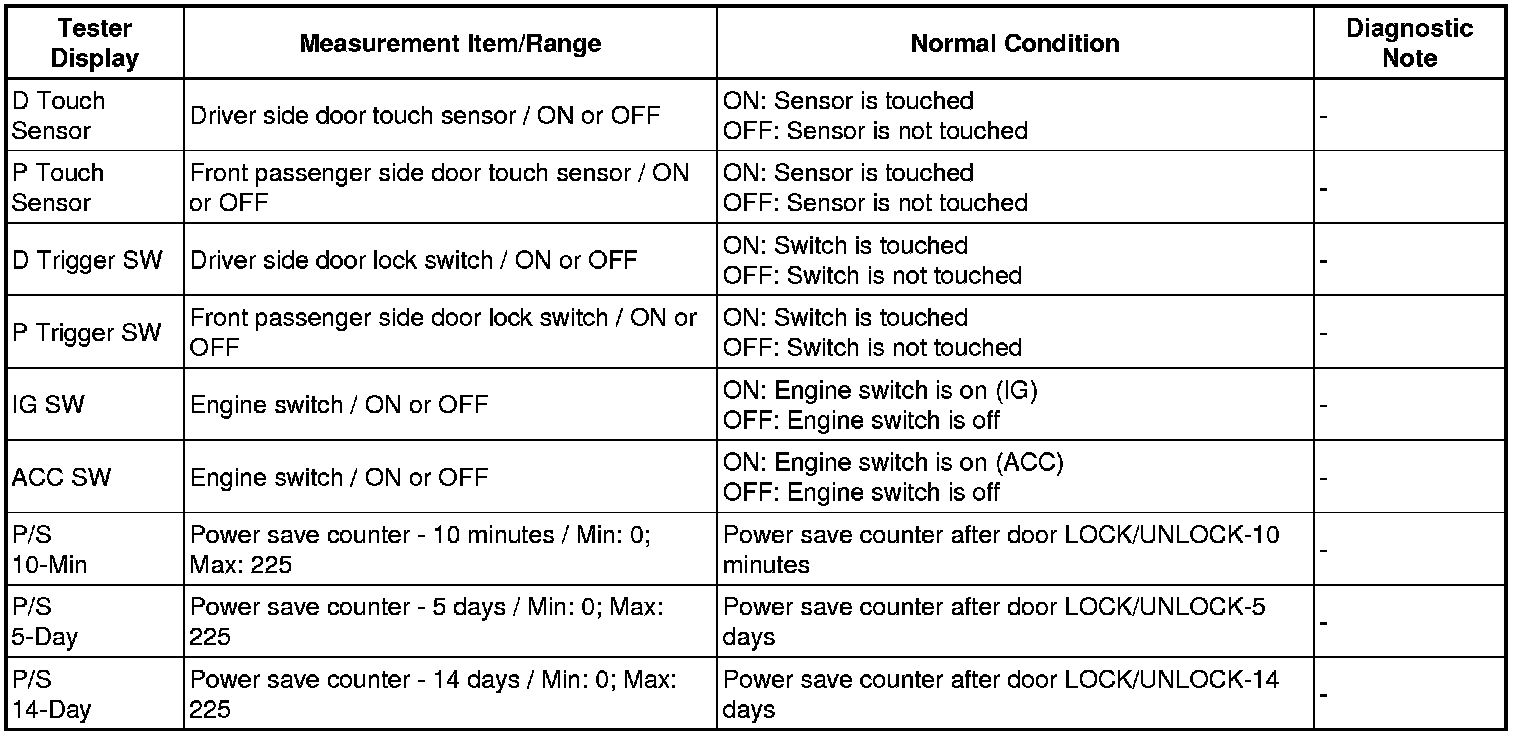

Smart Access (Certification ECU):

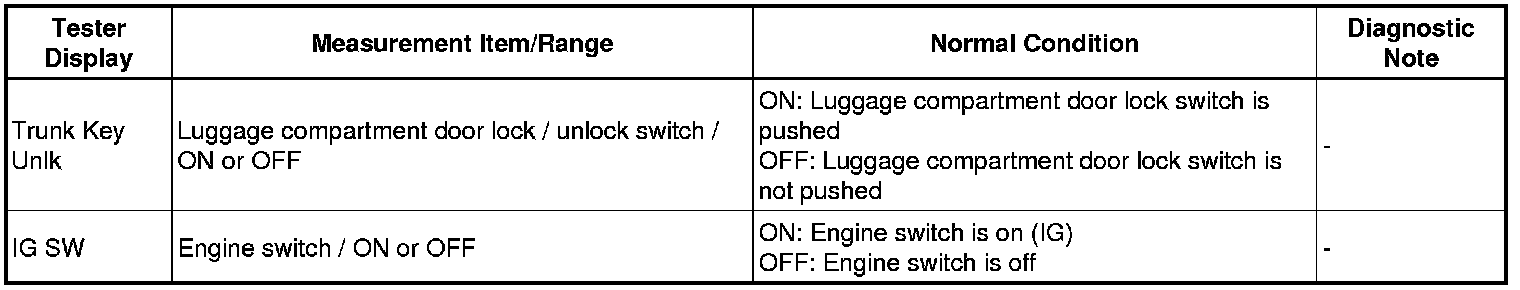

Body (Main Body ECU RH):

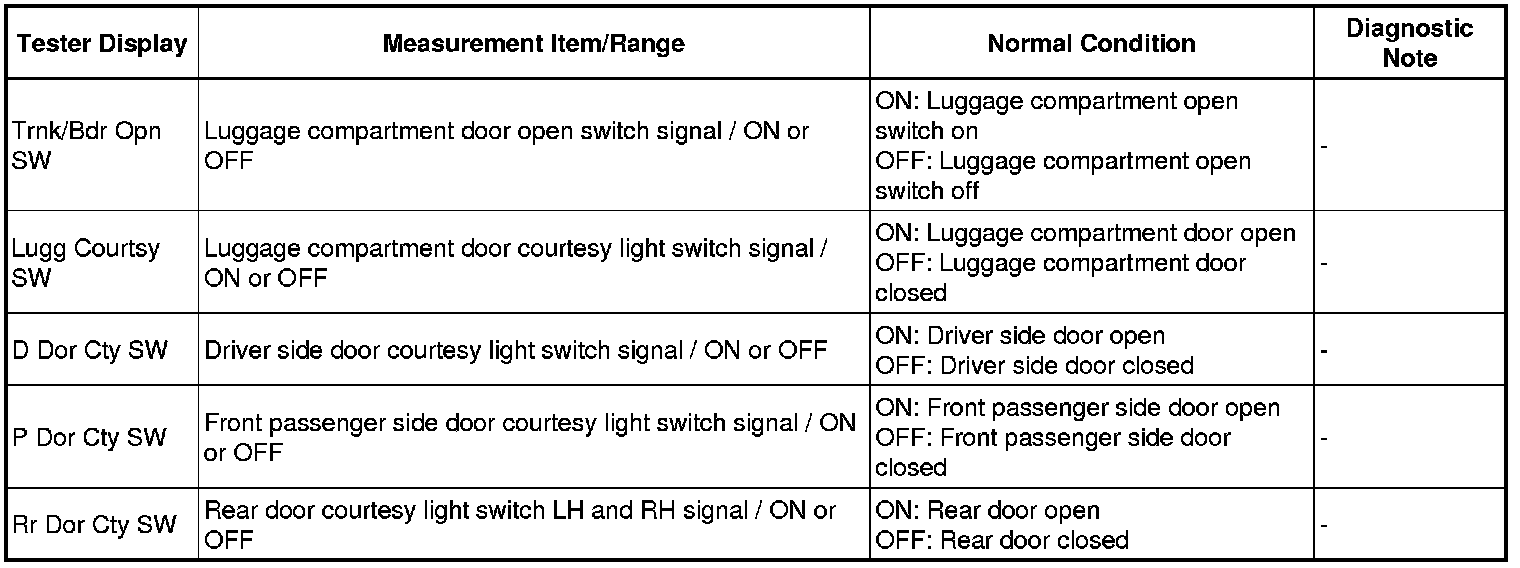

Body No. 3 (Main Body ECU LH):

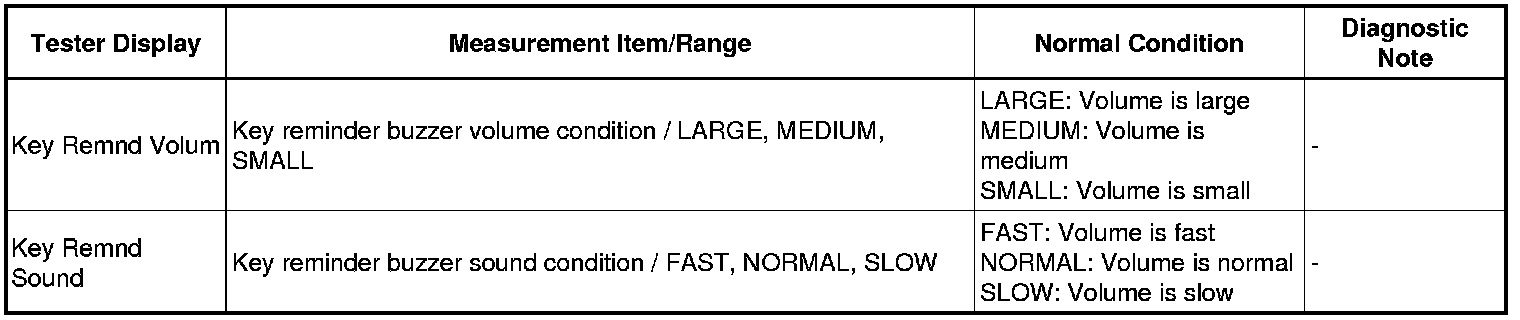

Meter (Combination Meter):





2. PERFORM ACTIVE TEST

HINT
Performing the Techstream's Active Test allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Perform the Active Test according to the display on the tester.

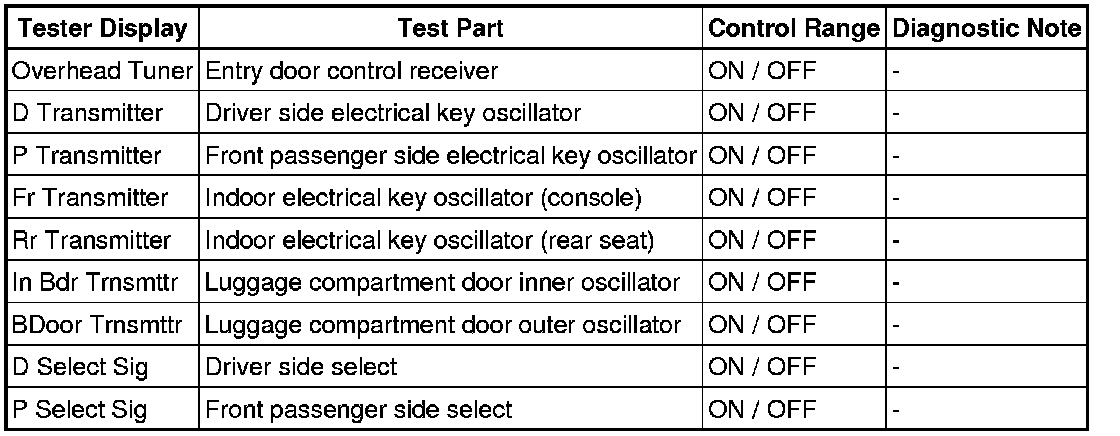

Smart Key (Certification ECU):





Body (Main Body ECU RH):





Meter (Combination meter):
