SFI System
4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500: Vehicle Speed Sensor "A"
P0500 - Vehicle Speed Sensor "A"
DESCRIPTION

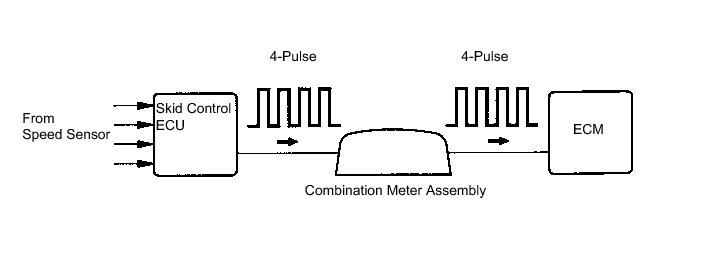

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.
MONITOR DESCRIPTION
If there is no speed signal from the combination meter assembly even though the ECM determines that the vehicle is being driven, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and sets the DTC.

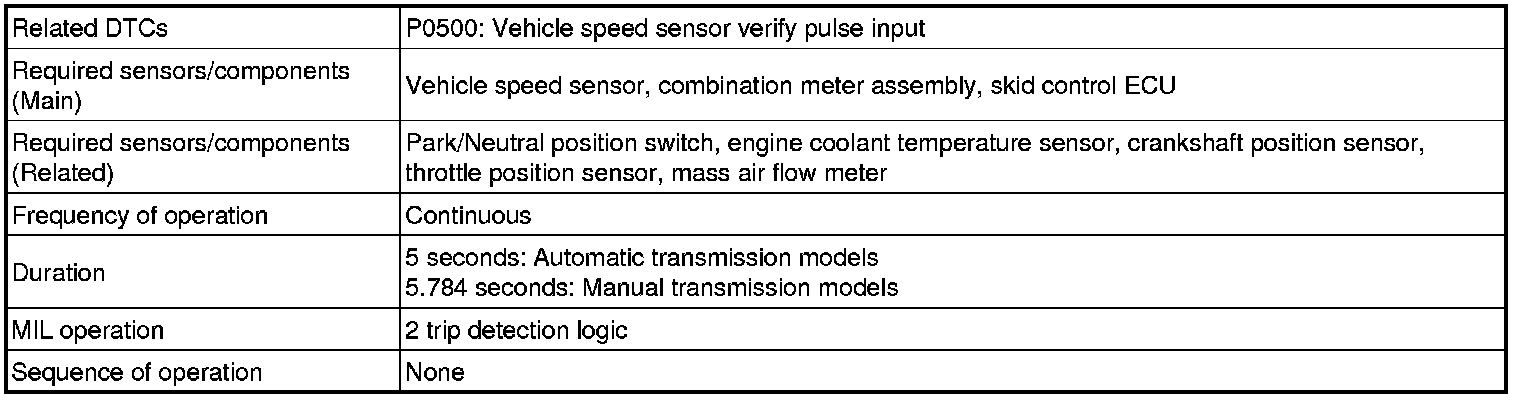

MONITOR STRATEGY

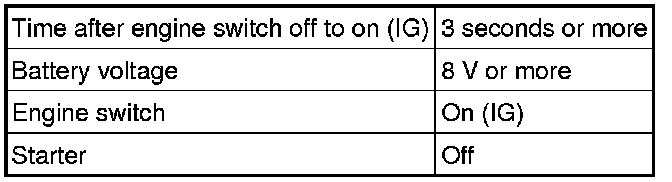

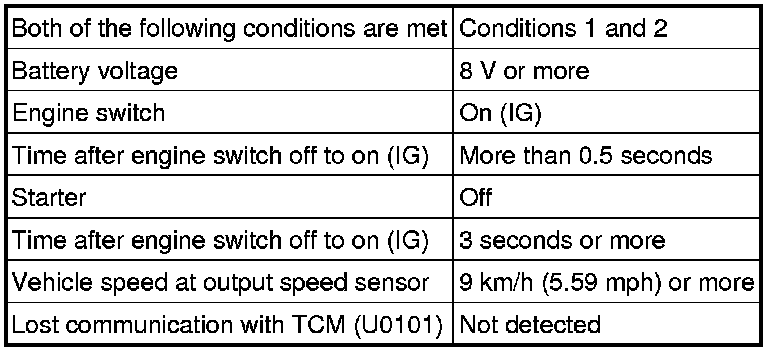

TYPICAL ENABLING CONDITIONS
All
Manual Transmission Models
Automatic Transmission Models

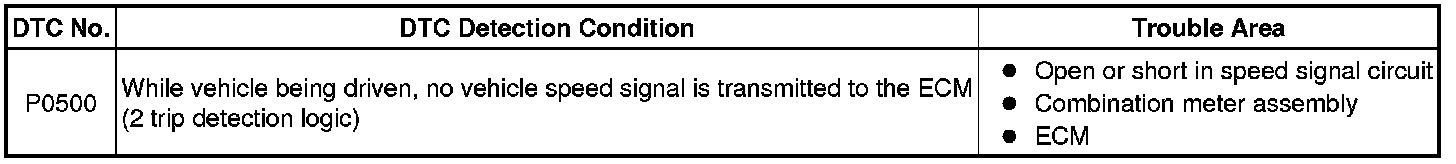

TYPICAL MALFUNCTION THRESHOLDS

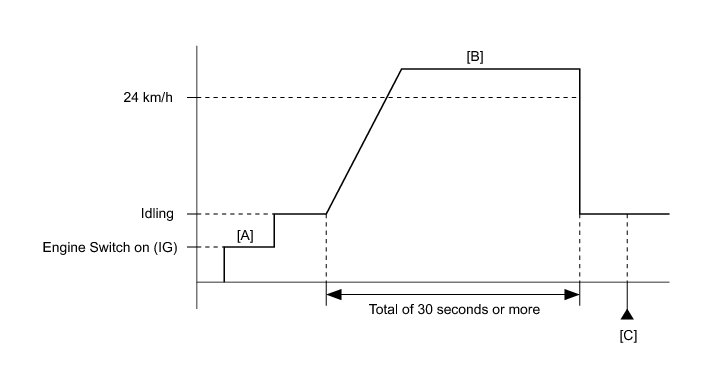

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
4. Turn the engine switch off and wait for at least 30 seconds.
5. Turn the engine switch on (IG) and turn the Techstream on [A].
6. Start the engine.
7. Drive the vehicle at 24 km/h (15 mph) or more for a total of 30 seconds or more [B].
CAUTION:
When performing the confirmation driving pattern, obey all speed and traffic laws.
8. Stop the vehicle.
9. Enter the following menus: Powertrain / Engine / Trouble Codes.
10. Read the pending DTC [C].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
12. Input the DTC: P0500.

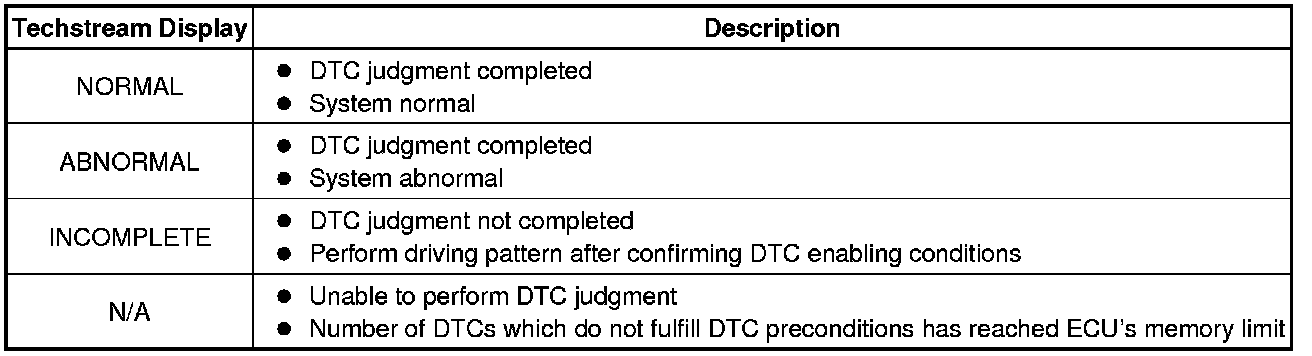

13. Check the DTC judgment result.
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
14. If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

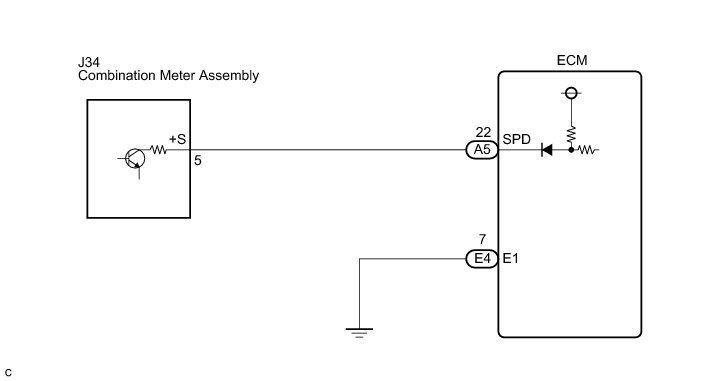

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. CHECK OPERATION OF SPEEDOMETER
(a) Drive the vehicle and check whether the operation of the speedometer in the combination meter assembly is normal.
HINT
- The vehicle speed signal is normal if the speedometer reading is normal.
- If the speedometer does not operate, check it by following the procedure described for a speedometer malfunction.
NG -- GO TO METER / GAUGE SYSTEM (SPEEDOMETER MALFUNCTION)
OK -- Continue to next step.
2. READ VALUE USING TECHSTREAM (VEHICLE SPEED)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Data List / Vehicle Speed.
(e) Drive the vehicle.
(f) Read the value displayed on the Techstream.
OK:
Vehicle speeds displayed on the Techstream and speedometer display are equal.
NG -- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
3. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)
(a) Disconnect the combination meter assembly connector.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):
Standard Resistance (Check for Short):
HINT
If the wire has a short, check the speed signal circuit in other systems related to the vehicle speed signal (e. g. tire pressure warning system, audio system, etc).
(d) Reconnect the combination meter assembly connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (OTHER SYSTEMS RELATED TO SPEED SIGNAL)
OK -- Continue to next step.
4. CHECK COMBINATION METER ASSEMBLY (+S VOLTAGE)
(a) Disconnect the combination meter assembly connector.
HINT
Disconnect the ECU connectors on the other systems related to the speed signal (but the ECM connectors must be connected.)
(b) Turn the engine switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
(d) Reconnect the combination meter assembly connector.
NG -- REPLACE ECM Removal
OK -- Continue to next step.
5. CHECK COMBINATION METER ASSEMBLY (SPD SIGNAL WAVEFORM)
(a) Remove the combination meter assembly.
(b) Connect the combination meter assembly connector.
(c) Move the shift lever to neutral position.
(d) Jack up the vehicle.
(e) Turn the engine switch on (IG).

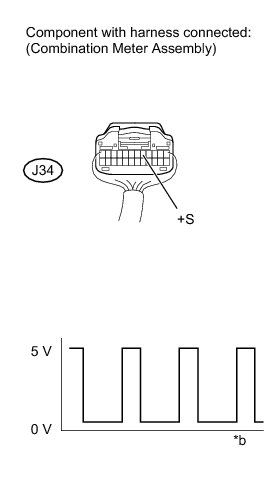

(f) Check the voltage between the terminal of the combination meter assembly and the body ground while the wheel is turned slowly.
Standard Voltage:
HINT
The output voltage should fluctuate up and down, similarly to the diagram, when the wheel is turned slowly.
NG -- REPLACE COMBINATION METER ASSEMBLY Removal
OK -- REPLACE ECM Removal
