P0335

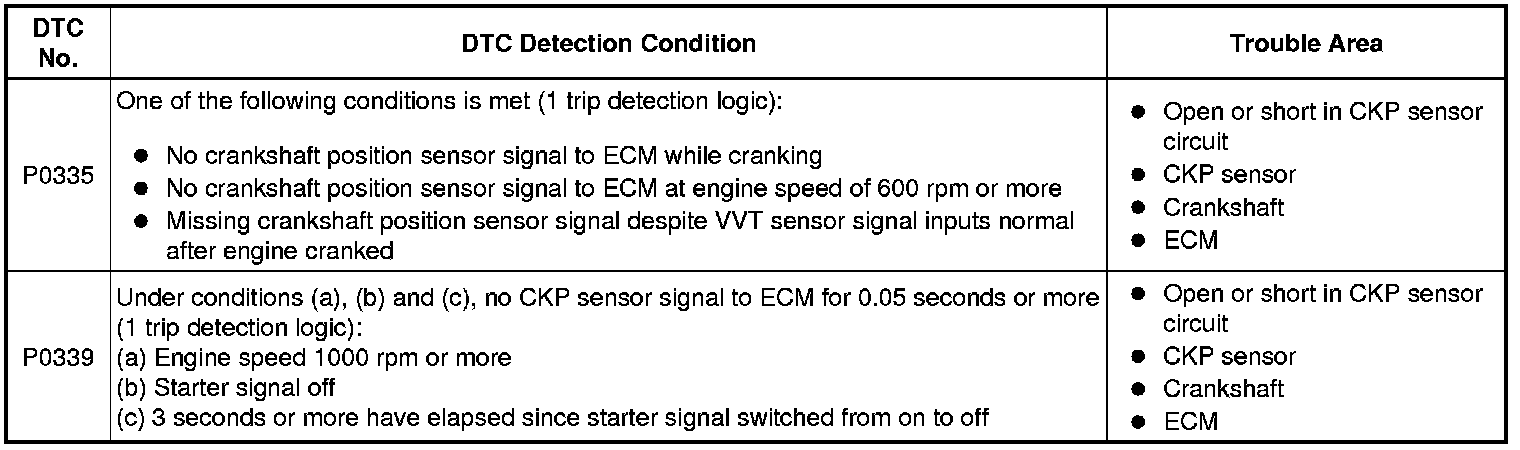

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0335, P0339: Crankshaft Position Sensor "A" Circuit


DESCRIPTION

The crankshaft position (CKP) sensor system consists of a crankshaft position sensor plate and a magnetic coil.

The sensor plate has 34 teeth and is installed on the crankshaft. The pickup coil is made of windings, an iron core and magnet. The sensor plate rotates and as each tooth passes through the pickup coil, a pulse signal is created. The pickup coil generates 34 signals for each engine revolution. Based on these signals, the ECM calculates the crankshaft position and engine speed. Using these calculations, the fuel injection time and ignition time are controlled.

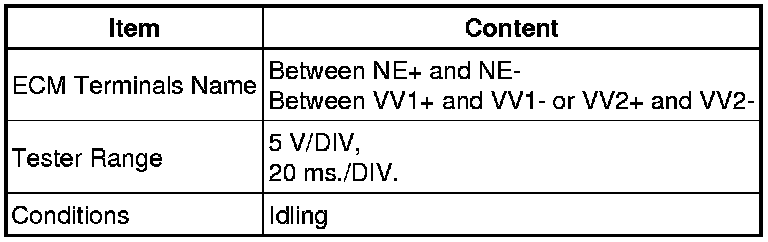

- Reference: Inspection using an oscilloscope.





HINT
- The correct waveform is as shown.
- VV1+ and VV2+ stand for the VVT sensor for intake camshaft signal, and NE+ stands for the CKP sensor signal.





MONITOR DESCRIPTION

If there is no signal from the crankshaft position sensor despite the engine revolving, the ECM interprets this as a malfunction of the sensor.

If the malfunction is not repaired successfully, these DTCs are set 10 seconds after the engine is next started.

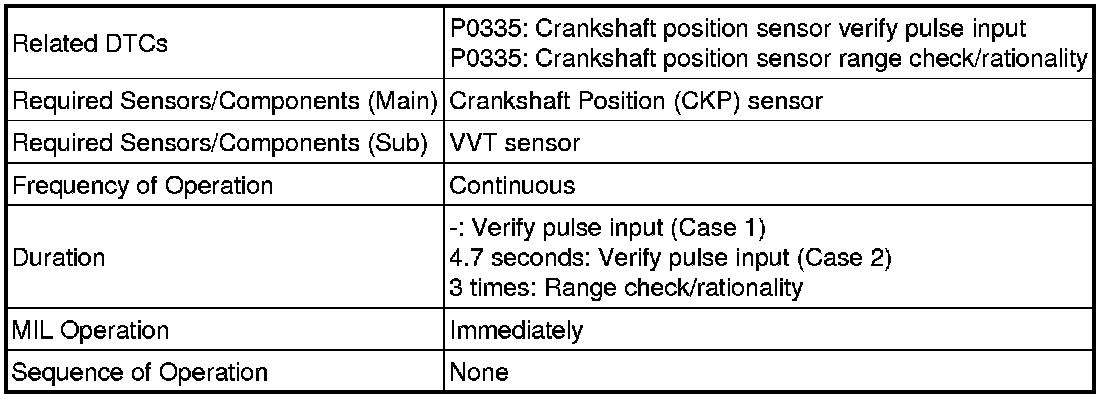

MONITOR STRATEGY

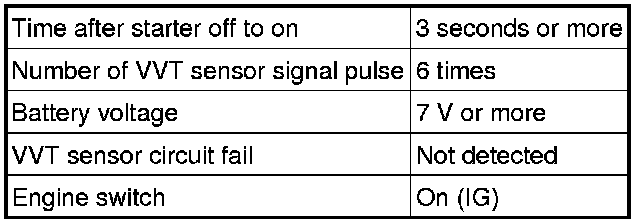

TYPICAL ENABLING CONDITIONS

All





P0335: Range Check/Rationality





P0335: Verify Pulse Input (Case 1)





P0335: Verify Pulse Input (Case 2)

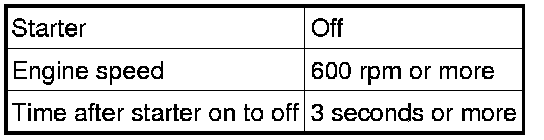

TYPICAL MALFUNCTION THRESHOLDS

P0335: Range Check/Rationality





P0335: Verify Pulse Input





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on.

6. Start the engine.

7. Idle the engine for 20 seconds or more [A].

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the pending DTC [B].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P0335 or P0339.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or N/A, perform steps [A] and [B] again.

13. If no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

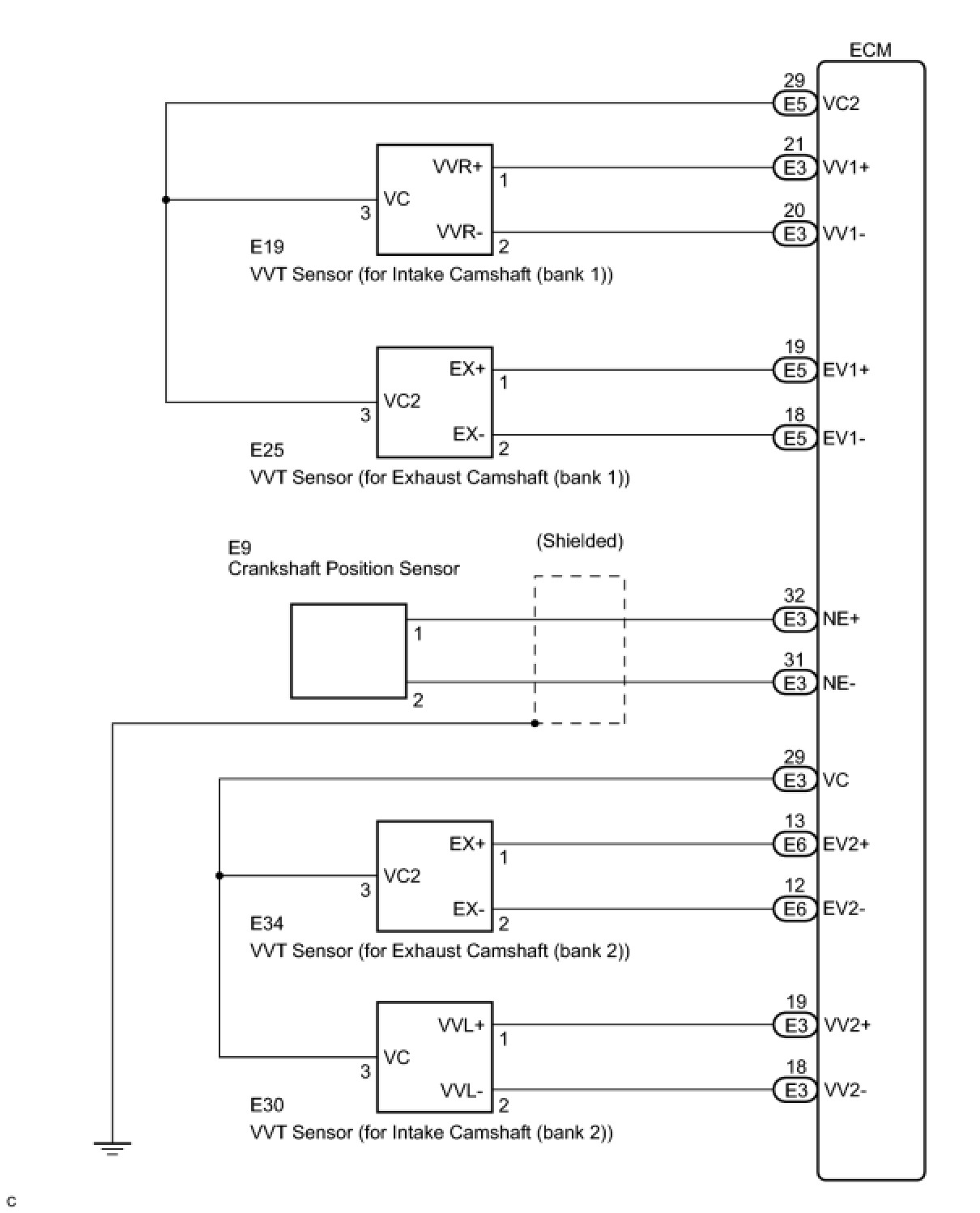

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
- After performing the inspection procedure for the crankshaft position sensor, if DTC P0335 is output again, check the following items related to the VVT sensor.
* Installation condition of the VVT sensor
* Installation condition of the camshaft
* Connection of the VVT sensor connector
- If no problem is found by this diagnostic troubleshooting procedure, troubleshoot the engine mechanical system.
- Check the engine speed. The engine speed can be checked by using Techstream. To check, follow the operation below:
(1) Connect Techstream to the DLC3.
(2) Start the engine.
(3) Turn the Techstream on.
(4) Enter the following menus: Powertrain / Engine / Data List / All Data / Engine Speed.
* The engine speed may be indicated as zero despite the engine revolving normally. This is caused by a lack of NE signals from the crankshaft position (CKP) sensor. Alternatively, the engine speed may be indicated as lower than the actual engine speed, if the CKP sensor output voltage is insufficient.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. INSPECT CRANKSHAFT POSITION SENSOR

(a) Inspect the crankshaft position sensor Testing and Inspection.

NG -- REPLACE CRANKSHAFT POSITION SENSOR Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - ECM)

(a) Disconnect the E9 CKP sensor connector.

(b) Disconnect the E3 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for open):





Standard resistance (Check for short):





(d) Reconnect the ECM connector.

(e) Reconnect the CKP sensor connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

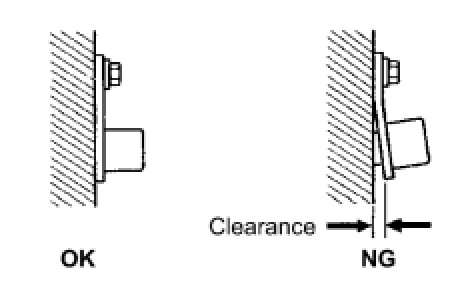

3. CHECK CRANK POSITION SENSOR (SENSOR INSTALLATION)

(a) Check the CKP sensor installation.





OK:

Sensor is installed correctly.

NG -- SECURELY REINSTALL CRANKSHAFT POSITION SENSOR Removal
OK -- Continue to next step.

4. CHECK CRANKSHAFT POSITION SENSOR PLATE (TEETH OF SENSOR PLATE)

(a) Check the teeth of the sensor plate.

OK:

Sensor plate does not have any cracks or deformation.

NG -- REPLACE CRANKSHAFT Reassembly

OK -- REPLACE ECM Removal
