4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0327, P0328, P0332, P0333: Knock Sensor 1 Circuit Low Input (Bank 1 or Single Sensor)


DESCRIPTION

A flat type knock sensor (non-resonant type) has a structure that can detect vibrations over a wide band of frequencies: between approximately 5 kHz and 15 kHz.

Knock sensors are fitted onto the engine block to detect engine knocking.

The knock sensor contains a piezoelectric element which generates a voltage when it becomes deformed.

The voltage is generated when the engine block vibrates due to knocking. Any occurrence of engine knocking can be suppressed by delaying the ignition timing.





HINT
When any of DTCs P0327, P0328, P0332 and P0333 are set, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is delayed to its maximum retardation. Fail-safe mode continues until the engine switch is turned off.

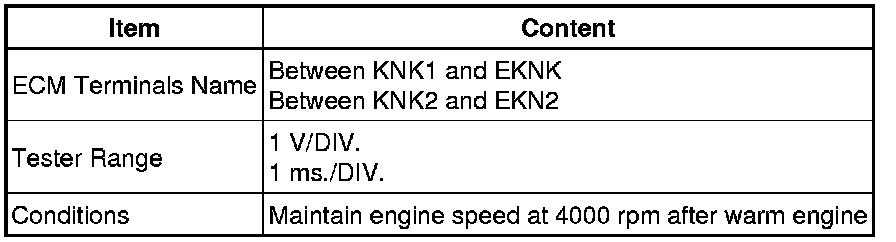

Reference: Inspection using an oscilloscope





The correct waveform is as shown.





MONITOR DESCRIPTION

If the output voltage transmitted by the knock control sensor remains low or high 1 second or more, the ECM interprets this as a malfunction in the sensor circuit, and stores a DTC.

The monitor for DTCs P0327, P0328, P0332 and P0333 begins to run when 5 seconds have elapsed since the engine was started.

If the malfunction is not repaired successfully, DTC P0327, P0328, P0332 or P0333 is stored 5 seconds after the engine is next started.

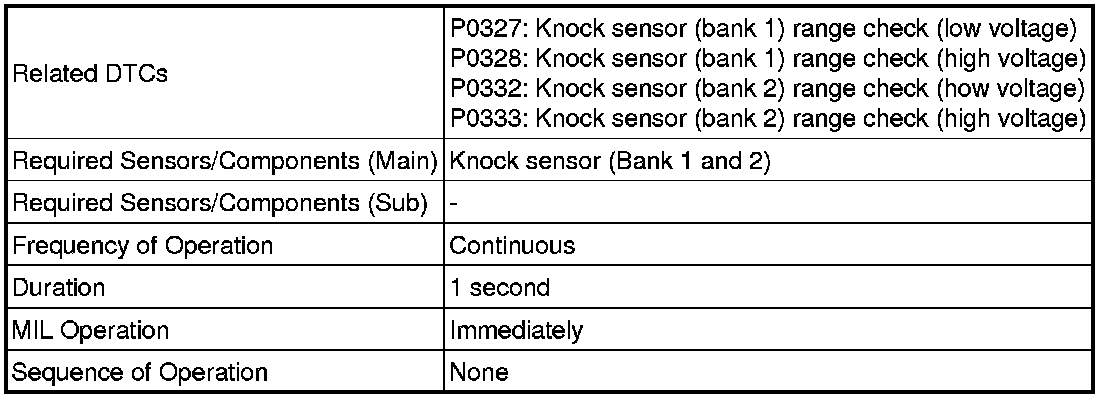

MONITOR STRATEGY

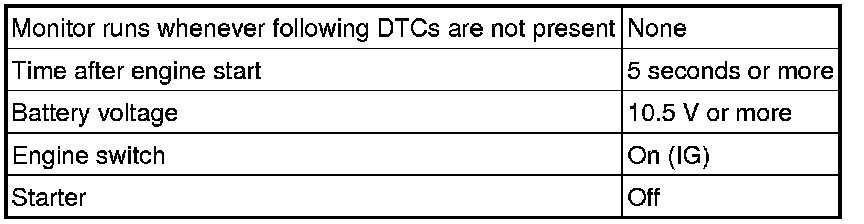

TYPICAL ENABLING CONDITIONS

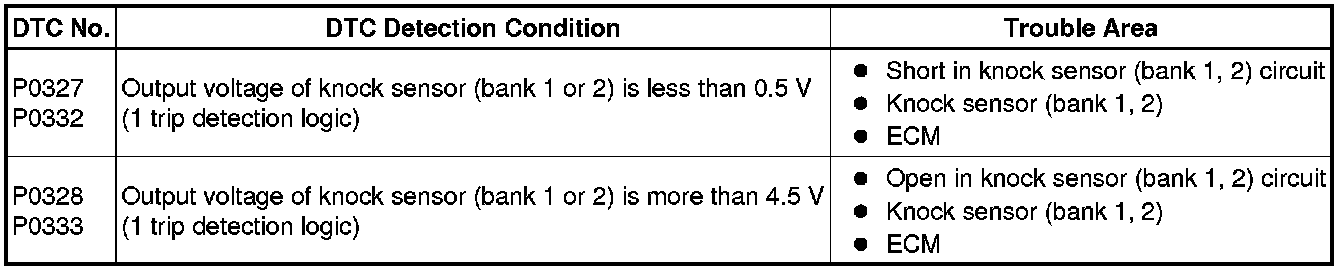

TYPICAL MALFUNCTION THRESHOLDS

P0327 and P0332





P0328 and P0333





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on.

6. Start the engine and wait 5 minutes.

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the pending DTC.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P0327, P0328, P0332 or P0333.

11. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or N/A, idle the engine for 5 minutes and check the DTC judgment result again.

12. If no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

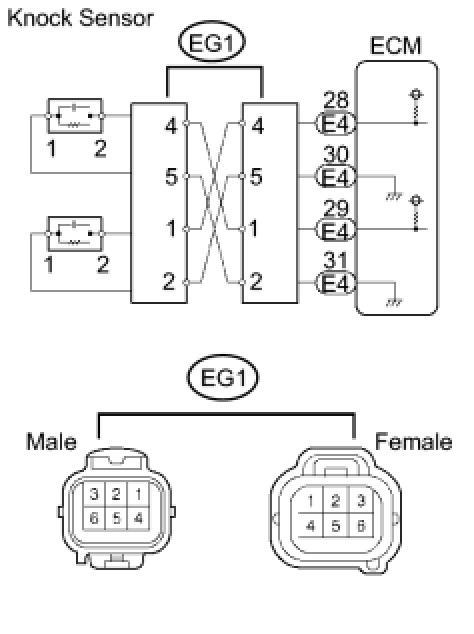

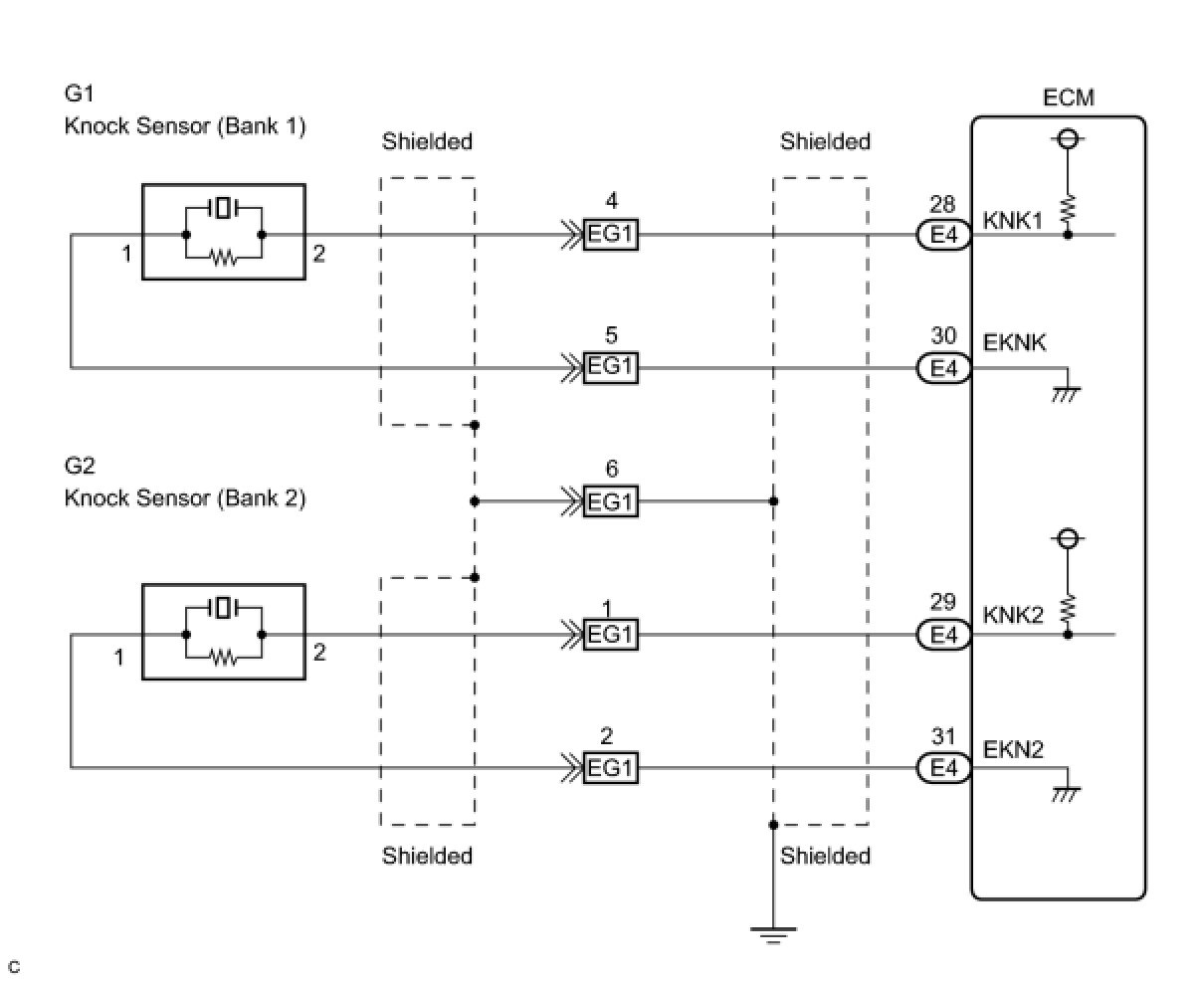

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
- DTCs P0327 and P0328 are for the bank 1 knock sensor circuit.
- DTCs P0332 and P0333 are for the bank 2 knock sensor circuit.
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. READ OUTPUT DTC (CHECK KNOCK SENSOR CIRCUIT)

(a) Disconnect the EG1 connector.

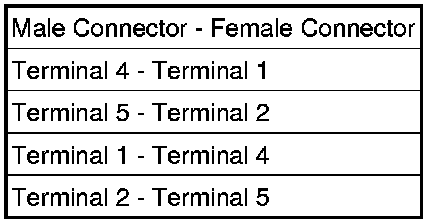

(b) Using lead wires, connect the connectors as follows:





(c) Warm up the engine.

(d) Run the engine at 3000 rpm for 10 seconds or more.

(e) Connect Techstream to the DLC3.

(f) Turn the engine switch on (IG) and turn Techstream on.

(g) Enter the following menus: Powertrain / Engine / Trouble Codes.

(h) Read DTCs.

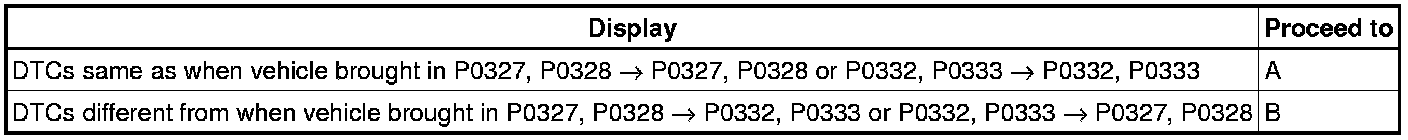

Result:





(i) Reconnect the EG1 connector.

B -- INSPECT KNOCK SENSOR
A -- Continue to next step.

2. CHECK WIRE HARNESS AND CONNECTOR (CONNECTOR - ECM)

(a) Disconnect the EG1 connector.

(b) Disconnect the E4 ECM connector.

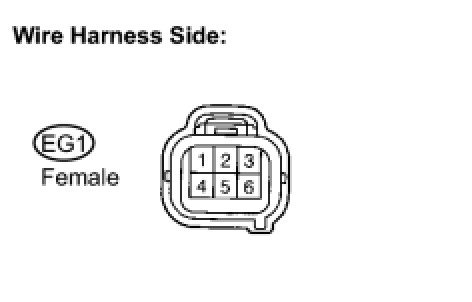

(c) Measure the resistance according to the value(s) in the table below.

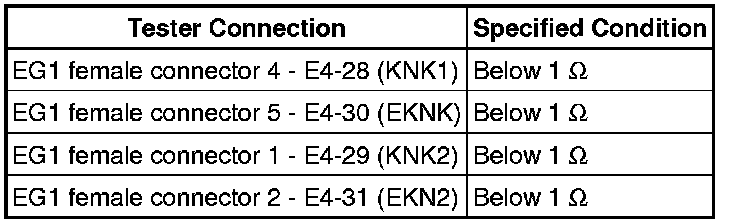

Standard resistance (Check for open):

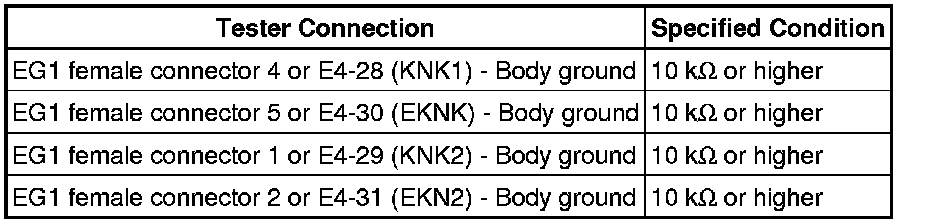

Standard resistance (Check for short):





(d) Reconnect the EG1 connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT ECM

(a) Disconnect the EG1 connector.





(b) Turn the engine switch on (IG).

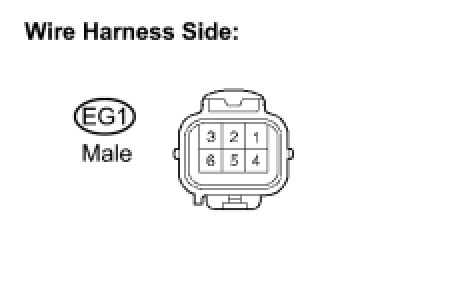

(c) Measure the voltage according to the value(s) in the table below.

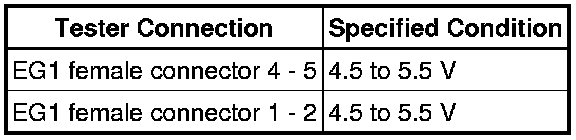

Standard voltage:





(d) Reconnect the EG1 connector.

NG -- REPLACE ECM Removal

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

4. INSPECT KNOCK SENSOR

(a) Disconnect the EG1 connector.





(b) Measure the resistance according to the value(s) in the table below.

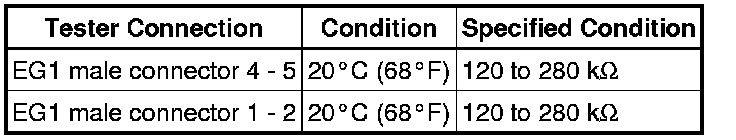

Standard resistance:





Result:





(c) Reconnect the EG1 connector.

B -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
A -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (CONNECTOR - KNOCK SENSOR)

HINT
- If DTC P0327 or P0328 has changed to P0332 or P0333, check the knock sensor circuit on the right bank side.
- If DTC P0332 or P0333 has changed to P0327 or P0328, check the knock sensor circuit on the left bank side.

(a) Disconnect the EG1 connector.

(b) Disconnect the G1 and G2 knock sensor connectors.

(c) Measure the resistance according to the value(s) in the table below.

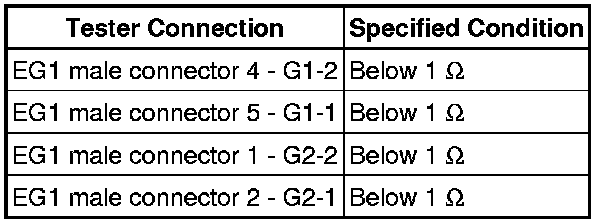

Standard resistance (Check for open):





Standard resistance (Check for short):





(d) Reconnect the EG1 connector.

(e) Reconnect the knock sensor connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE KNOCK SENSOR Removal
