P011B
4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P011B: Engine Coolant Temperature / Intake Air Temperature Correlation
P011B - Engine Coolant Temperature / Intake Air Temperature Correlation
DESCRIPTION
The engine has two temperature sensors, an Engine Coolant Temperature (ECT) sensor and an Intake Air Temperature (IAT) sensor, to detect the temperature while the engine is in operation. A thermistor, whose resistance value varies according to the temperature, is built into each sensor. When the temperature is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes. Based on these temperature signals output from the sensors, the ECM determines the fuel injection duration and the ignition timing to control the engine.

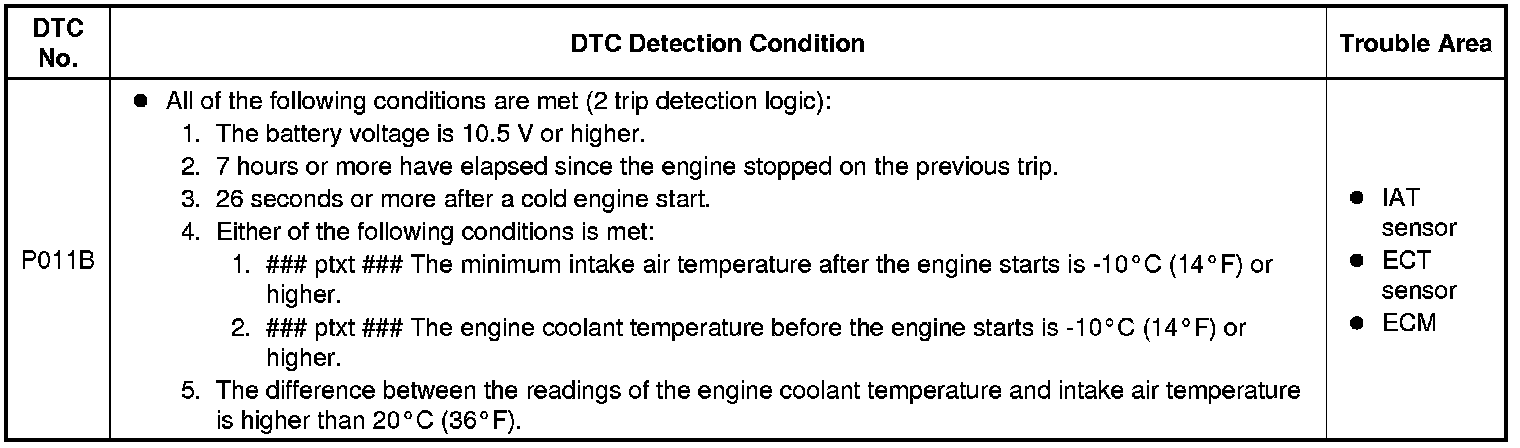

HINT
- Waiting is required to prevent the temperature of the engine from affecting the readings. If the engine has been operated recently, it will not be possible to accurately compare the readings.
- For diagnosis, in order to duplicate the detection conditions of the DTC, it is necessary to park the vehicle for 7 hours. Parking the vehicle for 7 hours ensures that the actual temperature of the ECT and IAT are very similar. When the vehicle has been parked for less than 7 hours, differences in the readings may exist, this does not necessarily indicate a fault.
MONITOR DESCRIPTION

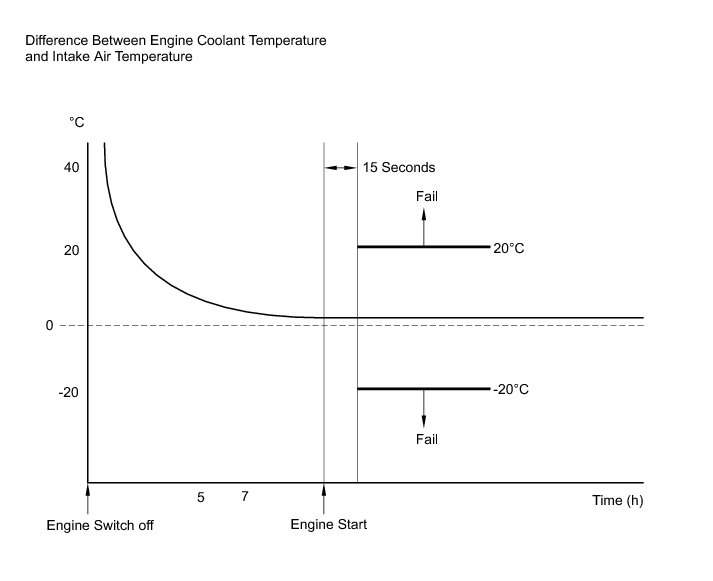

The ECM monitors the difference between the Engine Coolant Temperature (ECT) and the Intake Air Temperature (IAT) when the engine is started cold to detect the engine temperature conditions accurately. The monitor runs when the engine started cold after 7 hours or more has elapsed since the engine was stopped (engine switch turned off) on the previous trip. If the difference between the ECT and the IAT on a cold start exceeds 20°C (36°F), the ECM interprets this as a malfunction in the ECT sensor circuit and IAT sensor circuit, and sets the DTC.

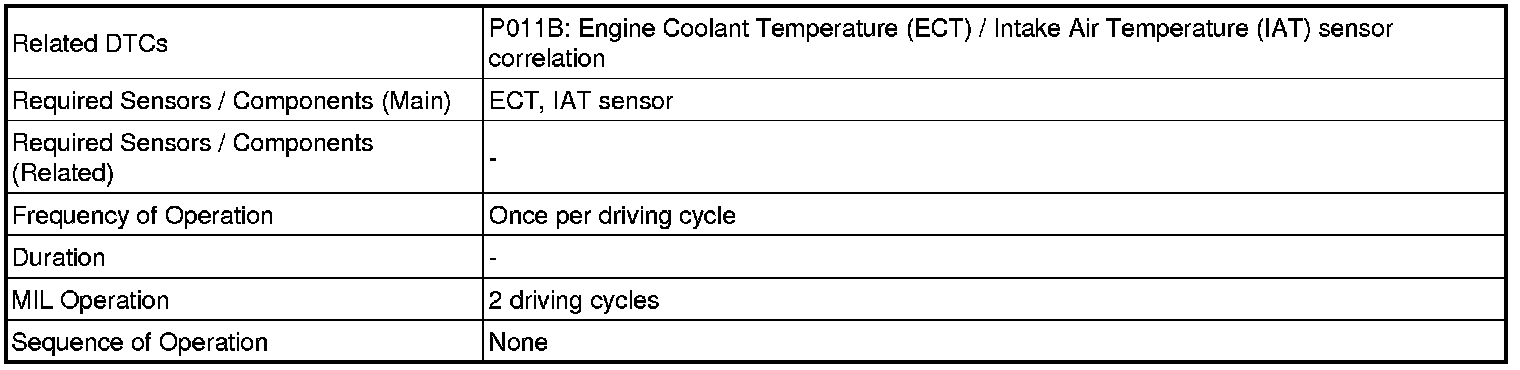

MONITOR STRATEGY

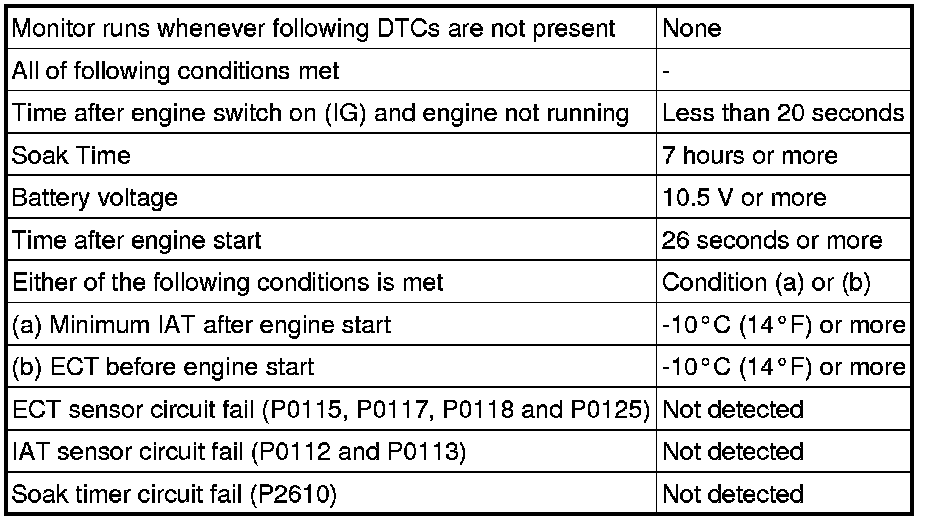

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
CONFIRMATION DRIVING PATTERN

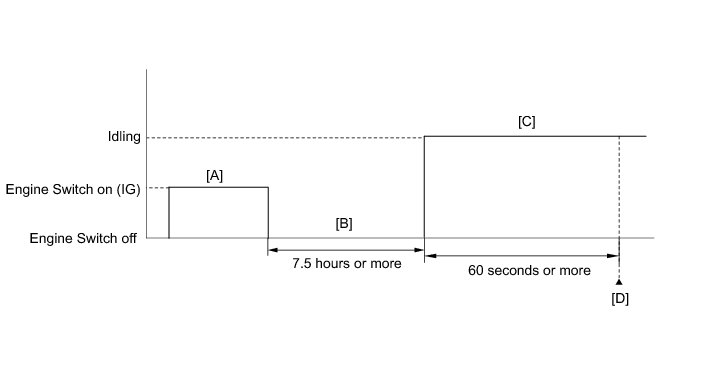

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on [A].
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
4. Turn the engine switch off [B].
5. With the engine stopped, leave the vehicle as is for 7.5 hours or more.
6. Turn the engine switch on (IG) and turn the Techstream on.
7. Start the engine and wait 60 seconds or more [C].
8. Enter the following menus: Powertrain / Engine / Trouble Codes.
9. Read the pending DTC [D].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P011B.
12. Check the DTC judgment result.
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or N/A, perform steps [B] through [D] again.
13. If no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE
HINT
Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P011B)
(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Read the DTCs.

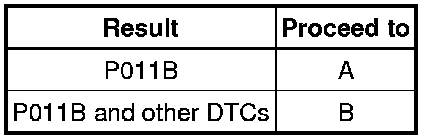

Result:
HINT
If any DTCs other than P011B are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. READ VALUE USING TECHSTREAM (INTAKE AIR TEMPERATURE)
(a) Leave the vehicle for 7 hours or more.
HINT
It is necessary leave the vehicle for 7 hours or more to allow conditions similar to the DTC detection conditions.
(b) Connect Techstream to the DLC3.
(c) Turn the engine switch on (IG).
(d) Turn the Techstream on.
(e) Enter the following menus: Powertrain / Engine / All Data / Intake Air.
(f) Read the value displayed on the Techstream.
OK:
Difference between the intake air temperature and the actual outside air temperature is within 10°C (18°F).
HINT
Temperature readings on the vehicle's outside temperature gauge (if equipped) are not suitable for comparing to the intake air temperature reading. The outside temperature gauge has a significant delay built in to prevent temperature swings from being displayed on its display. Use an accurate thermometer to determine the outside air temperature.
NG -- REPLACE MASS AIR FLOW METER Removal
OK -- Continue to next step.
3. READ VALUE USING TECHSTREAM (COOLANT TEMPERATURE)
(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / All Data / Coolant Temp.
(e) Read the value displayed on the Techstream.
OK:
The difference between the coolant temperature and the actual outside air temperature is within 10°C (18°F).
HINT
If the result is not as specified, check that there are heat sources such as a block heater in the engine compartment.
NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal
OK -- REPLACE ECM Removal
