P0116

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0116: Engine Coolant Temperature Circuit Range / Performance Problem

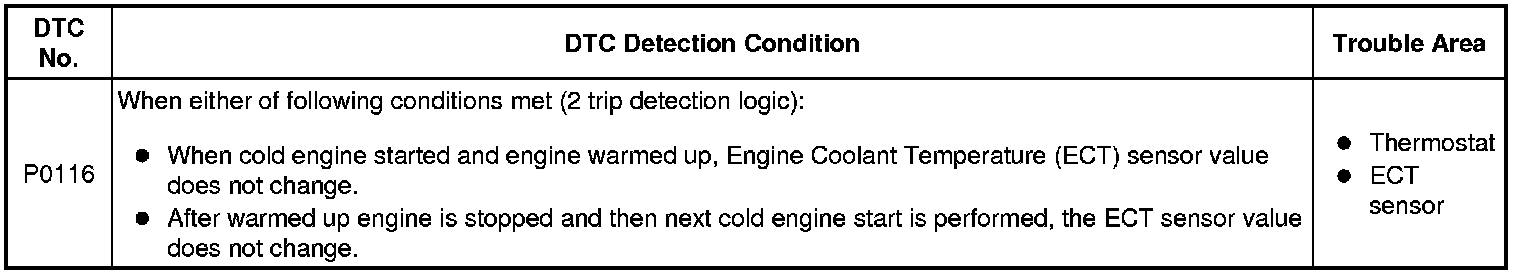

P0116 - Engine Coolant Temperature Circuit Range / Performance Problem

DESCRIPTION

Refer to DTC P0115 P0115.





MONITOR DESCRIPTION

ECT sensor cold start monitor

When a cold engine start is performed and then the engine is warmed up, if the ECT sensor value does not change, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

ECT sensor soak monitor

After a warmed up engine is started, if the ECT sensor value does not change when the engine is stopped and then the next cold engine start is performed, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

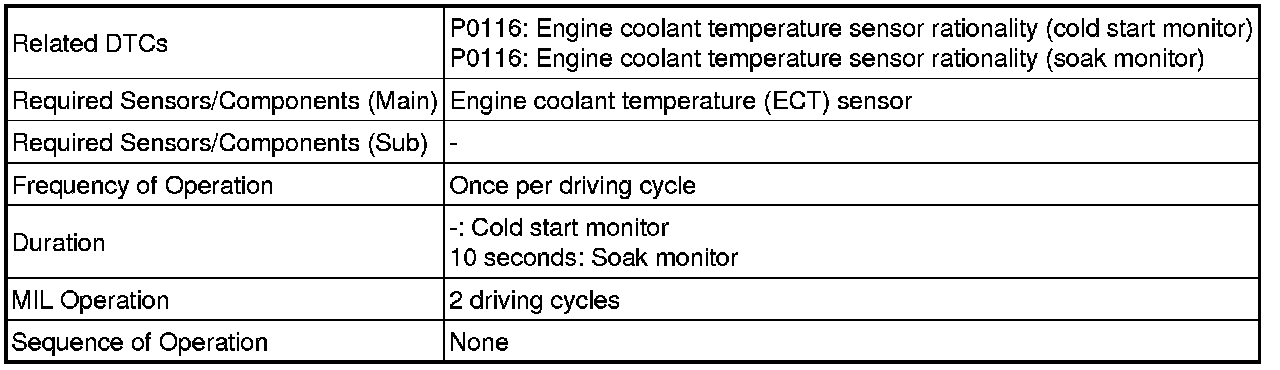

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

All

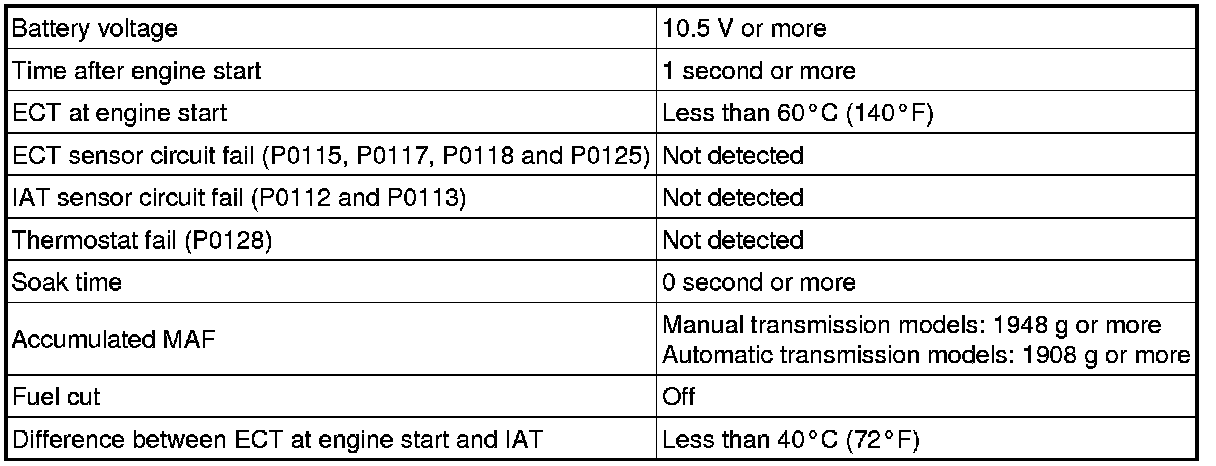

Cold Start Monitor

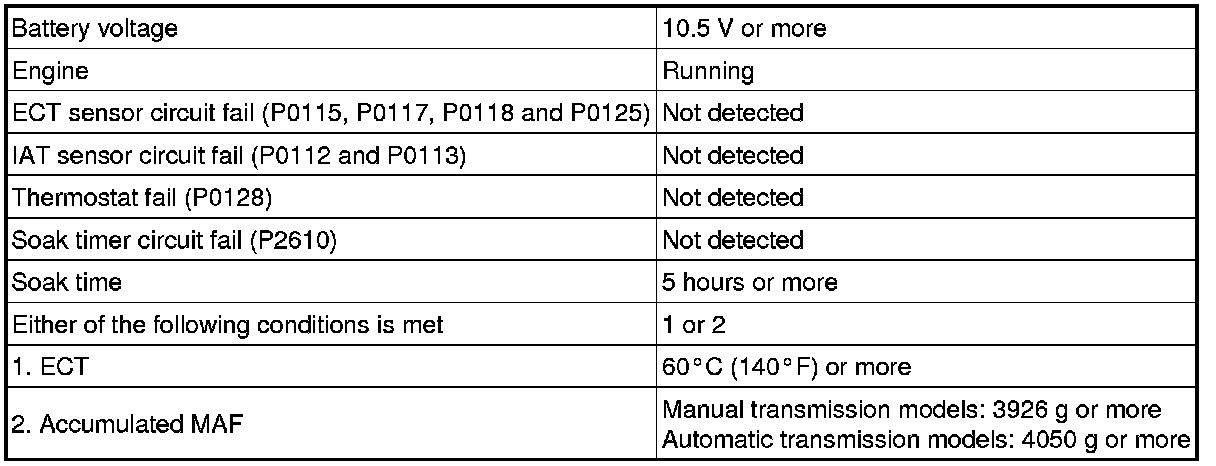

Soak Monitor





TYPICAL MALFUNCTION THRESHOLDS

Cold Start Monitor





Soak Monitor





COMPONENT OPERATING RANGE

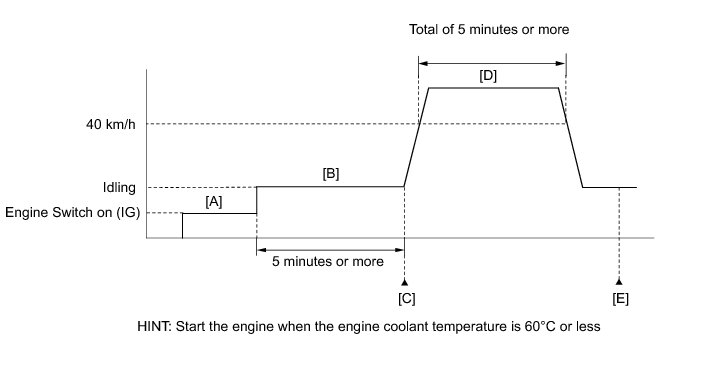

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Enter the following menu items: Powertrain / Engine / Data List / Coolant Temp.

4. Check that the engine coolant temperature is 60°C (140°F) or less.

5. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

6. Turn the engine switch off and wait for at least 30 seconds.

7. Turn the engine switch on (IG) and turn the Techstream on [A].

8. Start the engine and idle it for 5 minutes or more [B].

HINT
If the engine coolant temperature does not change by 5°C (9°F) or higher, the engine coolant temperature sensor is malfunctioning. It is not necessary to continue this procedure.

9. Enter the following menus: Powertrain / Engine / Trouble Codes.

10. Read the pending DTC [C].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12. Input the DTC: P0116.

13. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result sows INCOMPLETE or N/A, perform steps [D] and [E].

14. Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more [D].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
In the event of the drive pattern being interrupted (possibly due to factors such as traffic conditions), the drive pattern can be resumed.

15. Check the DTC judgment result again [E].

HINT
If the judgment result sows INCOMPLETE or N/A, perform steps [D] and [E] again.

16. If no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

HINT
- If any of DTCs P0115, P0117 or P0118 are set simultaneously with DTC P0116, the ECT sensor may have an open or a short circuit. Troubleshoot those DTCs first.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0116)

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTC.

Result:





HINT
If any DTCs and other than P0116 are output, troubleshoot those DTCs first.

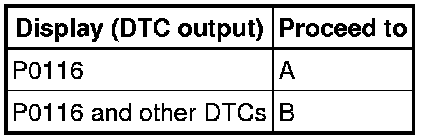

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. INSPECT THERMOSTAT

(a) Inspect the thermostat Testing and Inspection.

NG -- REPLACE THERMOSTAT Removal

OK -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal
