4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0017, P0019: Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B)
P0019 - Crankshaft Position - Camshaft Position Correlation (Bank 2 Sensor B)

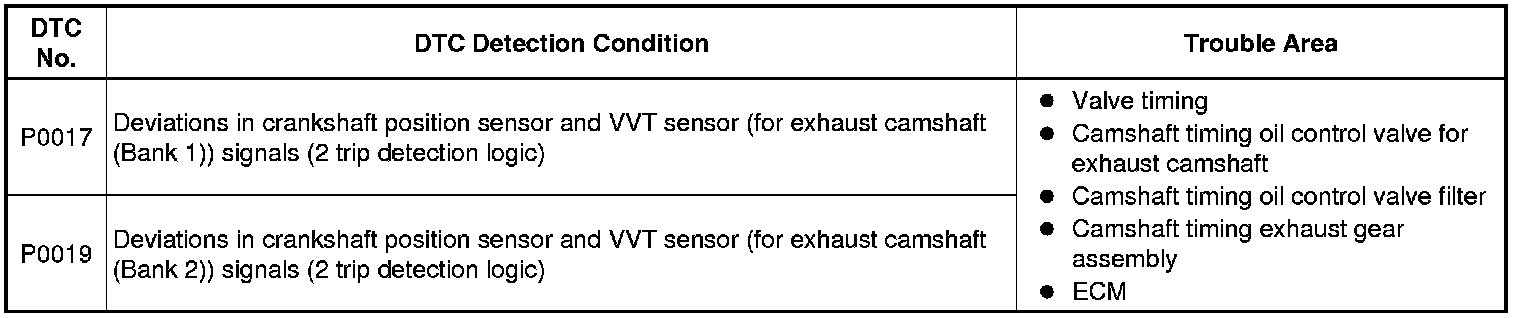

DESCRIPTION
In the VVT (Variable Valve Timing) system, the appropriate exhaust valve open and close timing is controlled by the ECM. The ECM performs exhaust valve control by performing the following: 1) controlling the exhaust camshaft and camshaft timing oil control valve assembly (for exhaust camshaft), and operating the camshaft timing exhaust gear assembly; and 2) changing the relative positions of the camshaft and crankshaft.
MONITOR DESCRIPTION
To monitor the correlation of the exhaust camshaft position and crankshaft position, the ECM checks the VVT learning value while the engine is idling. The VVT learning value is calibrated based on the camshaft position and crankshaft position. The exhaust valve timing is set to the most advanced angle while the engine is idling. If the VVT learning value is out of the specified range in consecutive driving cycles, the ECM illuminates the MIL and sets the DTC P0017 (Bank 1) or P0019 (Bank 2).

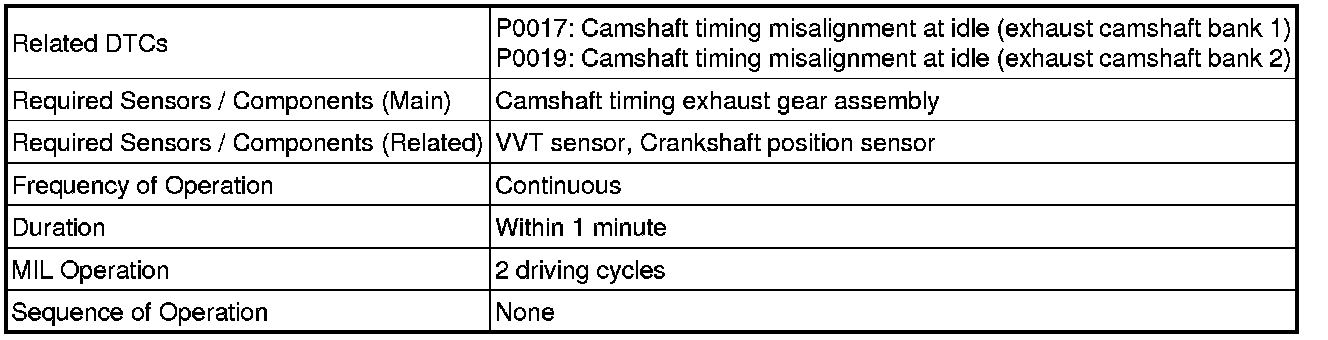

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS

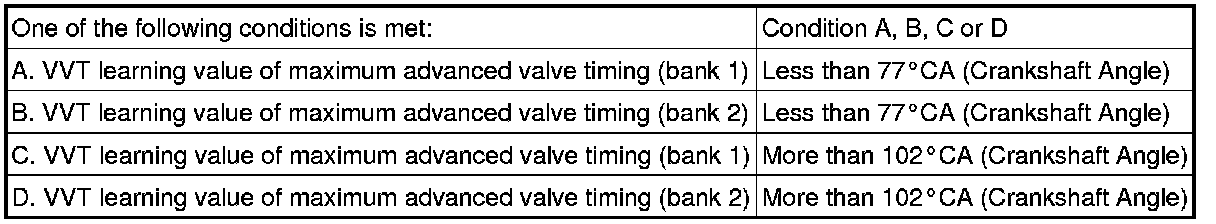

TYPICAL MALFUNCTION THRESHOLDS

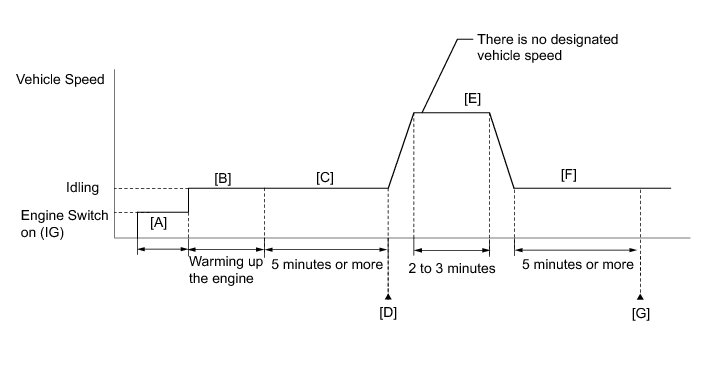

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
4. Turn the engine switch off and wait for at least 30 seconds.
5. Turn the engine switch on (IG) and turn the Techstream on [A].
6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
7. Idle the engine for 5 minutes or more [C].
8. Enter the following menus: Powertrain / Engine / Trouble Codes.
9. Read the pending DTC [D].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P0017 or P0019.
12. Check the DTC judgment result.
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or N/A, perform steps [E] through [G].
13. Drive the vehicle for 2 to 3 minutes [E].
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
14. Idle the engine for 5 minutes or more [F].
15. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
16. Read the pending DTCs [G].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
17. Check the DTC judgment result.
18. If the judgment result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P0013 P0013.
INSPECTION PROCEDURE
HINT
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0017 AND P0019)
(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Trouble Codes.
(d) Read the DTCs.

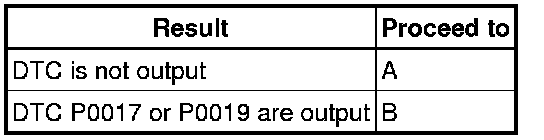

Result:
HINT
If any DTCs other than P0017 or P0019 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT EXHAUST LINEAR (BANK 1 OR BANK 2))
(a) Connect Techstream to the DLC3.
(b) Start the engine and turn the Techstream on.
(c) Warm up the engine.
(d) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Exhaust Linear (Bank 1) or Control the VVT Exhaust Linear (Bank 2).
(e) Check the engine speed while operating the oil control valve using the Techstream.

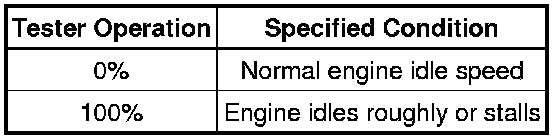

OK:
HINT
Refer to "Data List / Active Test" [VVT Ex OCV Duty #1, VVT Ex Chg Angle #1, VVT Ex OCV Duty #2 and VVT Ex Chg Angle #2] Data List / Active List.
NG -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMP TEETH ON TIMING CHAIN)
OK -- Continue to next step.
3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0017 OR P0019)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG) and turn the Techstream on.
(g) Start the engine and warm it up.
(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(i) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
(j) Read the pending DTCs.

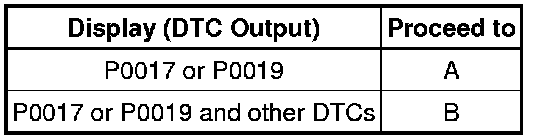

Result:
HINT
DTC P0017 or P0019 may be stored when foreign objects in the engine oil are caught in some parts of the system. The DTC will remain set even if the system returns to normal after a short time. Those foreign objects may then be captured by the oil filter.
B -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMP TEETH ON TIMING CHAIN)
A -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
4. CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMP TEETH ON TIMING CHAIN)
(a) Remove the cylinder head covers RH and LH.
(b) Turn the crankshaft to align the matchmarks of the crankshaft.
(c) Align the notch of the crankshaft pulley to the "0" position.
(d) Check if the matchmarks of the camshaft pulley and camshaft bearing cap align.
(e) Turn the crankshaft clockwise by 360° if the matchmarks do not align. Check if they align once again.
OK:
The matchmarks of the camshaft pulley and the camshaft bearing cap align when the notch of the crankshaft pulley is in the "0" position.
(f) Reinstall the cylinder head cover RH and LH.
NG -- ADJUST VALVE TIMING Reassembly
OK -- Continue to next step.
5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT)
(a) Inspect the camshaft timing oil control valve (for exhaust camshaft) Inspection.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT) Removal
OK -- Continue to next step.
6. CHECK OIL CONTROL VALVE FILTER AND OIL PIPE
(a) Remove the oil pipe No. 1 or No. 2.
(b) Remove the oil control valve filter.
(c) Check that the filter and pipe are not clogged.
OK:
The filter and pipe are not clogged.
(d) Reinstall the oil pipe No. 1 or No. 2.
NG -- REPLACE OIL CONTROL VALVE FILTER OR OIL PIPE Disassembly
OK -- Continue to next step.
7. REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
(a) Replace the camshaft timing exhaust gear assembly (bank 1 or bank 2) Removal.
NEXT -- Continue to next step.
8. CHECK WHETHER DTC OUTPUT RECURS (DTC P0017 OR P0019)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG) and turn the Techstream on.
(g) Start the engine and warm it up.
(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(i) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
(j) Read the pending DTCs.
Result:
B -- REPLACE ECM Removal
A -- END
