4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0011, P0012, P0021, P0022: Camshaft Position "A" - Timing Over-Advanced or System Performance (Bank 1)
P0022 - Camshaft Position "A" - Timing Over-Retarded (Bank 2)

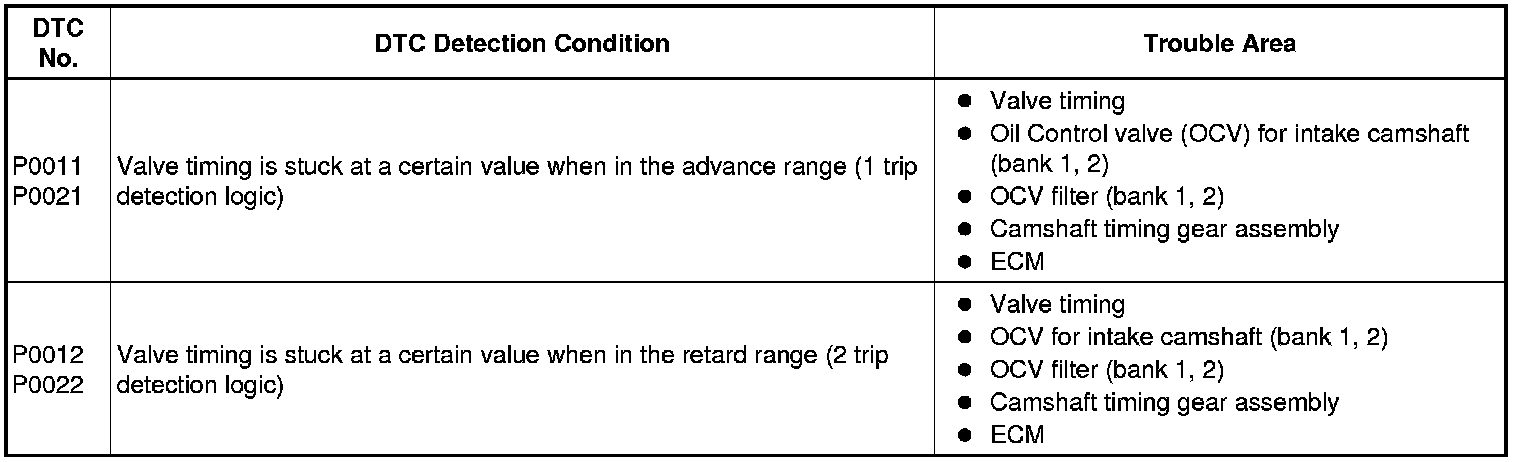

DESCRIPTION

Refer to DTC P0010 P0010.





MONITOR DESCRIPTION

- The ECM optimizes the intake valve timing using the Variable Valve Timing (VVT) system to control the intake camshaft. The VVT system includes the ECM, the camshaft timing oil control valve assembly (for intake camshaft) and the VVT controller (camshaft timing gear assembly). The ECM sends a target duty-cycle control signal to the camshaft timing oil control valve assembly (for intake camshaft). This control signal regulates the oil pressure supplied to the VVT controller. The VVT controller can advance or retard the intake camshaft.

- If the difference between the target and actual intake valve timing is large, and changes in the actual intake valve timing are small, the ECM interprets this as a VVT controller stuck malfunction and stores a DTC.

- Example:

- A DTC is set when the following conditions "A" and "B" are met:

a. It takes 5 seconds or more to change the valve timing by 5°CA (Condition "A").

b. After the above condition is met, the camshaft timing oil control valve assembly (for intake camshaft) is forcibly activated for 10 seconds (Condition "B").

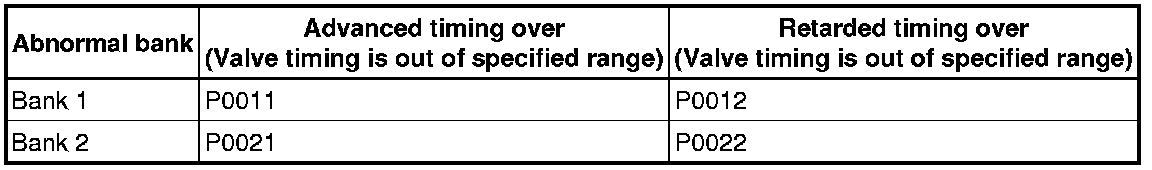

- DTCs P0011 and P0021 (Advanced Cam Timing) are subject to 1 trip detection logic.

- DTCs P0012 and P0022 (Retarded Cam Timing) are subject to 2 trip detection logic.

- These DTCs indicate that the VVT controller cannot operate properly due to a camshaft timing oil control valve assembly (for intake camshaft) malfunction or the presence of foreign objects in the camshaft timing oil control valve assembly (for intake camshaft).

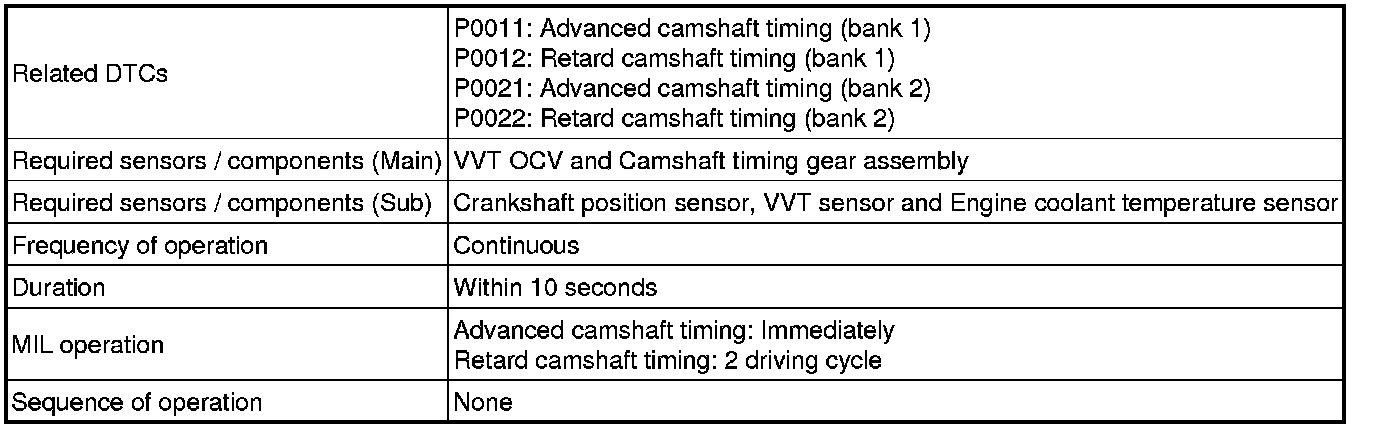

MONITOR STRATEGY

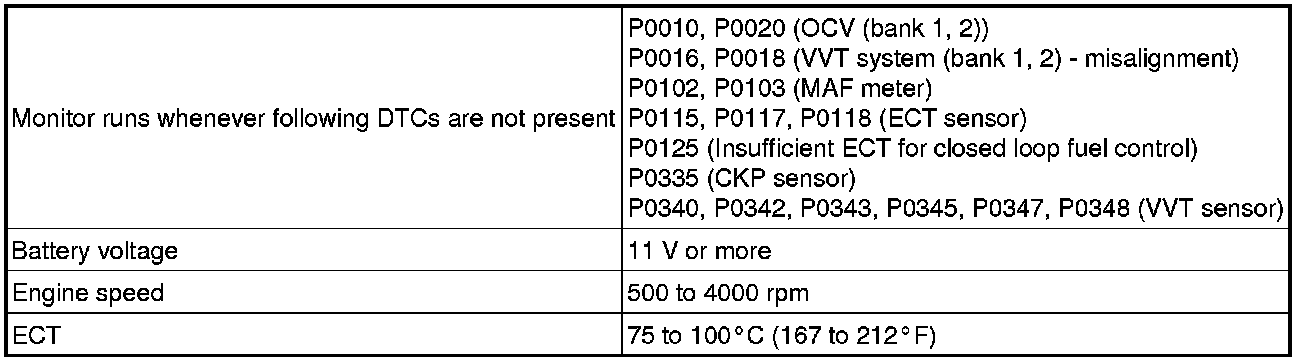

TYPICAL ENABLING CONDITIONS

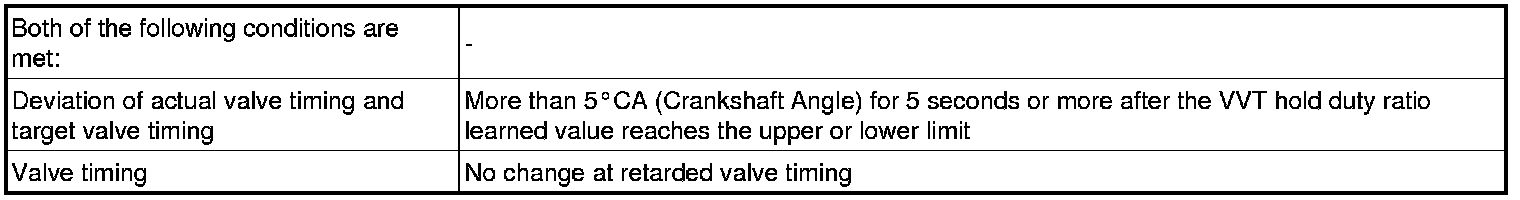

TYPICAL MALFUNCTION THRESHOLDS

Advanced camshaft timing:





Retard camshaft timing:





- If the difference between the target and actual camshaft timing is greater than the specified value, the ECM operates the VVT controller for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.

MONITOR RESULT

Refer to Checking Monitor Status Mode 6 Data.

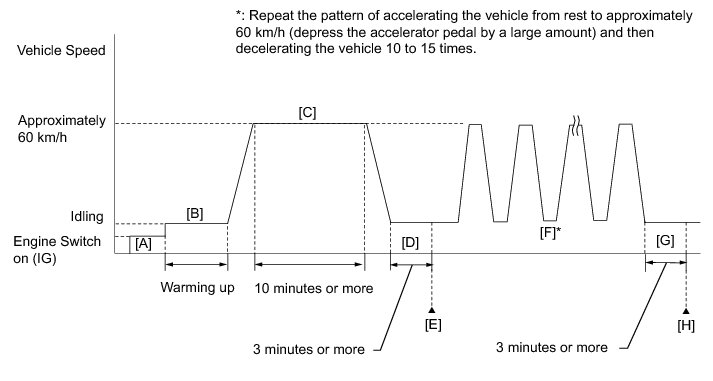

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

7. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

8. Idle the engine for 3 minutes or more [D].

9. Enter the following menus: Powertrain / Engine / Trouble Codes [E].

10. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12. Input the DTC: P0011, P0012, P0021 or P0022.

13. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, perform steps [F] through [H].

14. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
Depress the accelerator pedal by a large amount.

15. Idle the engine for 3 minutes or more [G].

16. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

17. Read the pending DTCs [H].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

18. Check the DTC judgment result again.

HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, perform the following procedure.

19. Perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

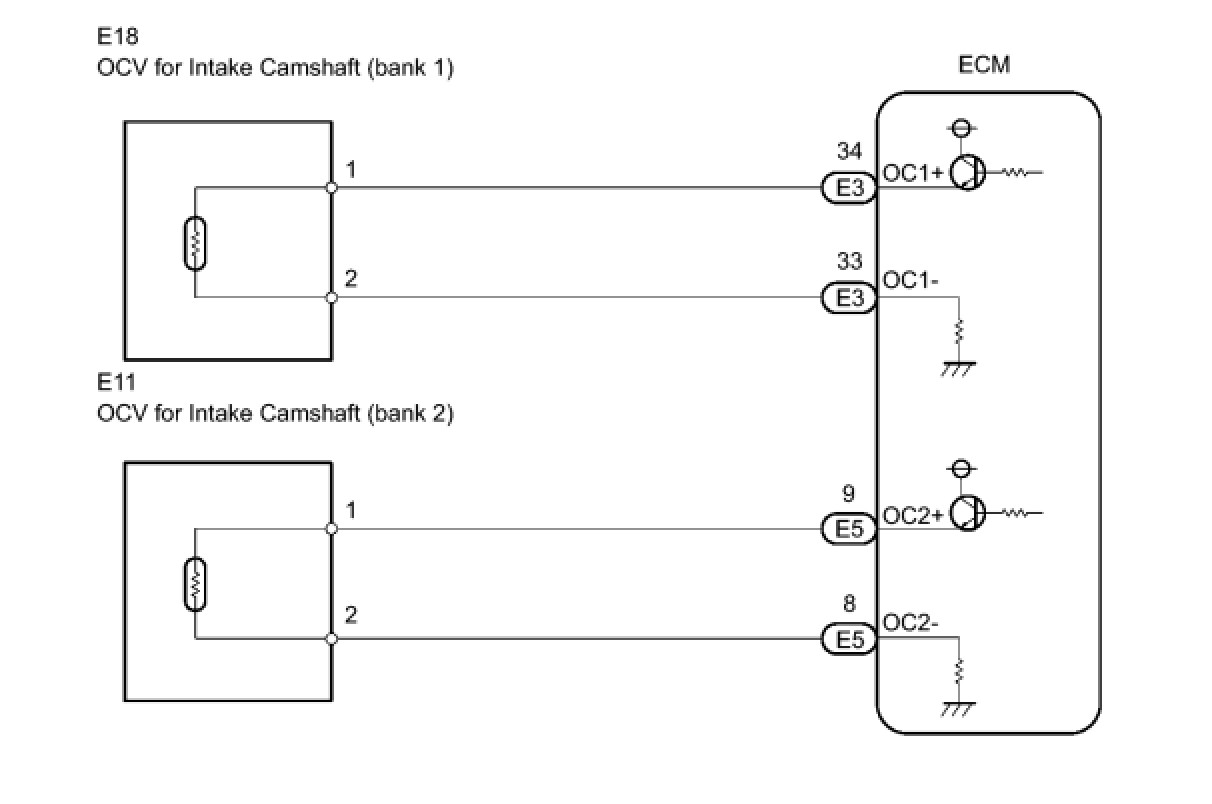

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT






- If DTC P0011 or P0012 is displayed, check the right bank VVT system for intake camshaft circuit (bank 1).
- If DTC P0021 or P0022 is displayed, check the left bank VVT system for intake camshaft circuit (bank 2).
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- DTC P0011, P0012, P0021 or P0022 may be stored when foreign objects in the engine oil are caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. Those foreign objects may then be captured by the oil filter.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0011, P0012, P0021 OR P0022)

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG) and turn the Techstream on.

(c) Enter the following menus: Powertrain / Engine / Trouble Codes.

(d) Read DTCs.

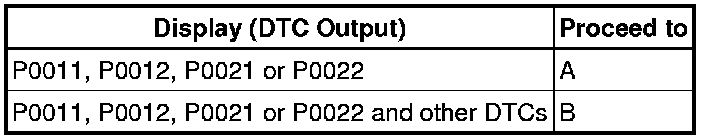

Result:





HINT
If any DTCs other than P0011, P0012, P0021 or P0022 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT LINEAR (BANK 1 OR BANK 2))

(a) Connect Techstream to the DLC3.

(b) Start the engine and turn the Techstream on.

(c) Warm up the engine.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Linear (Bank 1) or Control the VVT Linear (Bank 2).

(e) Check the engine speed while operating the Oil Control Valve (OCV) using the Techstream.

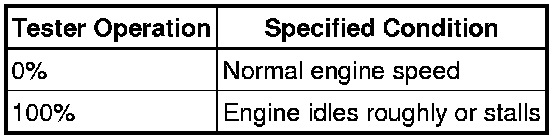

OK:





HINT
Refer to "Data List / Active Test" [VVT OCV Duty #1, VVT Change Angle #1, VVT OCV Duty #2 and VVT Change Angle #2] Data List / Active List.

NG -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)
OK -- Continue to next step.

3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0011, P0012, P0021 OR P0022)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG) and turn the Techstream on.

(g) Start the engine and warm it up.

(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

(j) Read the pending DTCs.

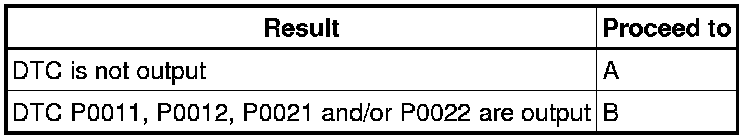

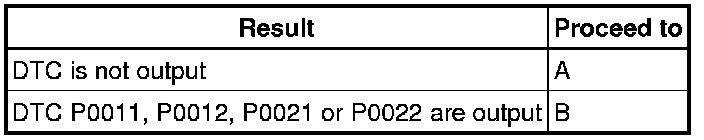

Result:





HINT
DTC P0011, P0012, P0021 or P0022 may be stored when foreign objects in the engine oil are caught in some parts of the system. The DTC will remain set even if the system returns to normal after a short time. Those foreign objects may then be captured by the oil filter.

B -- CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

A -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

4. CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

(a) Remove the cylinder head covers RH and LH.





(b) Turn the crankshaft pulley, and align its groove with the timing mark "0" of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gears are aligned with the timing marks of the bearing cap as shown in the illustration.

If not, turn the crankshaft 1 revolution (360°), then align the marks as above.

OK:

Timing marks on camshaft timing gears are aligned as shown in the illustration.

(d) Reinstall the cylinder head covers.

NG -- ADJUST VALVE TIMING Reassembly
OK -- Continue to next step.

5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Inspect the camshaft timing oil control valve (for intake camshaft) Inspection.

NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) Removal
OK -- Continue to next step.

6. INSPECT OIL CONTROL VALVE FILTER AND OIL PIPE

(a) Remove the oil pipe No. 1 or No. 2.





(b) Remove the oil control valve filter.

(c) Check that the filter and pipe are not clogged.

OK:

The filter and pipe are not clogged.

NG -- REPLACE OIL CONTROL VALVE FILTER OR OIL PIPE Disassembly
OK -- Continue to next step.

7. REPLACE CAMSHAFT TIMING GEAR ASSEMBLY

(a) Replace the camshaft timing gear assembly (bank1 or bank 2) Removal.

NEXT -- Continue to next step.

8. CHECK WHETHER DTC OUTPUT RECURS (DTC P0011, P0012, P0021 OR P0022)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the engine switch off and wait for at least 30 seconds.

(f) Turn the engine switch on (IG) and turn the Techstream on.

(g) Start the engine and warm it up.

(h) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

(j) Read the pending DTCs.

Result:





B -- REPLACE ECM Removal

A -- END
