P0010

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0010, P0020: Camshaft Position "A" Actuator Circuit (Bank 1)
P0020 - Camshaft Position "A" Actuator Circuit (Bank 2)

DESCRIPTION

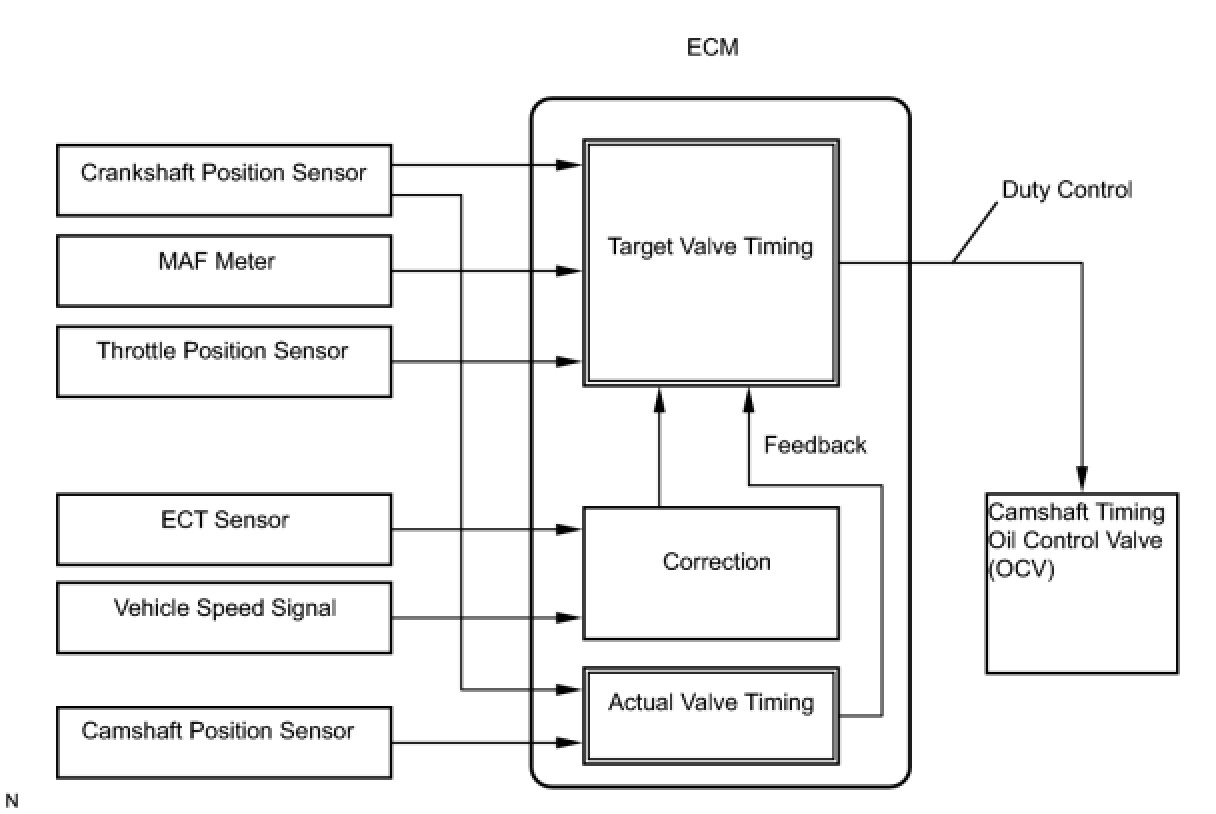

The Variable Valve Timing (VVT) system adjusts the intake valve timing to improve driveability. The engine oil pressure turns the VVT controller to adjust the valve timing.

The camshaft timing oil control valve assembly is a solenoid valve and switches the engine oil line. The valve moves when the ECM applies 12 V to the solenoid. The ECM changes the energizing time to the solenoid (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.









MONITOR DESCRIPTION

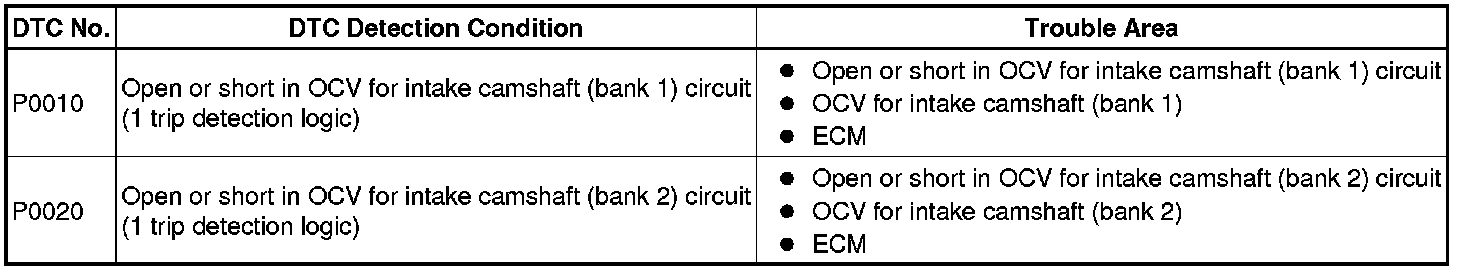

This DTC is designed to detect an open or short in the camshaft timing oil control valve assembly (for intake camshaft) circuit. If the camshaft timing oil control valve assembly duty-cycle is excessively high or low while the engine switch on (IG) or the engine is running, the ECM will illuminate the MIL and store the DTC.

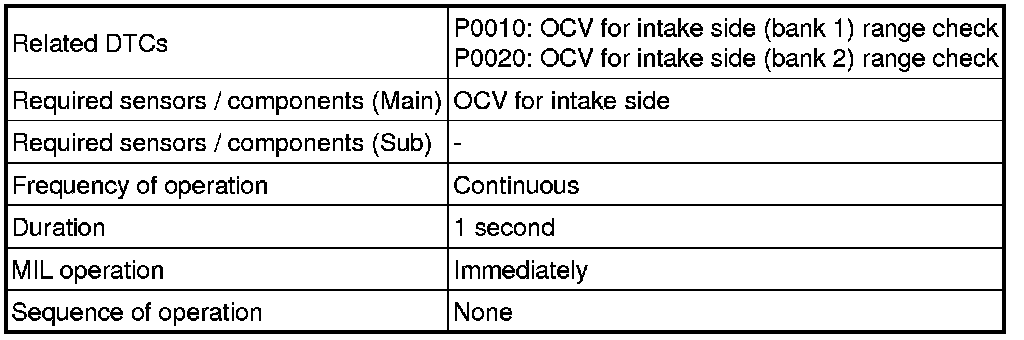

MONITOR STRATEGY

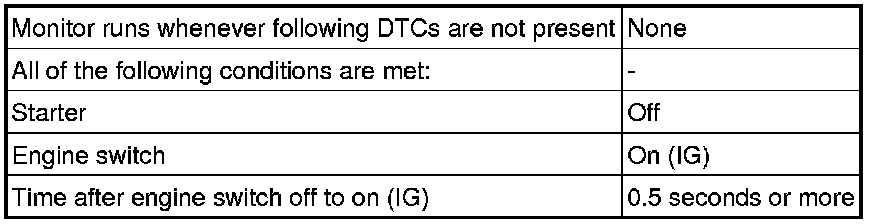

TYPICAL ENABLING CONDITIONS

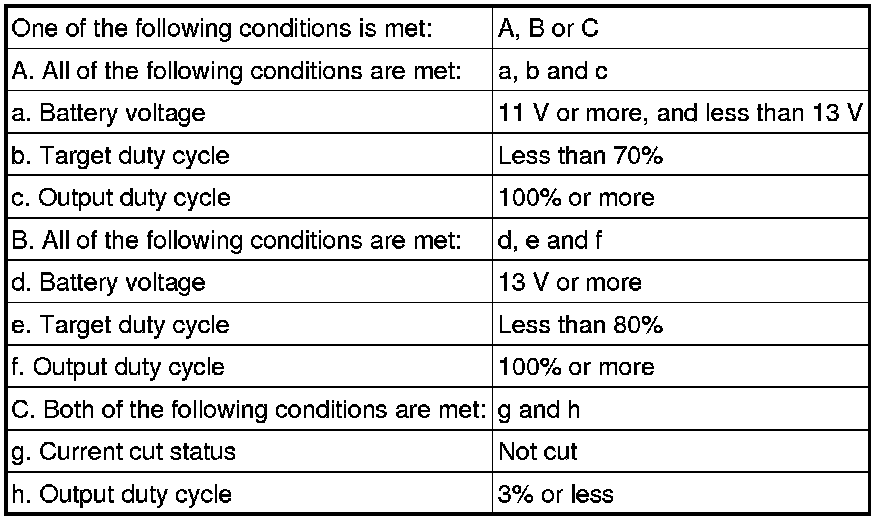

TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on.

6. Wait 5 seconds.

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the pending DTC.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P0010 or P0020.

11. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

12. If the test result is INCOMPLETE or N/A and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
- If DTC P0010 is displayed, check the right bank VVT system for intake camshaft circuit.
- If DTC P0020 is displayed, check the left bank VVT system for intake camshaft circuit.
- Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- Bank 2 refers to the bank that does not include the No. 1 cylinder.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT LINEAR (BANK 1 OR BANK 2))

(a) Connect Techstream to the DLC3.

(b) Start the engine and turn the Techstream on.

(c) Warm up the engine.

(d) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Linear (Bank 1) or Control the VVT Linear (Bank 2).

(e) Check the engine speed while operating the oil control valve (for intake camshaft) using the Techstream.

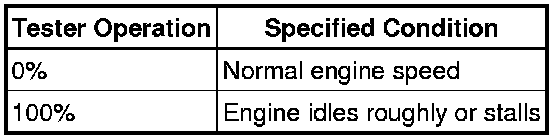

OK:





HINT
Refer to "Data List / Active Test" [VVT OCV Duty #1, VVT Change Angle #1, VVT OCV Duty #2 and VVT Change Angle #2] Data List / Active List.

NG -- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT)

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT)

(a) Inspect the camshaft timing oil control valve (for intake camshaft) Inspection.

NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR INTAKE CAMSHAFT) Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (OCV - ECM)

(a) Disconnect the E18 or E11 OCV connector.

(b) Disconnect the E3 or E5 ECM connectors.

(c) Measure the resistance according to the value(s) in the table below.

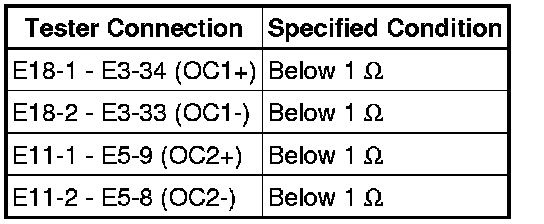

Standard resistance (check for open):

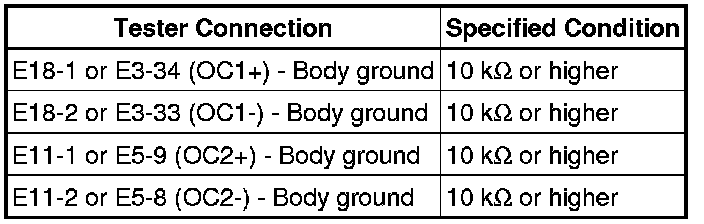

Standard resistance (check for short):





(d) Reconnect the OCV and ECM connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (OCV - ECM)

OK -- REPLACE ECM Removal
