DTC C0-41

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): C0-40, C0-41: Antenna not Connected
C0-41 - Antenna Shorted

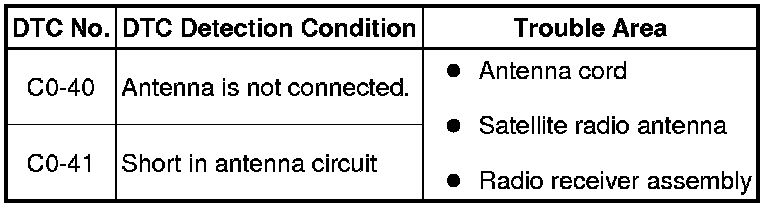

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK CONNECTOR CONNECTION CONDITION

(a) Check that the satellite radio antenna cord is securely connected to the radio receiver assembly connector.

OK:

The cord is securely connected.

NG -- RECONNECT CONNECTOR CORRECTLY
OK -- Continue to next step.

2. REPLACE SATELLITE RADIO ANTENNA

(a) Replace the satellite radio antenna Removal.

(b) Clear the DTCs Audio And Visual System (w/o Navigation System without Multi-display).

(c) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
