Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Transfer Case Four Wheel Drive Control System - UF1AE

Transfer Case Four Wheel Drive Control System - UF1AE

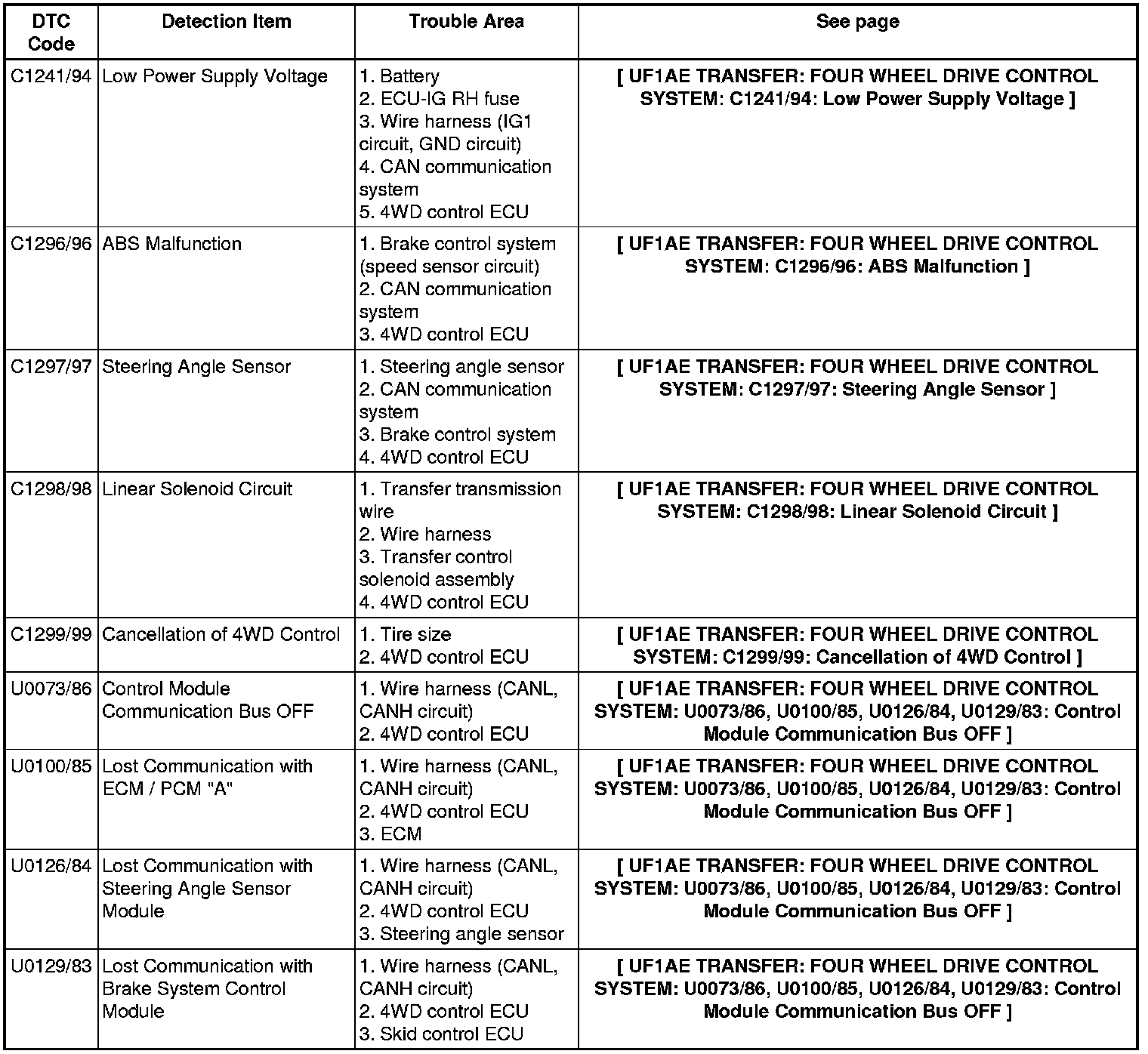

UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

FOUR WHEEL DRIVE CONTROL SYSTEM

1:
