Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Smart Access System With Push-Button Start >> Starting

Starting

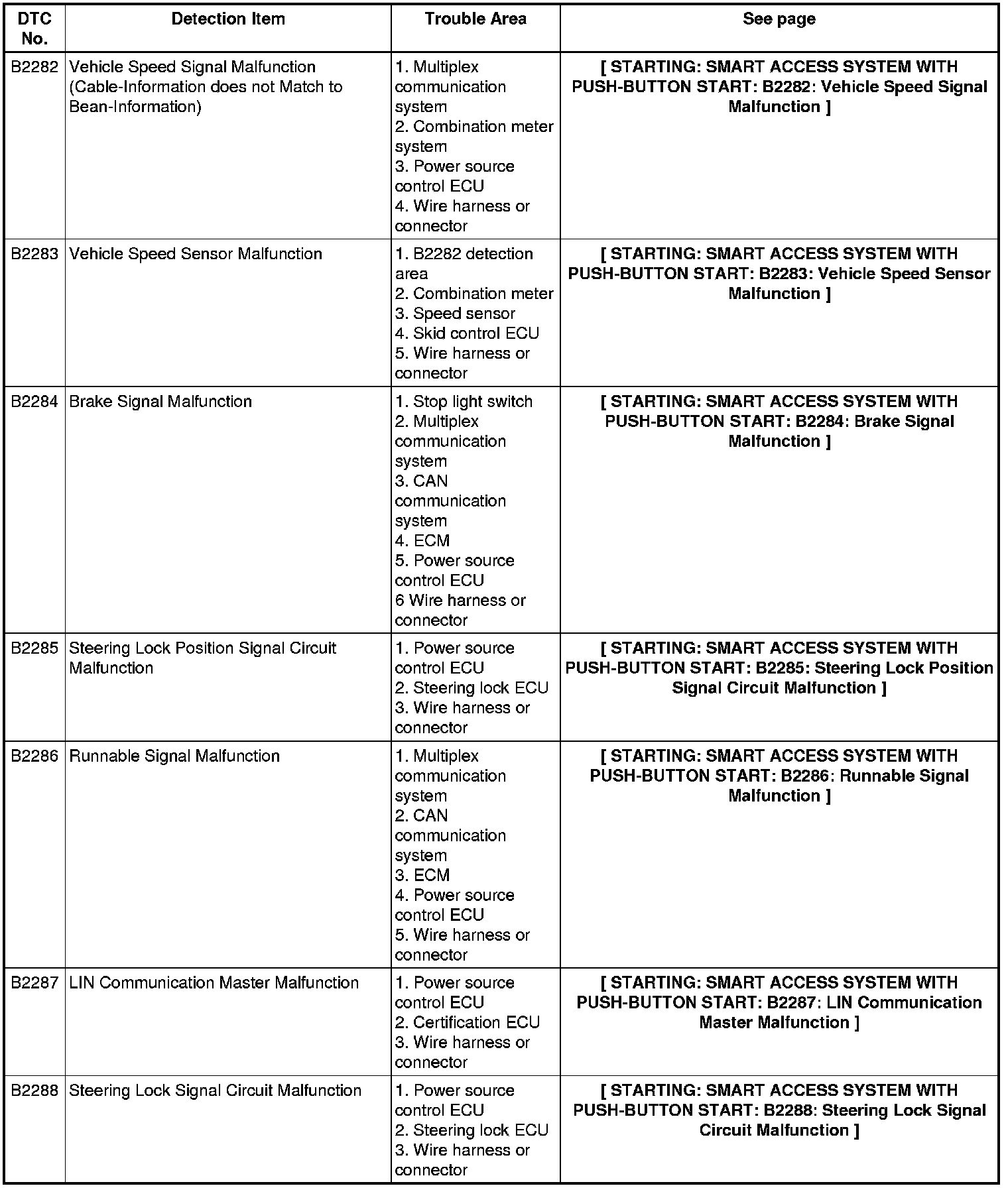

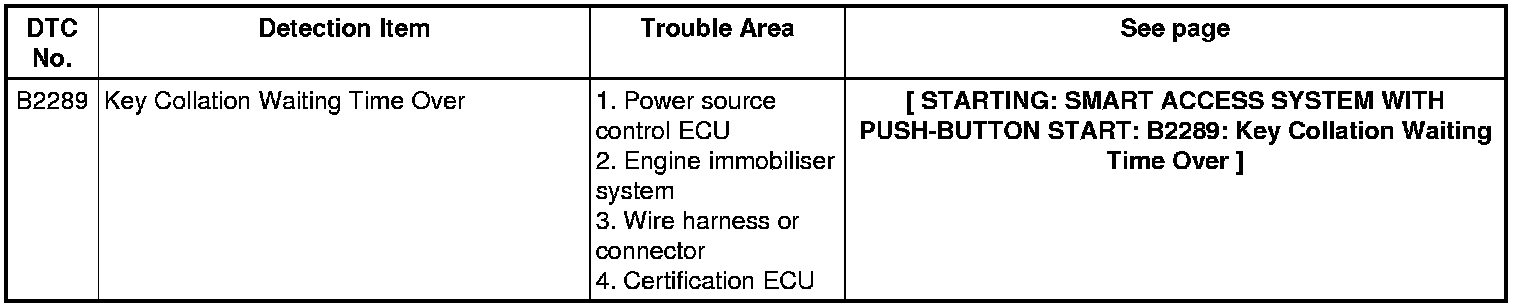

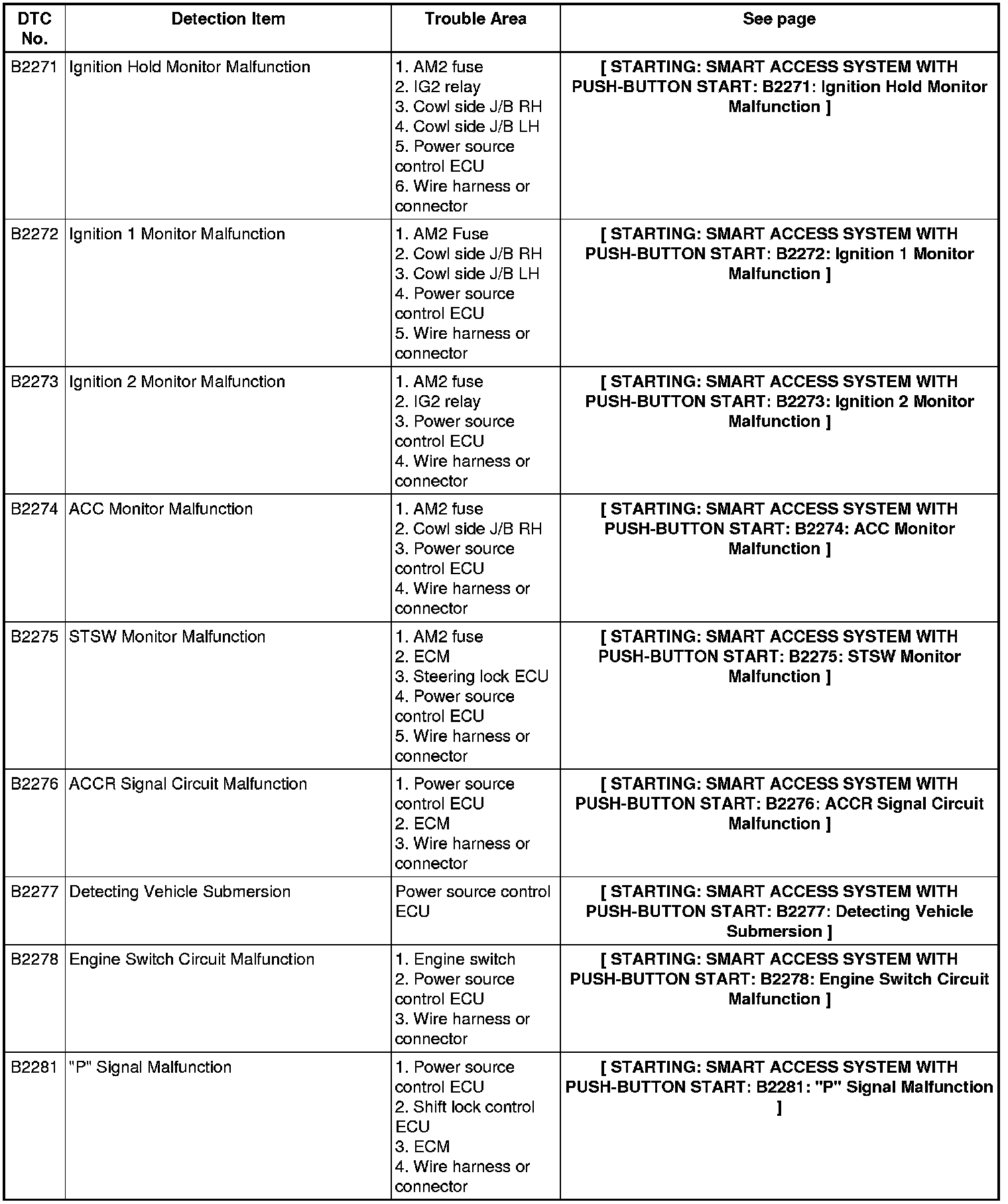

4GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: DIAGNOSTIC TROUBLE CODE CHART

SMART ACCESS SYSTEM WITH PUSH-BUTTON START

1:





1:





1:
