Automatic Transmission System - A960E

A960E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

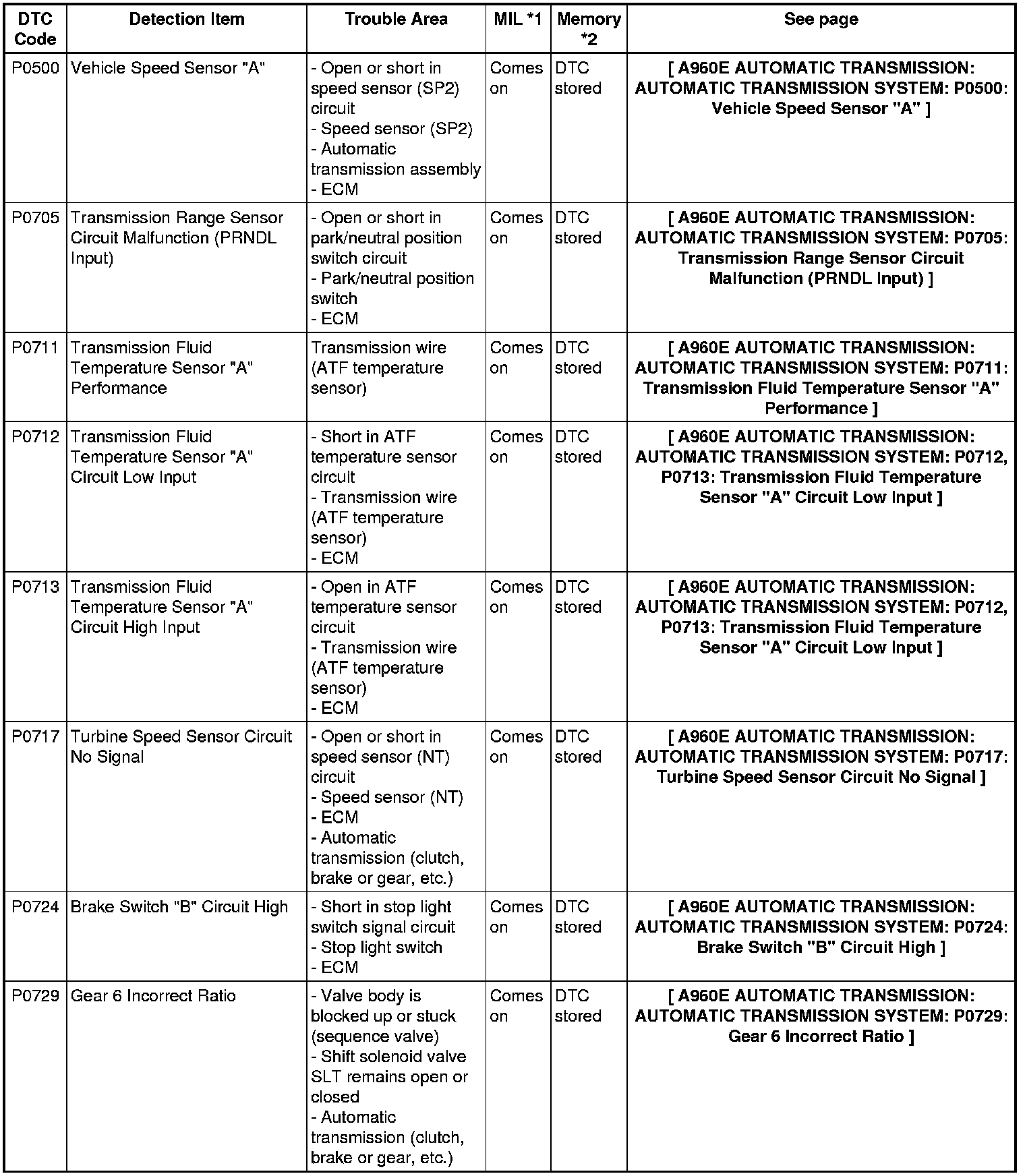

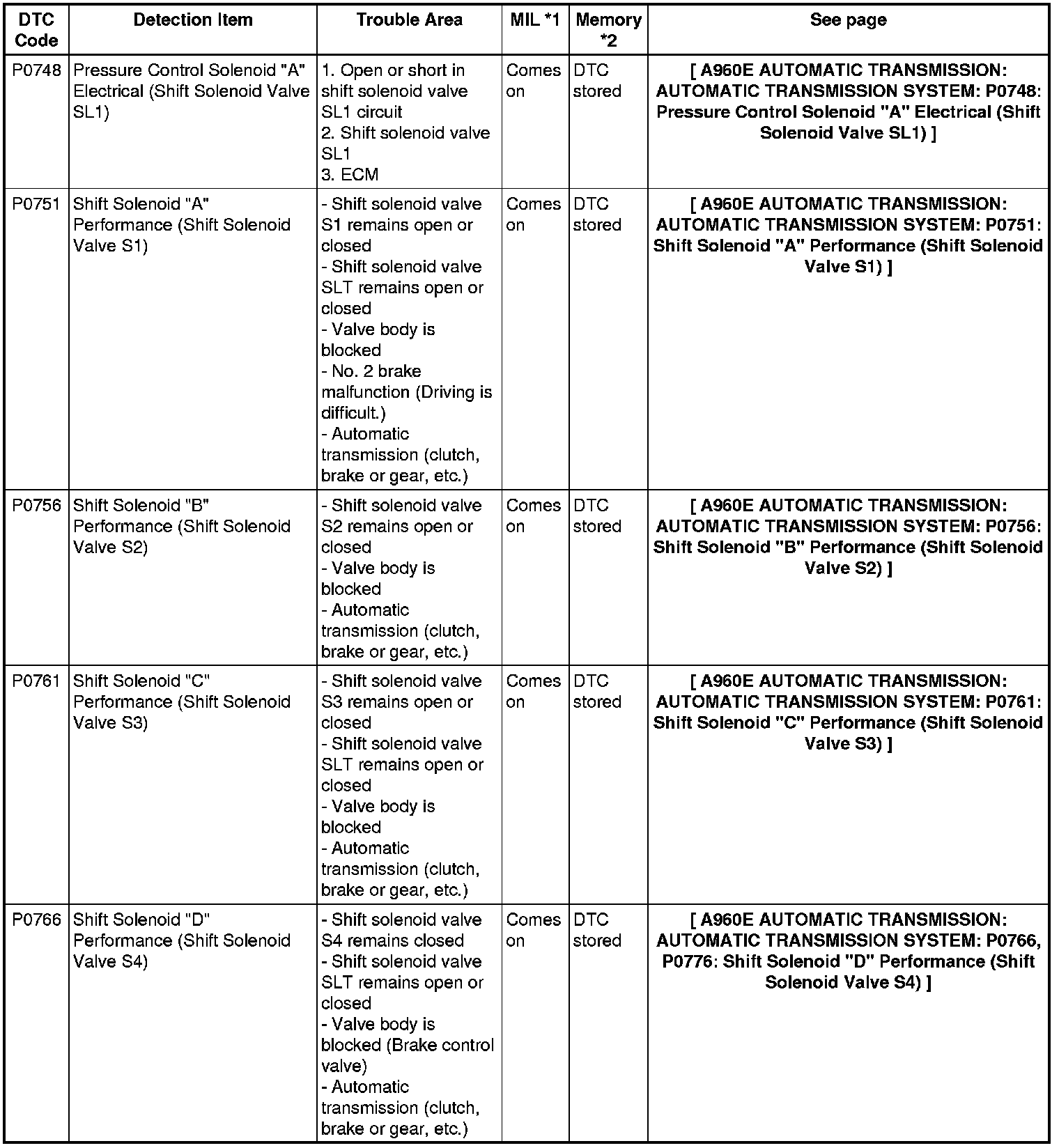

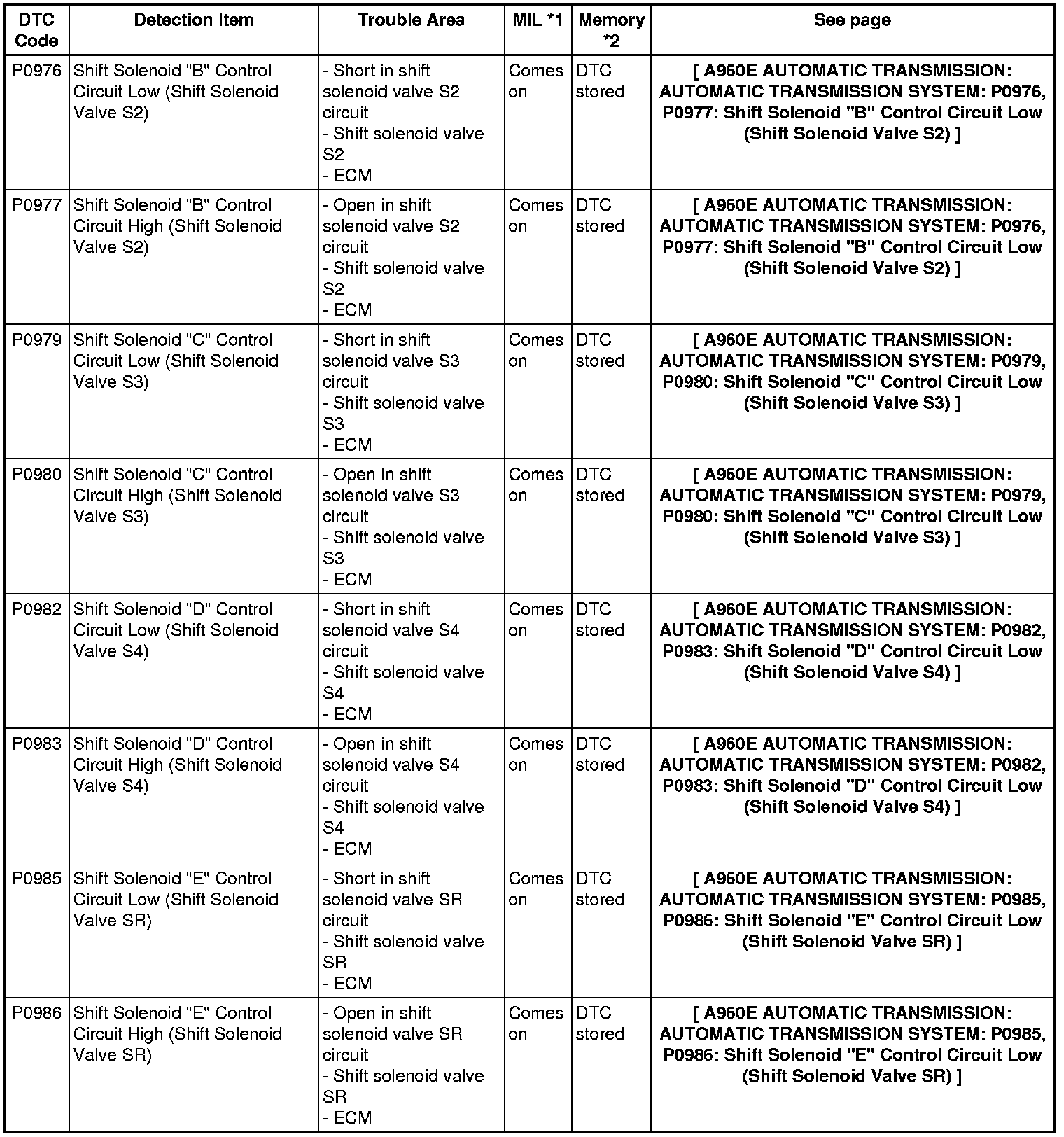

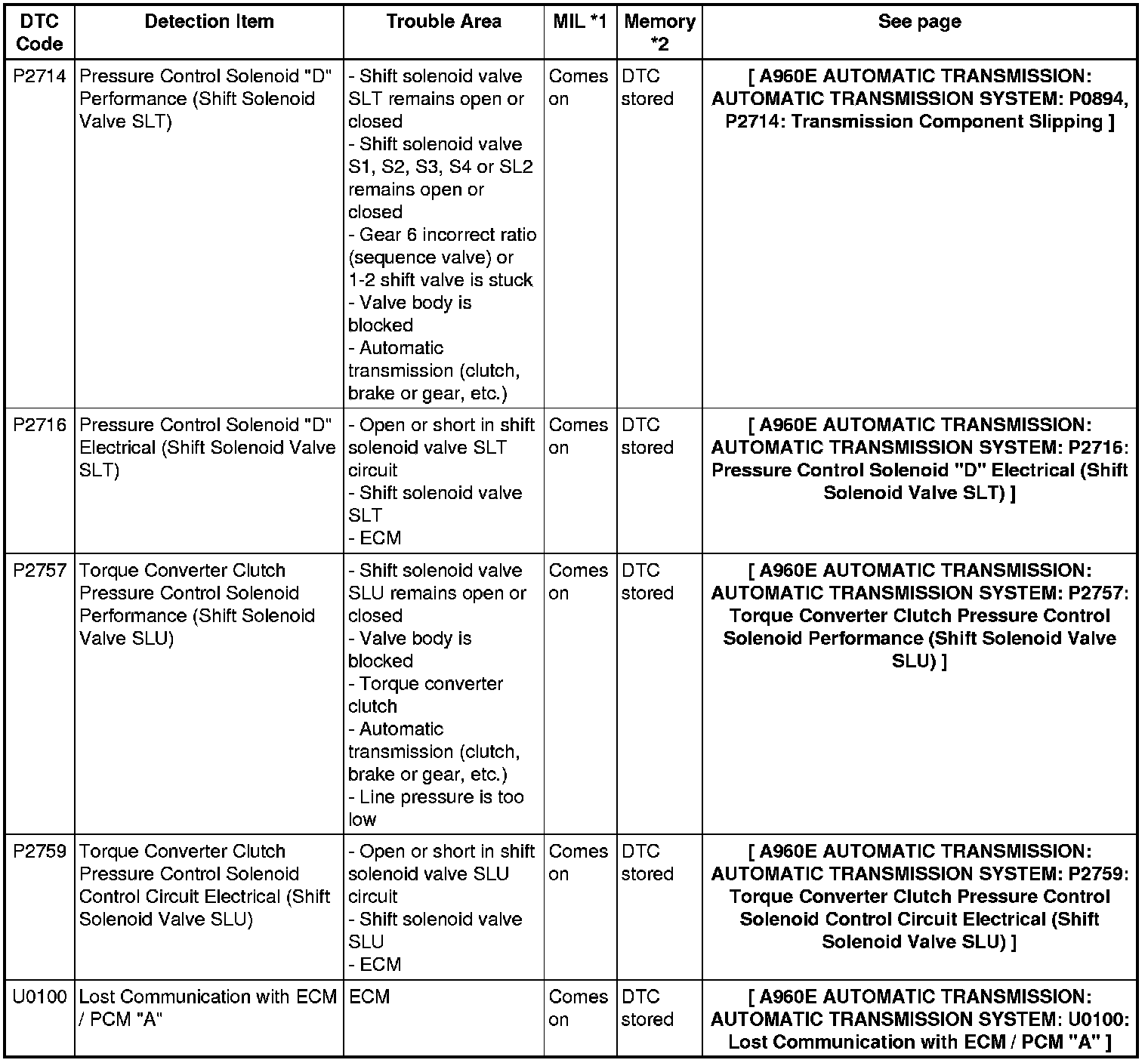

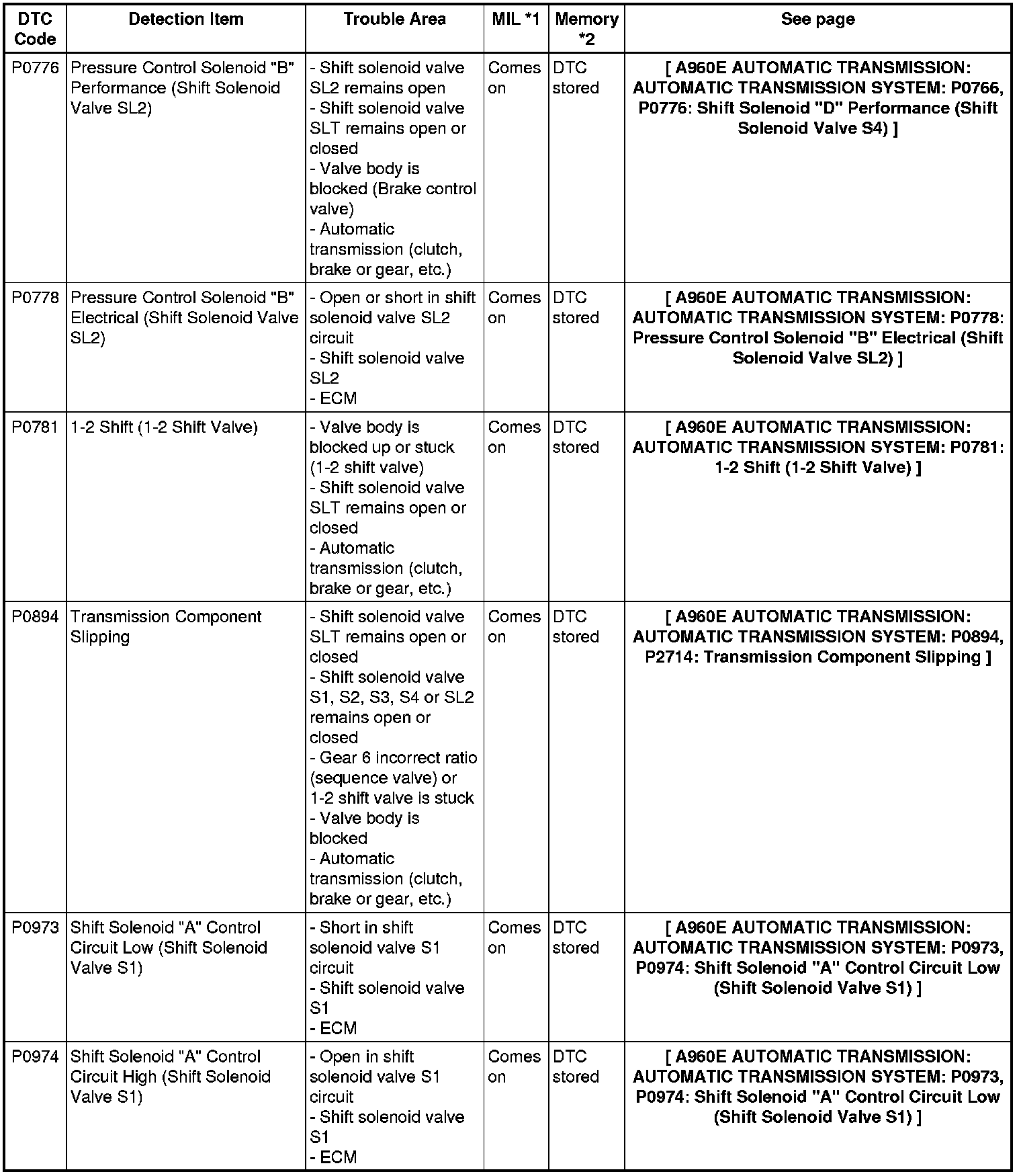

If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the page given.

HINT
* *1: Comes on MIL (Malfunction Indicator Lamp) light up
* *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
* This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
* If any of DTC P0560, P0617 or P062F is output during this DTC check, refer to Engine Control System (SFI System Diagnostic Trouble Code Chart).
