C1436

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1436: Yaw Rate Sensor Malfunction
C1436 - Yaw Rate Sensor Malfunction

DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.

The yaw rate sensor has a built-in acceleration sensor and detects the vehicle's condition using 2 circuits (GL1, GL2).

If there is trouble in the bus lines between the yaw rate and acceleration sensor and the CAN communication system, DTCs U0123 (Lost Communication with Yaw Rate Sensor Module) and U0124 (Lost Communication with Lateral Acceleration Sensor Module) are set.

These DTCs are also output when calibration has not been completed.





WIRING DIAGRAM

Refer to DTCs C1232, C1243 and C1245 C1232.

INSPECTION PROCEDURE

NOTICE:
When replacing the yaw rate and acceleration sensor, perform zero point calibration Programming and Relearning.

HINT
When DTC U0123, U0124 and/or U0126 is output together with DTC C1436, inspect and repair the trouble areas indicated by DTC U0123, U0124 and/or U0126 first Vehicle Stability Control System.

PROCEDURE

1. READ VALUE USING TECHSTREAM (YAW RATE AND ACCELERATION SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

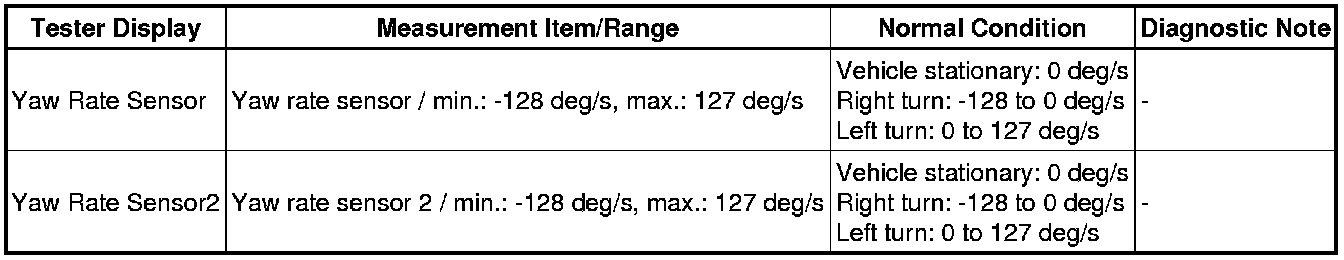

(c) Select the Data List on the Techstream Data List / Active Test.

ABS/VSC/TRAC





(d) Check that the yaw rate and acceleration sensor output value displayed on the Techstream.

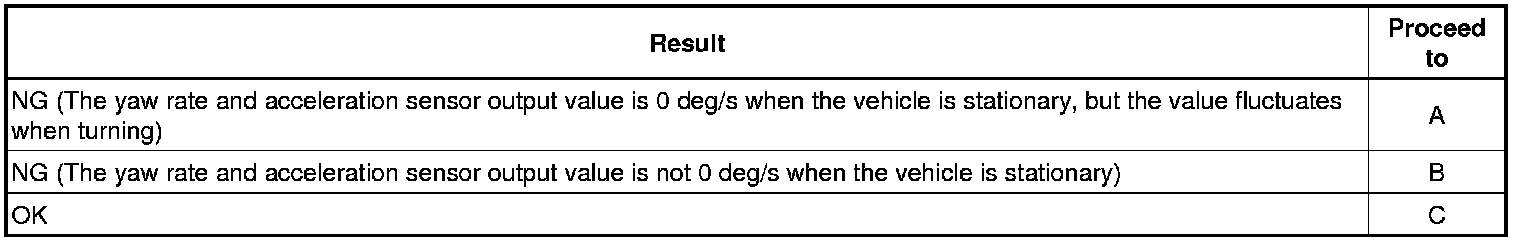

Result:





NOTICE:
Check the yaw rate and acceleration sensor signal after replacement Test Mode Procedure.

HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

B -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal

C -- CHECK FOR INTERMITTENT PROBLEMS Electronic Circuit Inspection Procedure
A -- Continue to next step.

2. CHECK YAW RATE AND ACCELERATION SENSOR INSTALLATION

(a) Turn the engine switch off.

(b) Check that the yaw rate and acceleration sensor has been installed properly Installation.

OK:

The sensor should be tightened to the specified torque.

The sensor should not be installed in a tilted position.

NOTICE:
Check the yaw rate and acceleration sensor signal after replacement Test Mode Procedure.

HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- INSTALL YAW RATE AND ACCELERATION SENSOR CORRECTLY Installation

OK -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal
