BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1425: Open in Stop Light Switch Circuit
C1425 - Open in Stop Light Switch Circuit

DESCRIPTION

The skid control ECU (housed in the actuator assembly) inputs stop light switch signals and the condition of brake operation.

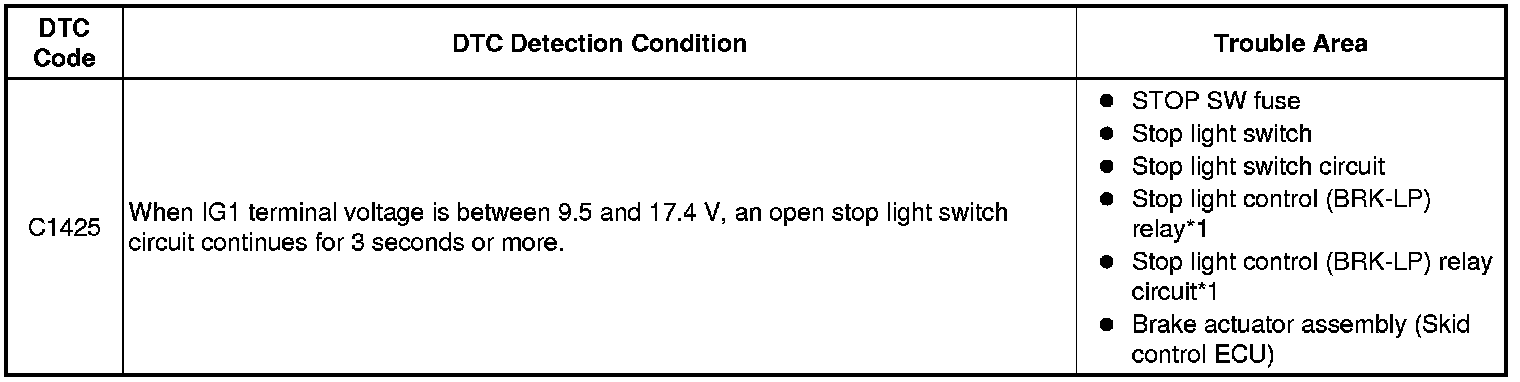

The skid control ECU has an open detection circuit, which outputs this DTC when detecting an open in the stop light input line or the ground line of the stop light circuit with the stop light switch off (brake pedal not depressed).





*1: for automatic transmission

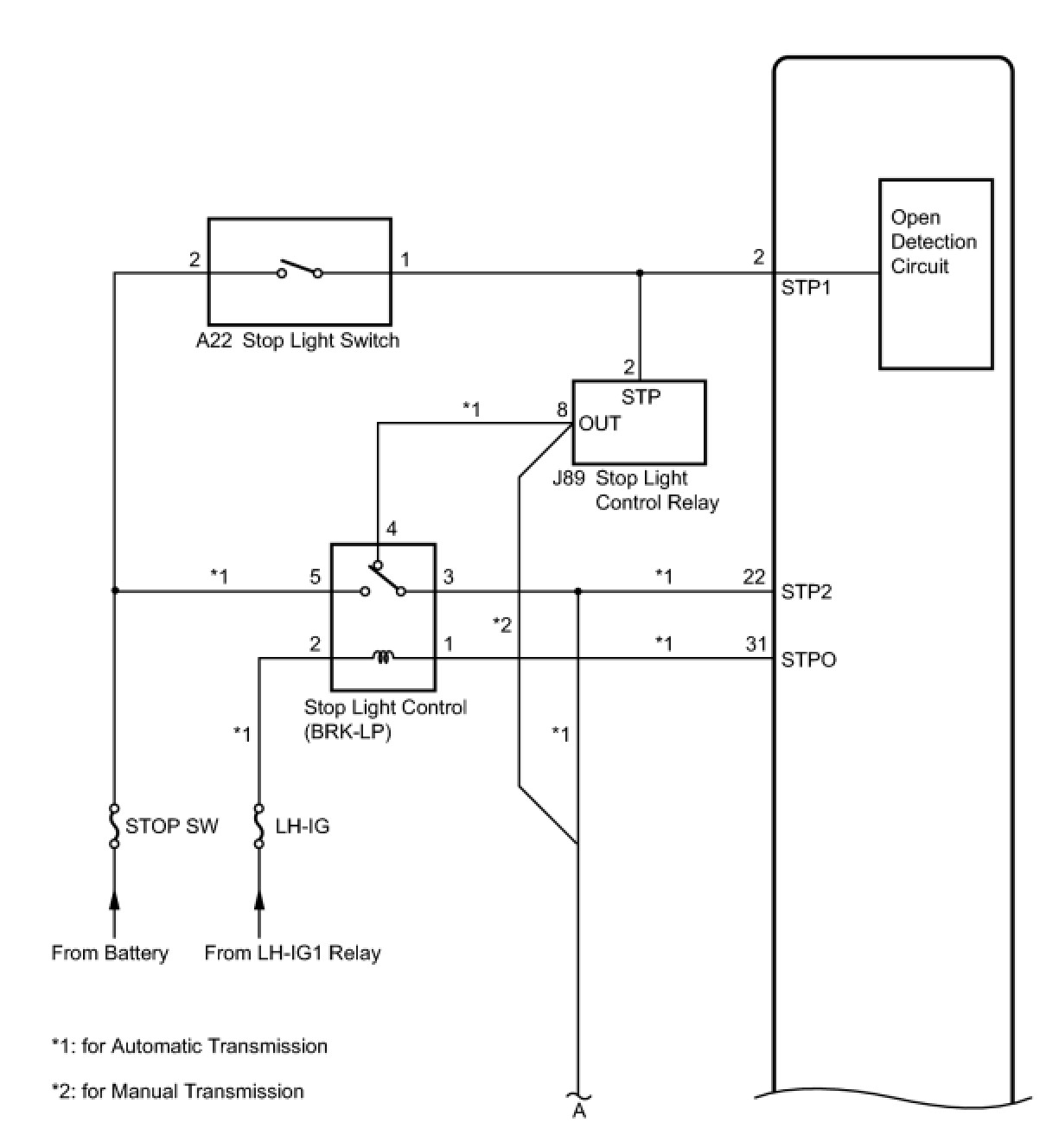

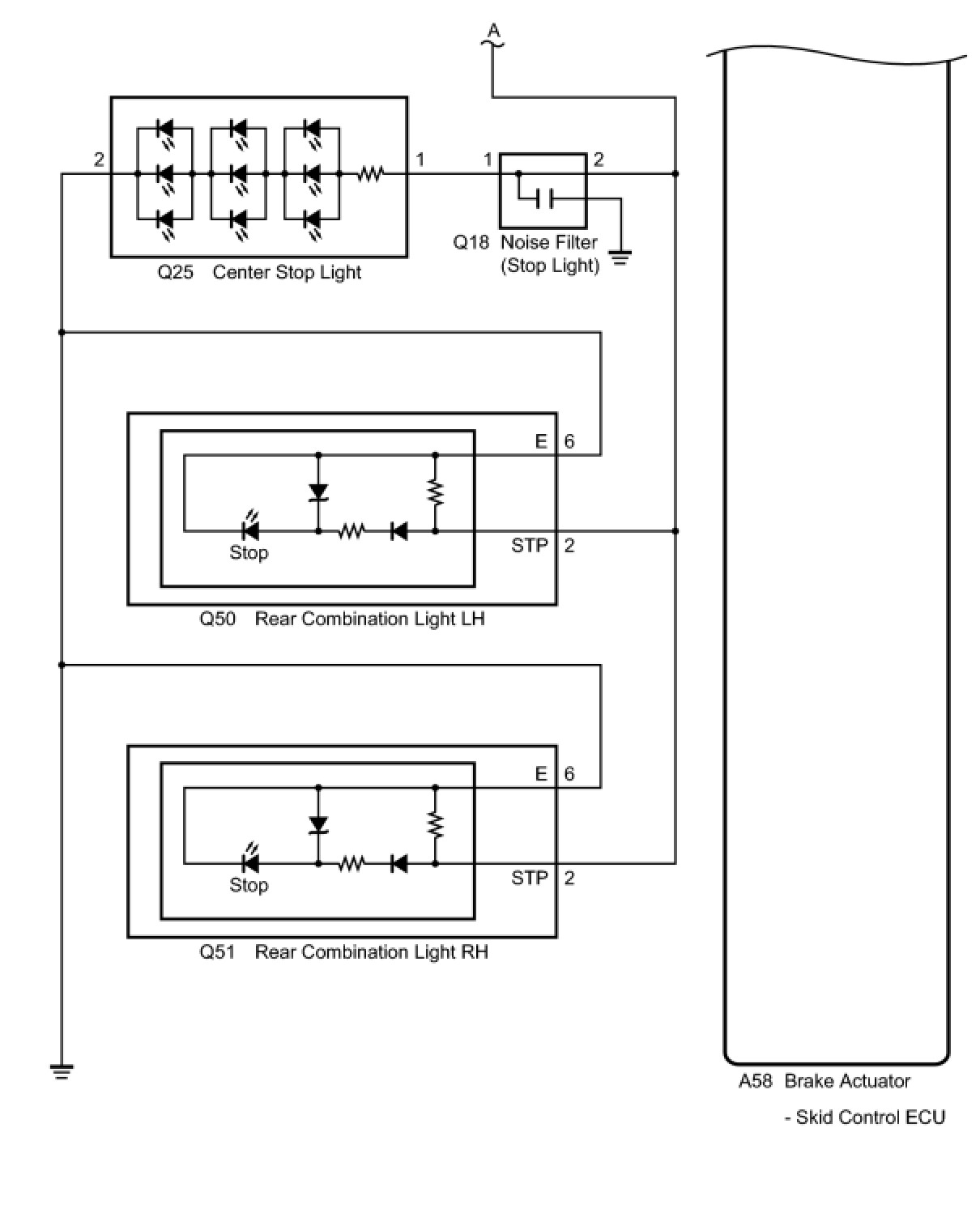

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.

PROCEDURE

1. CHECK STOP LIGHT OPERATION

(a) Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.

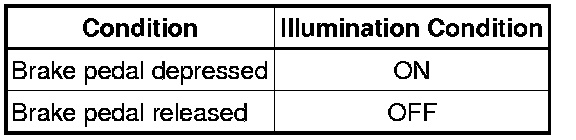

OK:





NG -- INSPECT STOP SW FUSE
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Select the Data List on the Techstream Data List / Active Test.

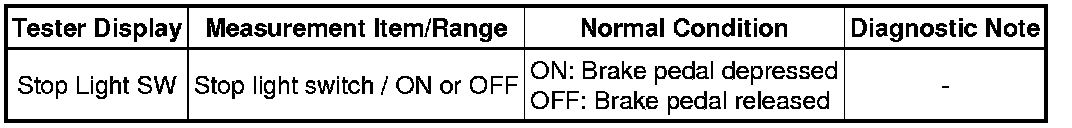

ABS/VSC/TRAC





(d) Check that the stop light switch display observed on the Techstream changes according to brake pedal operation.

OK:

The Techstream displays ON or OFF according to brake pedal operation.

NG -- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - STOP LIGHT SWITCH)
OK -- Continue to next step.

3. RECONFIRM DTC

(a) Turn the engine switch off.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Start the engine.

(d) Depress the brake pedal several times to test the stop light circuit.

(e) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

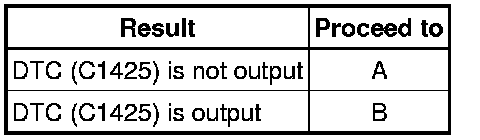

Result:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

A -- CHECK FOR INTERMITTENT PROBLEMS Electronic Circuit Inspection Procedure

4. INSPECT STOP SW FUSE

(a) Remove the STOP SW fuse from the main body ECU RH (cowl side junction block RH).





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE STOP SW FUSE
OK -- Continue to next step.

5. INSPECT STOP LIGHT SWITCH (POWER SOURCE TERMINAL)

(a) Install the STOP SW fuse.





(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

(c) Disconnect the stop light switch connector.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
OK -- Continue to next step.

6. INSPECT STOP LIGHT SWITCH

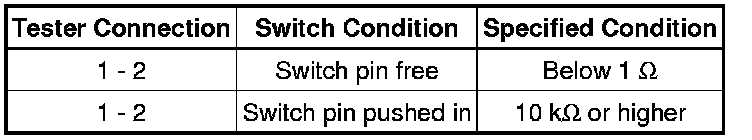

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

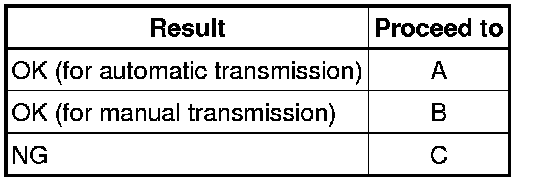

Result:





B -- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - STOP LIGHT SWITCH)

C -- REPLACE STOP LIGHT SWITCH Removal
A -- Continue to next step.

7. INSPECT STOP LIGHT CONTROL (BRK-LP) RELAY

(a) Remove the stop light control (BRK-LP) relay.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE STOP LIGHT CONTROL (BRK-LP) RELAY
OK -- Continue to next step.

8. INSPECT STOP LIGHT CONTROL RELAY

(a) Check the stop light control relay Inspection.

OK:

The stop light control relay is normal.

NG -- REPLACE STOP LIGHT CONTROL RELAY Removal
OK -- Continue to next step.

9. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - STOP LIGHT CONTROL RELAY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.





(b) Disconnect the stop light control relay connector.

(c) Measure the resistance according to the value(s) in the table below.

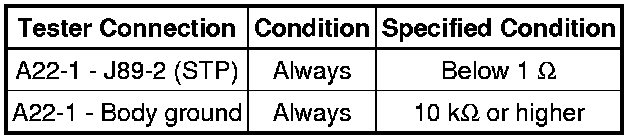

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

10. CHECK HARNESS AND CONNECTOR (STOP LIGHT CONTROL RELAY - ENGINE ROOM NO. 2 RELAY BLOCK)

(a) Measure the resistance according to the value(s) in the table below.

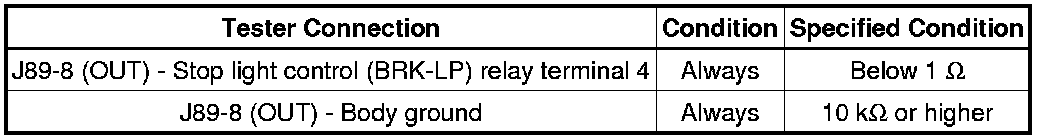

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

11. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - ENGINE ROOM NO. 2 RELAY BLOCK)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.





(b) Disconnect the skid control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

12. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Start the engine.

(c) Depress the brake pedal several times to test the stop light circuit.

(d) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

HINT
Reinstall the relay, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

Result:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

A -- INSPECT LIGHTING SYSTEM (STOP LIGHT CIRCUIT) Symptom Related Diagnostic Procedures

13. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - STOP LIGHT SWITCH)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.





(b) Disconnect the skid control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

14. RECONFIRM DTC

(a) Reconnect the skid control ECU connector and the stop light switch connector.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Start the engine.

(d) Depress the brake pedal several times to test the stop light circuit.

(e) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

Result:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

A -- INSPECT LIGHTING SYSTEM (STOP LIGHT CIRCUIT) Symptom Related Diagnostic Procedures

15. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - STOP LIGHT SWITCH)

(a) Turn the engine switch off.





(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

(c) Disconnect the skid control ECU connector and the stop light switch connector.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
