Audio and Visual System (w/ Navigation System)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System): B15E1: Media Malfunction
B15E1 - Media Malfunction

DESCRIPTION

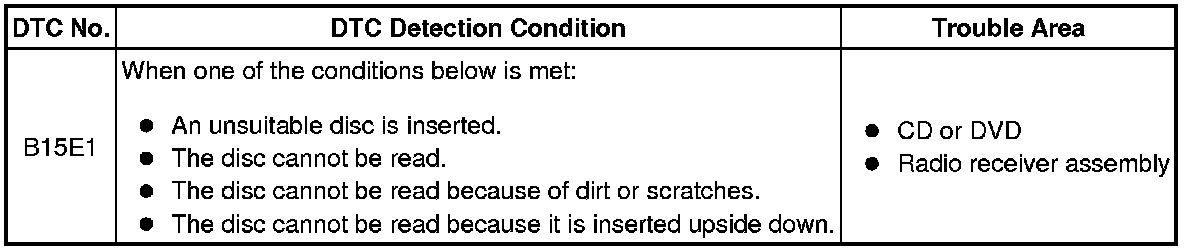

This DTC is stored when signals from disc in the radio receiver assembly cannot be read.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DISC

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc

NG -- CHANGE DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

3. REPLACE DISC WITH ANOTHER AND RECHECK

(a) Replace the disc with another and recheck.

(b) Clear the DTCs Audio and Visual System (w/ Navigation System).

(c) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTC is output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- END
