Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15B9: DVD-ROM Deck Malfunction
B15B9 - DVD-ROM Deck Malfunction

DESCRIPTION

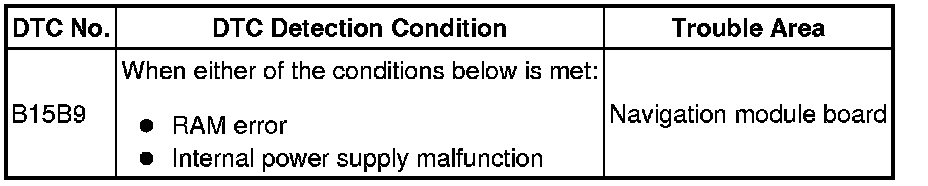

This DTC is stored when a malfunction occurs in the navigation module board.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Navigation System (for DVD).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE NAVIGATION MODULE BOARD Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
