Audio And Visual System (w/o Navigation System with Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): B15B0: Display Screen Malfunction
B15B0 - Display Screen Malfunction

DESCRIPTION

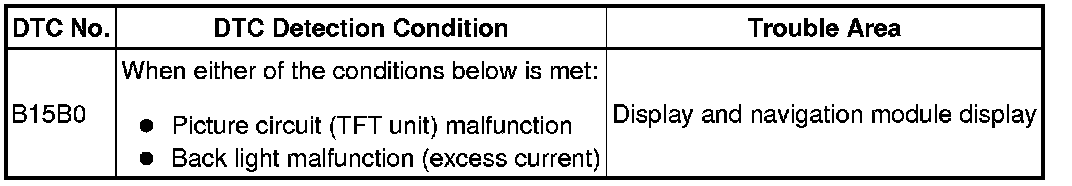

These DTCs are stored when a malfunction occurs in the display and navigation module display.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Audio And Visual System (w/o Navigation System with Multi-display).

(b) Recheck for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
