Audio and Visual System (w/ Navigation System)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System): B15A3: Stereo Component Amplifier Malfunction
B15A3 - Stereo Component Amplifier Malfunction

DESCRIPTION

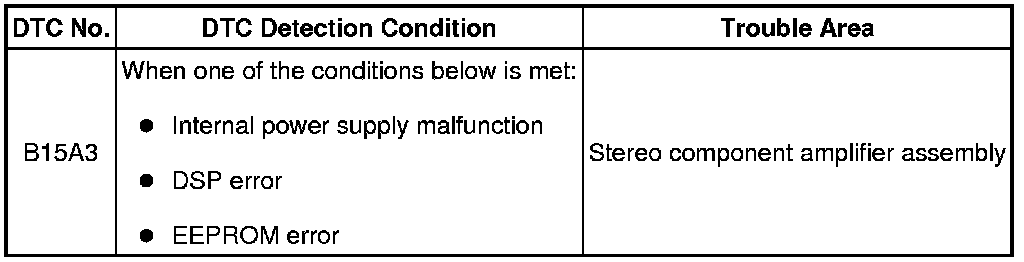

This DTC is stored when a malfunction occurs in the stereo component amplifier assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Audio and Visual System (w/ Navigation System).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTC is output.

NG -- REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
