Audio And Visual System (w/o Navigation System with Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): B1582: Map Disk Reading Malfunction
B1582 - Map Disk Reading Malfunction

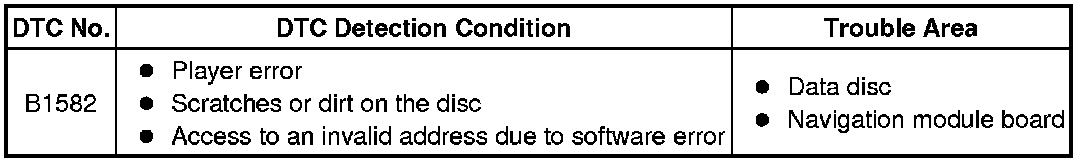

DESCRIPTION

This DTC is stored when the navigation module board cannot read the data disc.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DATA DISC

(a) Check that the data disc is not deformed or cracked.





OK:

No deformations or cracks on the data disc

NG -- REPLACE DATA DISC
OK -- Continue to next step.

2. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

3. CHECK DTC

(a) Clear the DTC Audio And Visual System (w/o Navigation System with Multi-display).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE NAVIGATION MODULE BOARD Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
