B1209

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: B1209: Driver Side Outer Mirror
B1209 - Driver Side Outer Mirror

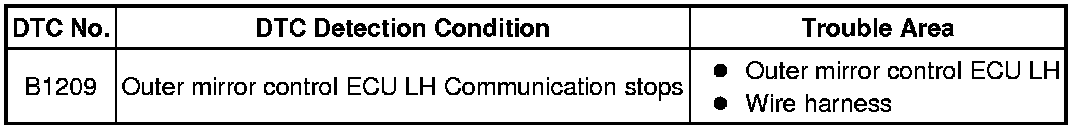

DESCRIPTION

* This DTC is detected when communication between the outer mirror control ECU LH (Driver Side Outer Mirror) and gateway ECU stops for more than 10 seconds.





WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1209, repair the "+B or GND short malfunction of communication bus" DTCs first.

PROCEDURE

1. INSPECT FUSE (FR DOOR LH)

(a) Remove the FR DOOR LH fuse from the cowl side J/B LH.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

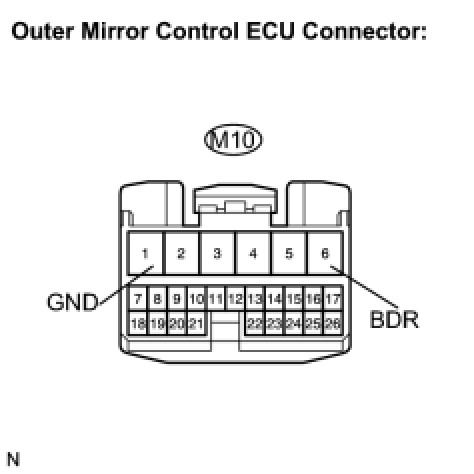

2. CHECK HARNESS AND CONNECTOR (OUTER MIRROR CONTROL ECU - BATTERY AND BODY GROUND)

(a) Disconnect the M10 ECU connector.





(b) Measure the voltage and resistance of the wire harness side connector.

Standard voltage:





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

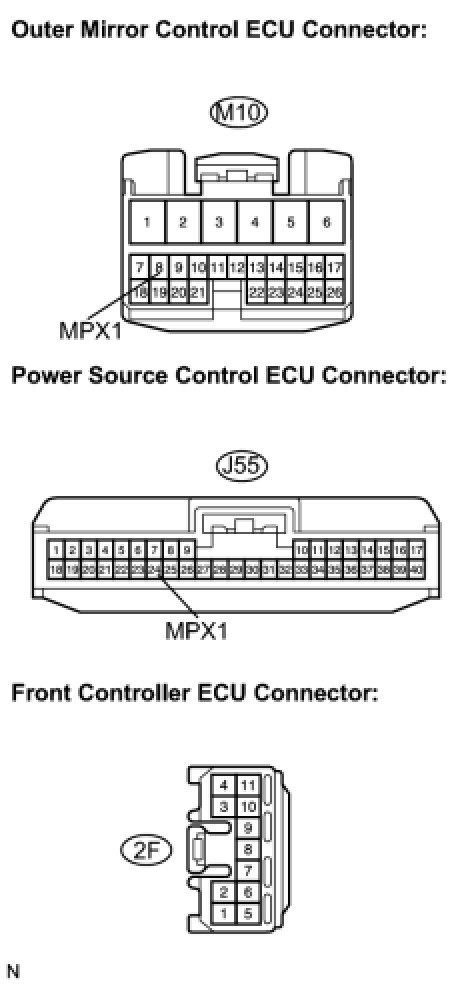

3. CHECK RESISTANCE OF COMMUNICATION LINE

(a) Disconnect the M10, J55 and 2F ECU connectors.

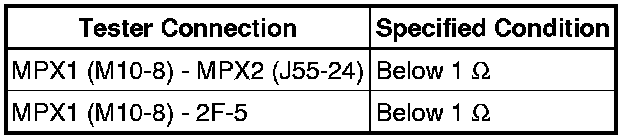

(b) Measure the resistance between the specified terminals on the wire harness side connectors.

Standard resistance:

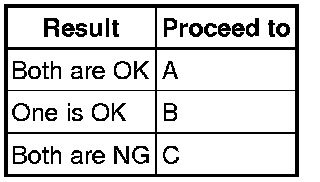

Result:





B -- REPAIR OR REPLACE HARNESS OR CONNECTOR AND REPLACE OUTER MIRROR CONTROL ECU

C -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE OUTER MIRROR CONTROL ECU
