U660E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: INSTALLATION

1. INSTALL NO. 2 SHIFT CABLE GROMMET RETAINER

(a) Pass the control cable from the cabin to the engine compartment.

(b) Install the No. 2 shift cable grommet retainer with the 2 bolts.





Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Move the shift lever to N.

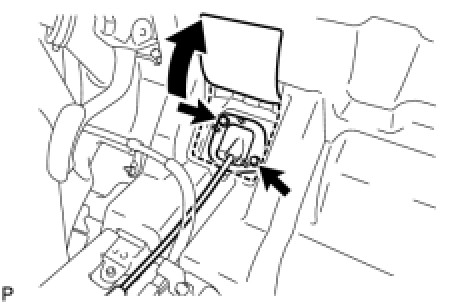

(b) Install the transmission control cable assembly as shown in the illustration.





HINT
* Install the floor shift cable with the uneven surface facing up.
* Securely engage the claws of the floor shift cable.

(c) Connect the control cable to the bracket with a new clip.





(d) Install the control cable to the control shaft lever with the nut.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

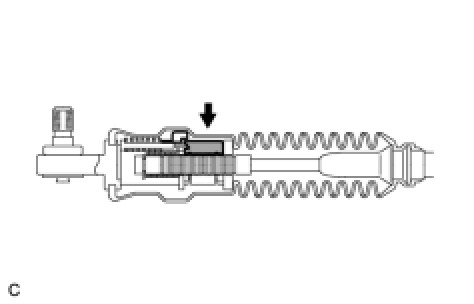

(e) Push in the lock piece of the transmission control cable.





NOTICE:
Firmly push in the lock piece until the slider lock is engaged.

HINT
After pushing in the lock piece, make sure that the boot is not deformed.

3. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Installation

4. INSTALL NO. 1 AIR CLEANER INLET Installation

5. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

6. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

7. INSTALL AIR CLEANER INLET ASSEMBLY Installation

8. INSTALL AIR CONDITIONING UNIT

HINT
Installation

9. INSTALL ENGINE ROOM SIDE COVER LH

10. INSTALL COOL AIR INTAKE DUCT SEAL Installation

11. INSPECT SHIFT LEVER POSITION Adjustments

12. ADJUST SHIFT LEVER POSITION Adjustments
