U660E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSTALLATION

1. INSTALL SPEED SENSOR

(a) Coat the 2 bolts with ATF.

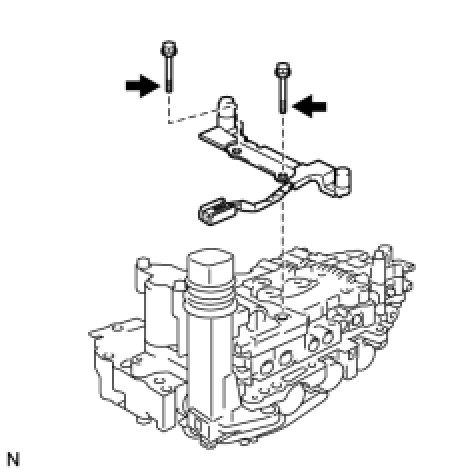

(b) Install the speed sensor to the valve body with the 2 bolts.

Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

(c) Connect the connector.

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY Installation

5. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY

HINT
