Tire Pressure Warning Select Switch

TIRE AND WHEEL: TIRE PRESSURE WARNING SELECT SWITCH: INSPECTION

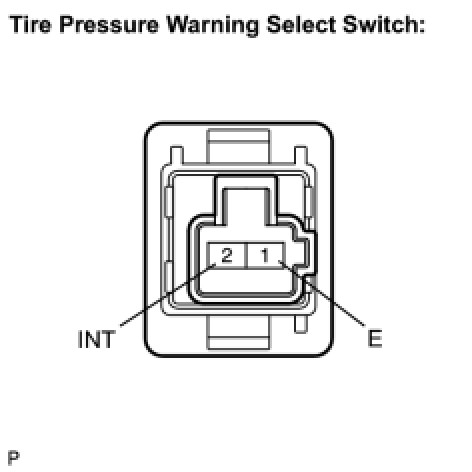

1. INSPECT TIRE PRESSURE WARNING SELECT SWITCH

(a) Remove the tire pressure warning select switch.

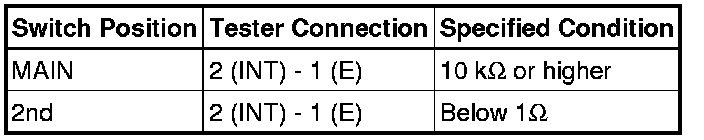

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the tire pressure warning select switch.
