BRAKE CONTROL: STEERING ANGLE SENSOR: INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

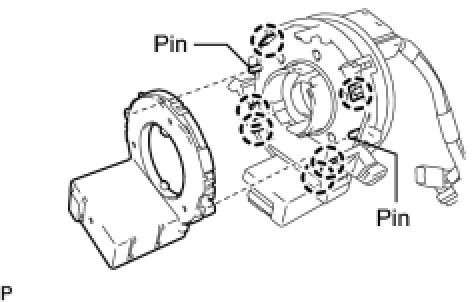

(a) Align the locating pins, engage the claws, and install the steering angle sensor to the spiral cable.





2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Installation

3. INSTALL STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY Installation

6. INSPECT STEERING WHEEL CENTER POINT

7. INSTALL STEERING PAD Installation

8. INSTALL NO. 2 LOWER STEERING WHEEL COVER Installation

9. INSTALL NO. 3 LOWER STEERING WHEEL COVER Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. INSPECT STEERING PAD Installation

12. INSPECT SRS WARNING LIGHT

HINT
Diagnosis System
