Steering Pad Switch

METER: STEERING PAD SWITCH: INSPECTION

1. INSPECT STEERING PAD SWITCH

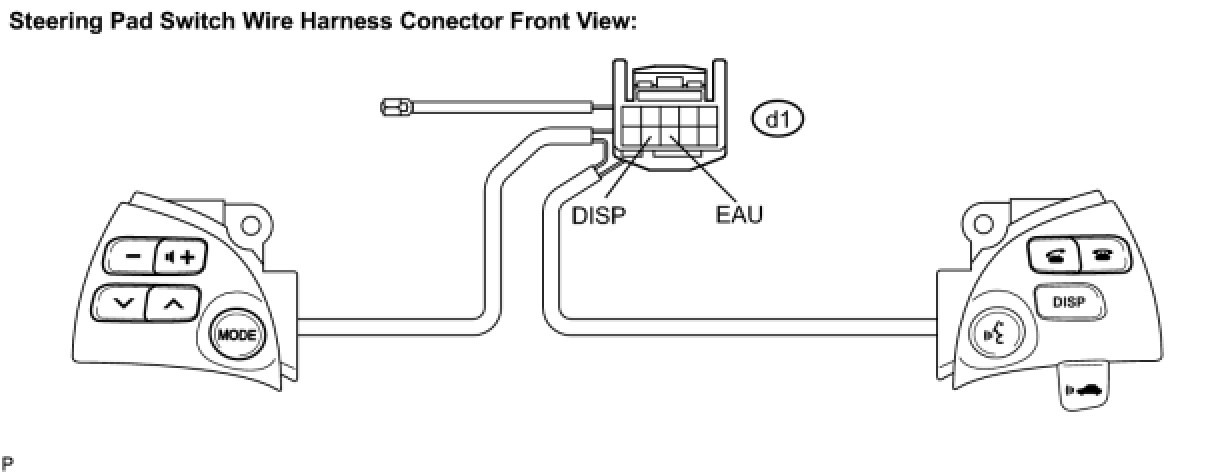

(a) Remove the steering pad switch.

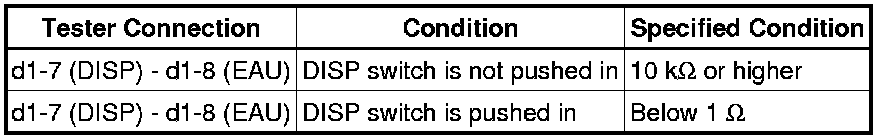

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
If the value is not as specified, replace the steering pad switch.
