Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

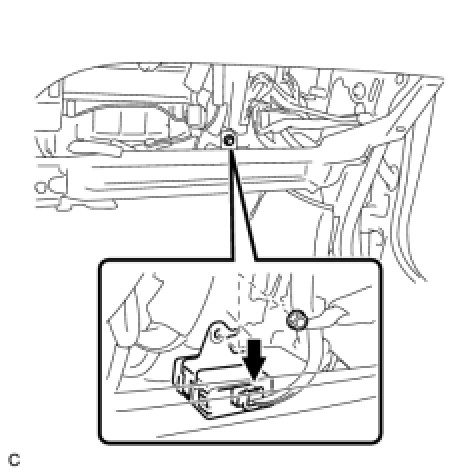

(a) Connect the connector to the tire pressure warning ECU.





(b) Install the tire pressure warning ECU with the nut.

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

2. INSTALL LOWER INSTRUMENT PANEL RH Installation

3. INSTALL PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

6. INSTALL INSTRUMENT SIDE PANEL RH Installation

7. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

8. INSTALL FRONT DOOR SCUFF PLATE RH Installation

9. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. REGISTER TRANSMITTER ID

HINT
Registration

11. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT
Test Mode Procedure

12. INITIALIZE SYSTEM

NOTICE:
* Be sure to register the transmitter IDs of all tires including the grand spare tire in the ECU before initialization.
* Be sure to inflate all tires including the grand spare tire to the proper inflation pressure before initialization.

HINT
Initialization
