Multiple Junction Connector: Locations

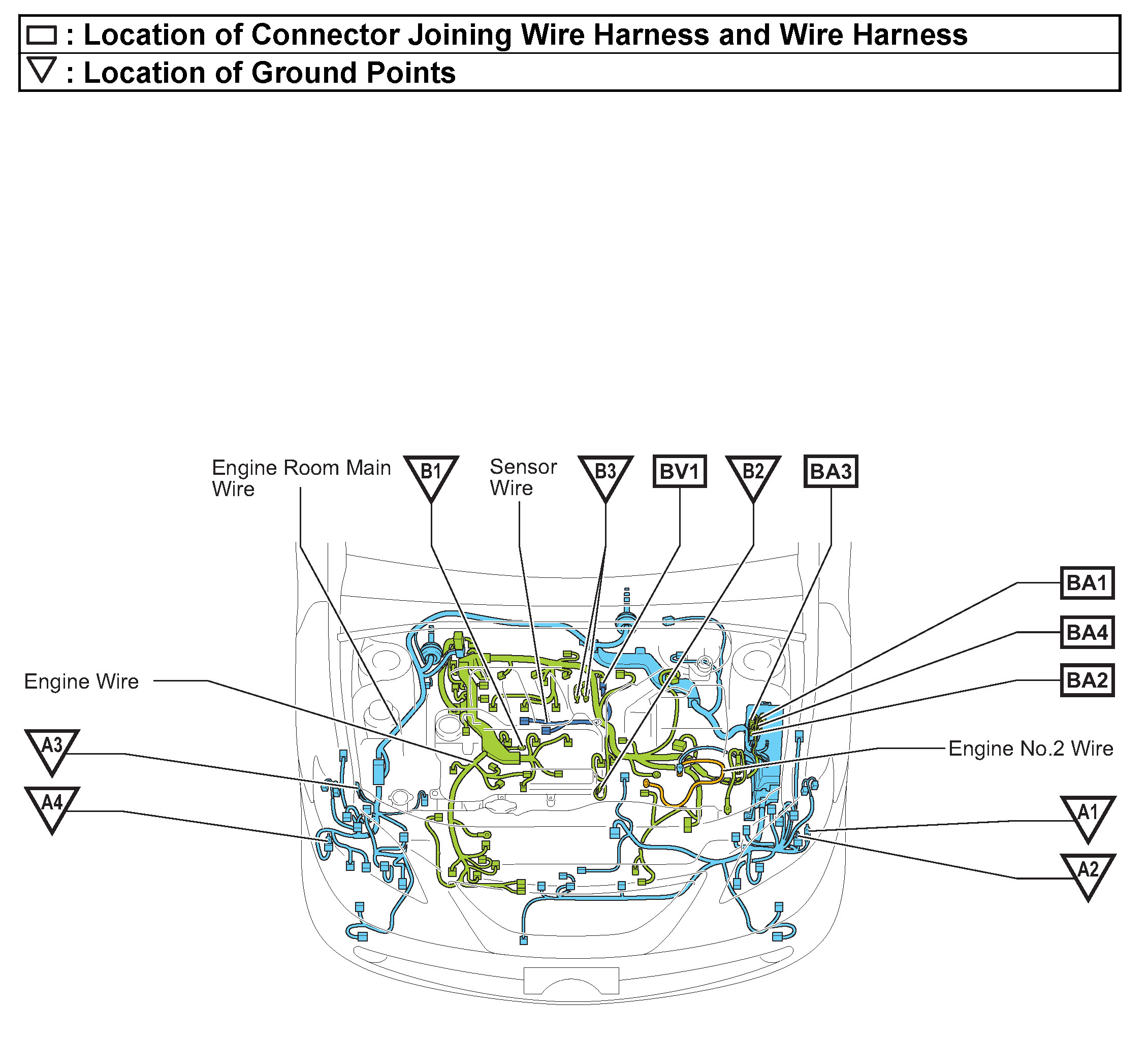

68 - BA1-BV1, A1-B3:





69 - AA1-zE1:

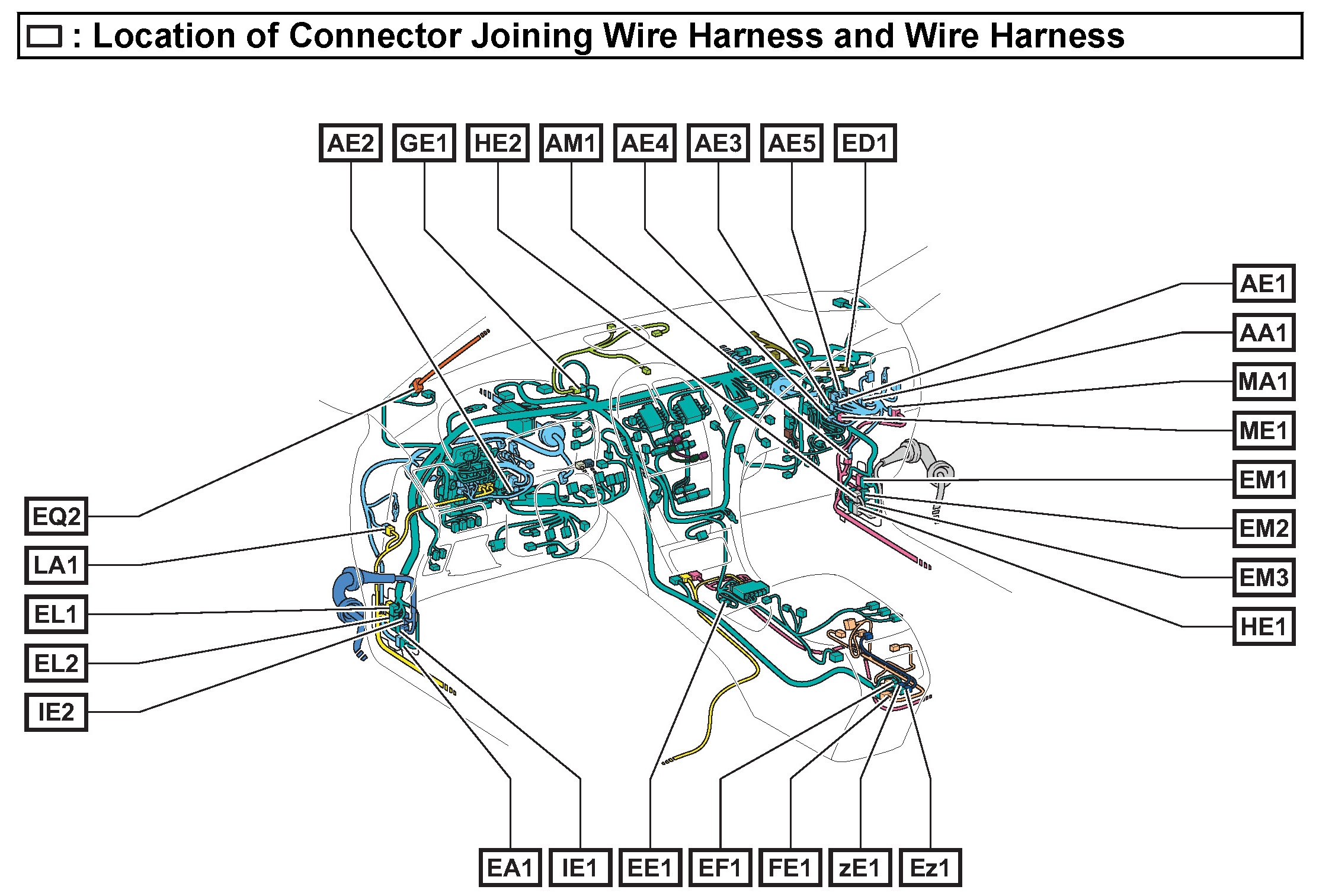

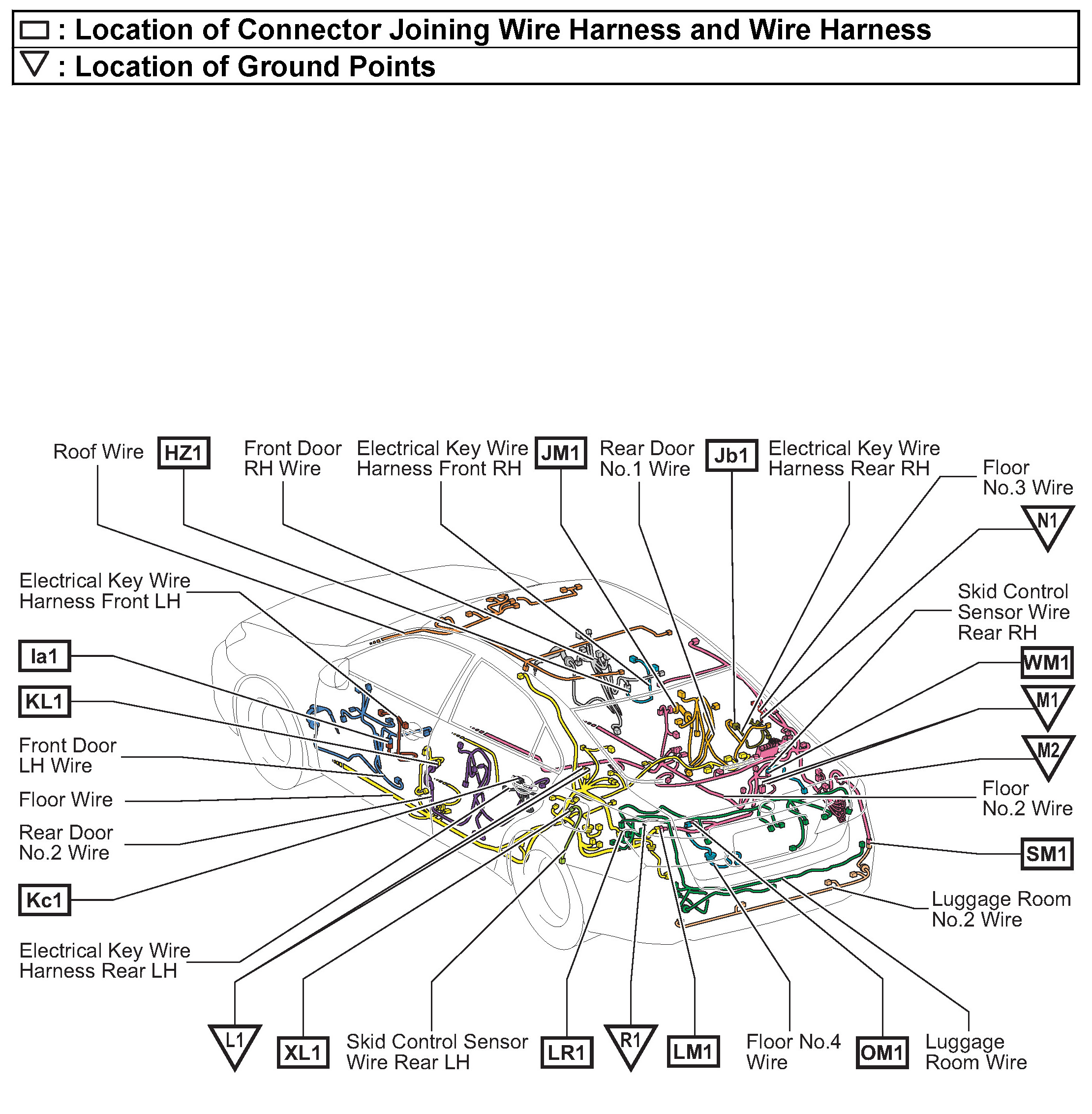

70 - HZ1-XL1, L1-R1:

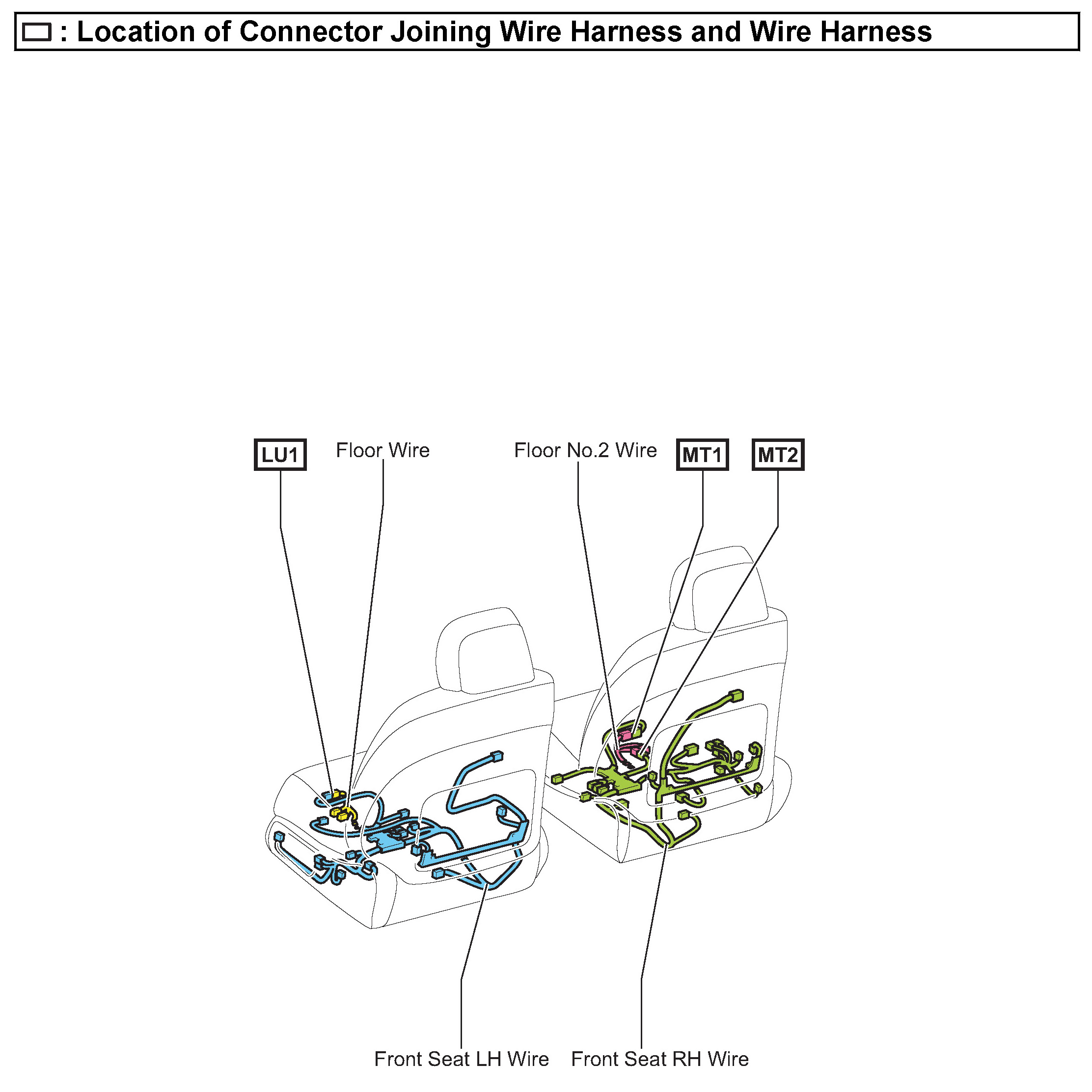

71 - LU1-MT2:
