On-Vehicle Inspection

2GR-FE ENGINE CONTROL SYSTEM: ACTIVE CONTROL ENGINE MOUNT: ON-VEHICLE INSPECTION

1. INSPECT ACTIVE ENGINE MOUNTING

(a) Inspect the active engine mounting.

(1) Connect the Techstream to DLC3.

(2) Start the engine and turn the Techstream on.

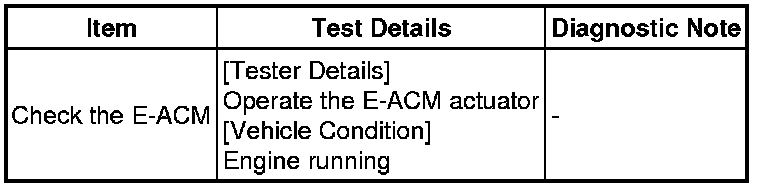

(3) Enter the following menus: "Powertrain / E-ACM / Active Test".





(4) Check if the active mount control operates.

Standard:

The active mount control operates normally.
