Installation

SEAT: POWER SEAT SWITCH: INSTALLATION

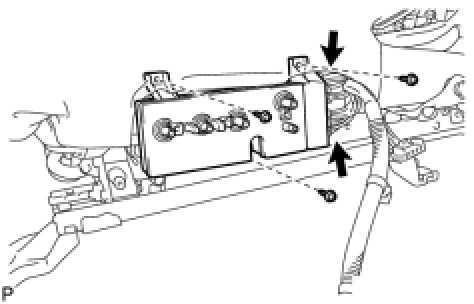

1. INSTALL FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)

(a) Install the power seat switch with the 3 screws.





(b) Connect the 2 connectors.

2. INSTALL FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)

(a) Install the power seat switch with the 3 screws.

(b) Connect the connector.

3. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY Reassembly

4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB Reassembly

5. INSTALL RECLINING POWER SEAT SWITCH KNOB Reassembly

6. INSTALL FRONT SEAT ASSEMBLY Installation

7. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER Installation

8. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER Installation

9. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER Installation

10. INSTALL FRONT SEAT INNER TRACK BRACKET COVER Installation

11. INSTALL FRONT SEAT HEADREST ASSEMBLY

12. CONNECT FRONT SEAT OUTER BELT ASSEMBLY Installation

13. INSTALL SEAT BELT ANCHOR COVER CAP Installation

14. PERFORM INITIALIZATION

NOTICE:
Some systems need initialization after reconnecting the negative battery cable Repair Instruction - Initialization

15. INSPECT FRONT SEAT ASSEMBLY Installation

16. INSPECT SRS WARNING LIGHT

Check the SRS warning light. Diagnosis System
